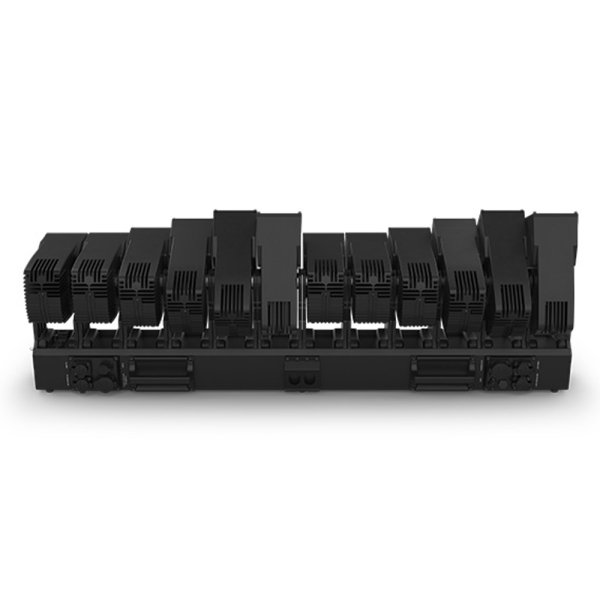

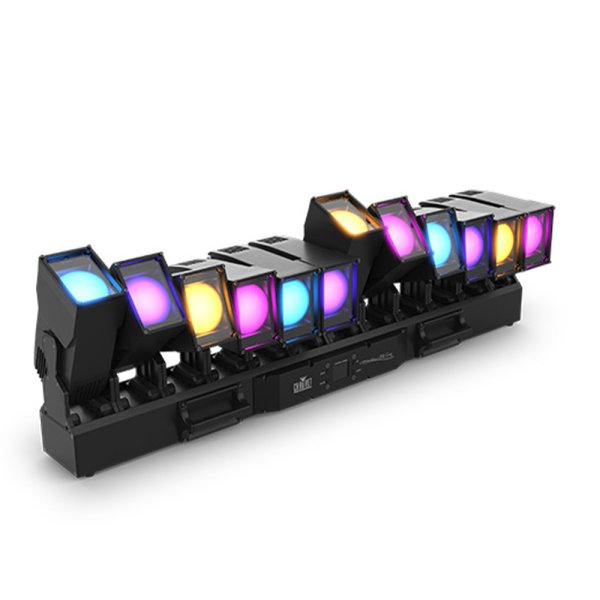

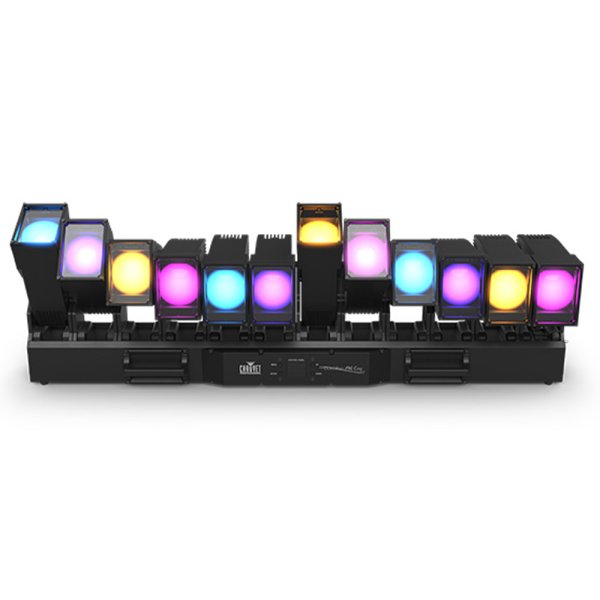

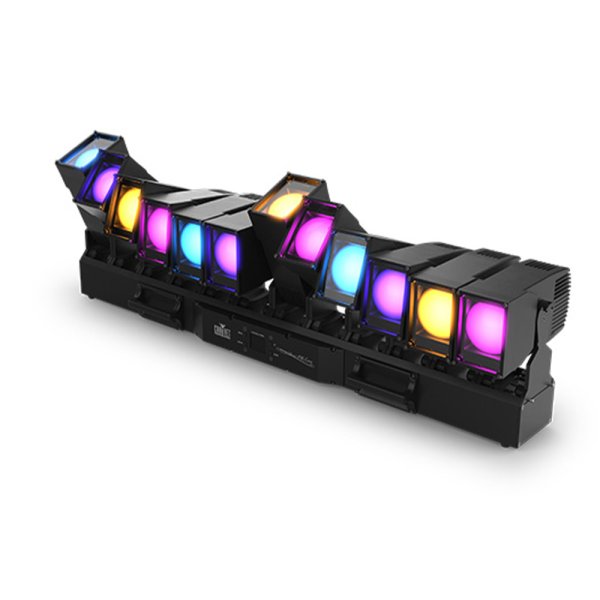

Chauvet Professional COLORado PXL CURVE 12（カラーアド PXL カーブ12）

COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.

概要

・IP65 batten with (12) 45W RGBW LEDs. (12) individually controllable tilting heads with a 5.7° to 36.3°zoom range. Maintains pixel pitch between fixtures.

・Quiet and quick operation of 200° of tilt of each if (12) heads

・Quiet and quick operation of (12) individual zoom zones

・Fully pixel mappable

・Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects

・DMX, SACN, Art-Net, and Kling-Net control for full flexibility

・RDM Enabled for remote addressing and trouble shooting

・5.7° to 36.3° zoom range for variable beam sizes

・TRUE1 compatible power input/output ports

・IP65-rated 5 pin DMX and TCP/IP input/output ports

・IP65-rated USBc software upload port

・Slotted Omega brackets for easy hanging on truss

仕様

OPTICAL
・Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
・Color Temperature (range): 2700 to 8000 K
・Beam Angle Spot: 5.7°
・Beam Angle Flood: 26.8°
・Beam Angle 50% Zoom: 13.8°
・Field Angle Spot: 9°
・Field Angle Flood: 33.9°
・Field Angle 50% Zoom: 19.2°
・Cutoff Angle Spot: 9.9°
・Cutoff Angle Flood: 36.3°
・Cutoff Angle 50% Zoom: 21.6°
・Zoom Range: 5.7° to 36.3°
・Lumens: 5,807 lm
・Illuminance (Spot) : 38,727 lux @ 5 m
・Illuminance (Flood) : 1,120 lux @ 5 m
・Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000Hz

DYNAMIC EFFECTS
・Tilt: 200°
・Tilt Range: 60°, 180°, 200°
・Dimmer: Electronic
・Shutter/Strobe: Electronic
・Strobe Rate: 0 to 20Hz
・Standalone Color Mixing: No
・Color Temperature Presets: Yes
・Dim Modes: 5
・Built-in Automated Programs: Yes
・Customizable Programs: Yes
・Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL
・Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)
・Weight: 76 lb (34.5 kg)
・Exterior Color: Black
・Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

CONNECTIONS
・Power Connection: Edison (Local) plug to Seetronic Powercon IP65
・Power Input: Seetronic Powercon IP65
・Power Output: Seetronic Powercon IP65
・Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
・Cable Length (power): 5 ft (1.5 m)

CONTROL
・Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
・DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
・Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
・sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
・Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL
・Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
・Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
・Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
・Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
・Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
・Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS
・CE, MET, UKCA, FCC
・IP Rating: IP65, temporary outdoor/wet use
・Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT'S INCLUDED
・COLORADO PXL Curve 12
・(2) Omega brackets
・Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES
・Professional Clamps
・Neutrik TRUE1 power linking cables
・5-pin DMX Cables
・Ethercon Cables
・UPLOAD 08
