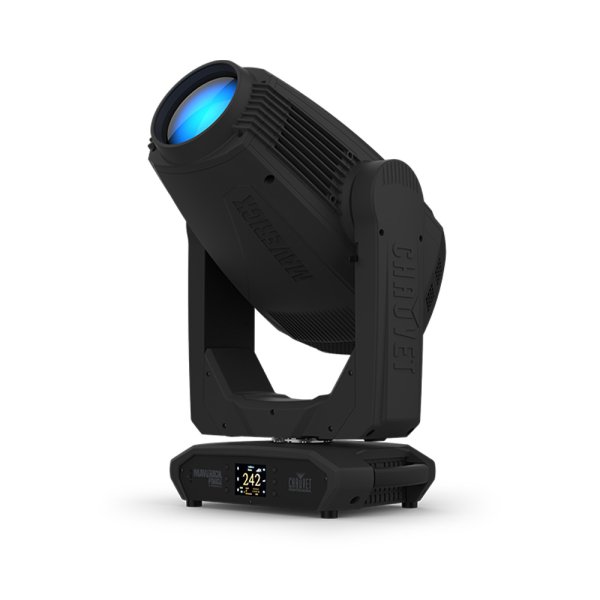

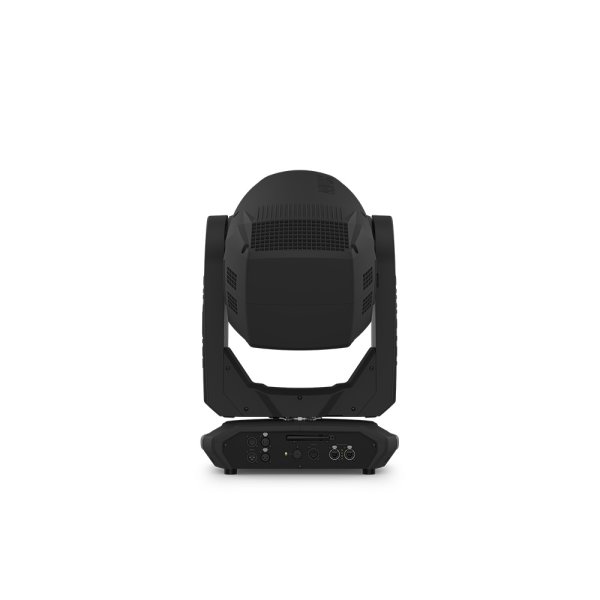

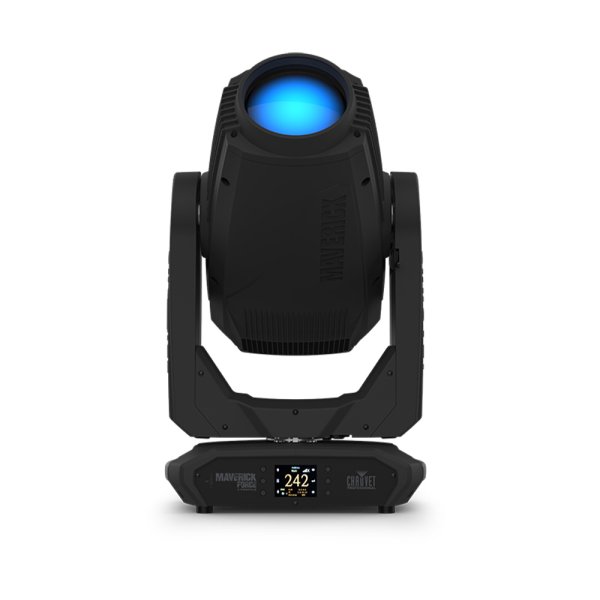

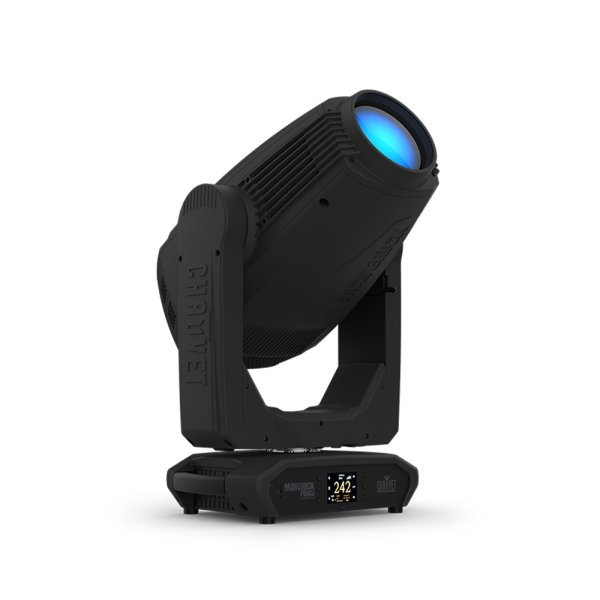

Chauvet Professional Maverick Force 3 Profile（マーベリックフォース3 プロファイル）

Maverick Force 3 Profile brings quick movement and fast effects together in a blazingly bright LED yoke profile fixture that harnesses the latest technology to deliver 40,906 lumens of output. Precision optics capture the depth of a CMY + CTO color mixing system renowned for its real reds and maintain a flat field of focus even when taking its 10:1 zoom fully wide. Color calibration and gobo selection comes matched to other Force fixtures in the rig, along with the advanced 4-blade shutter frame system and effects wheelhouse that delivers the great static, rotating, and animation effects the Force series is known for. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

概要

・Full featured 915 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, animation wheel, a 10:1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel

・16-bit dimming of master dimmer for smooth control of fades

・Variable CMY + CTO color mixing system to create a wide pallet of colors

・CRI and CTB filters on color wheel for added flexibility

・Independently layerable five facet linear and five facet round prisms for increased prism options

・One rotating and one static gobo wheel for dynamic texture possibilities

・Independent light and medium frosts for beam control

・+ or – 60 degree rotation framing shutter system to allow for better framing positioning.

・Animation wheel for enhanced visual effects

・Iris for total beam control

・DMX, WDMX, sACN, and Art-Net for full flexibility of control options

・RDM control over DMX for fixture reporting

・4.9° to 53.9° zoom angle for variable beam sizes

・Three menu presets and preset cross load for decreased shop setup time

・True 1 compatible power input

・USB slot for software uploads

・Battery backup display with auto-rotate depending on fixture orientation.

・Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost.

仕様

OPTICAL
・Light Source: 1 LEDs (CW) 915 W, (4.3 A), 7500 K, 50,000 hours life expectancy
・Color Temperature (at full): 7228 K
・CRI: 70.9
・CRI with CRI Filter: 89.4
・Front Lens Diameter: 160 mm
・Beam Angle: 4.9 ° to 42.8°
・Field Angle: 5.8° to 49.4°
・Cutoff Angle 6.5° to 53.6°
・Zoom Range: 4.9° to 53.9°
・Lumens – Source: 62,000
・Lumens – Output: 40,906
・Illuminance (4.9°) 130,582 lux @ 5 m
・Illuminance (53.9°) 3,792 lux @ 5 m
・Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
・Pan and Tilt: 540°/270°
・Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
・Colors: 6 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
・Colors: CMY flags
・Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
・Gobos (2): 9 + open glass, static, continuous scroll at variable speeds
・Gobo Size: Gobo Wheel 1 (rotating): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
・Gobo Size: Gobo Wheel 2 (static): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
・Framing Shutters: 4 blades, each with dual axis movement.
・Framing Shutter rotation: +/- 60° rotation.
・Dimmer: Electronic
・Shutter/Strobe: Electronic
・Zoom: Motorized
・Focus: Motorized
・Frost: Motorized
・Iris: Motorized
・Prism: 5 Linear Facets, motorized, rotating
・Prism: 5 Circular Facets, motorized, rotating
・Strobe Rate: 0 to 26 Hz
・Move-in-Black: Yes
・Dim Curves: 4

CONSTRUCTION / PHYSICAL
・Dimensions: 16.73 x 10.98 x 30.47 in (425 x 279 x 774 mm)
・Weight: 84.2 lb (38.2 kg)
・Exterior Color: Black
・Housing Material: High-impact flame-retardant polymer

CONNECTIONS
・Power Connection: Edison plug to Seetronic Powerkon IP65
・Power Input: Seetronic Powerkon IP65
・Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
・Cable Length (power): 5 ft (1.5 m)

CONTROL
・Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
・DMX Channels: 37 or 53
・Art-Net Channels: 37 or 53
・Modes/Personalities: 2 personalities (37, 53)

ELECTRICAL
・Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
・Power and Current: 1320 W, 11.29 A @ 120 V, 60 Hz
・Power and Current: 1270 W, 6.32 A @ 208 V, 60 Hz
・Power and Current: 1260 W, 5.76 A @ 230 V, 50 HzFuse Size: F20 A, 250 V

CERTIFICATIONS / QUALIFICATIONS
・CE, MET, FCC,UKCA
・IP Rating: IP20, dry location
・Noise Level (ambient): 37.1 dB level @ 1 m
・Noise Level (static - Full): 46.1 dB level @ 1 m
・Noise Level (static - ECO): 47.6 dB level @ 1 m
・Noise Level (Static - Auto): 55.0 dB level @ 1 m
・Noise Level (Static - Max): 58.7 dB level @ 1 m
・Noise Level (Static – TV25): 47.5 dB level @ 1 m
・Noise Level (Static – TV35): 47.4 dB level @ 1 m
・Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
・Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

WHAT'S INCLUDED
・Maverick Force 3 Profile
・Seetronic Powerkon IP65 power cord
・Omega bracket with mounting hardware

OPTIONAL ACCESSORIES
・Clamps
・Barn Doors
・Neutrik powerCON cables
・Neutrik etherCON cables
・DMX CablesFlight Cases
・CP Rack
