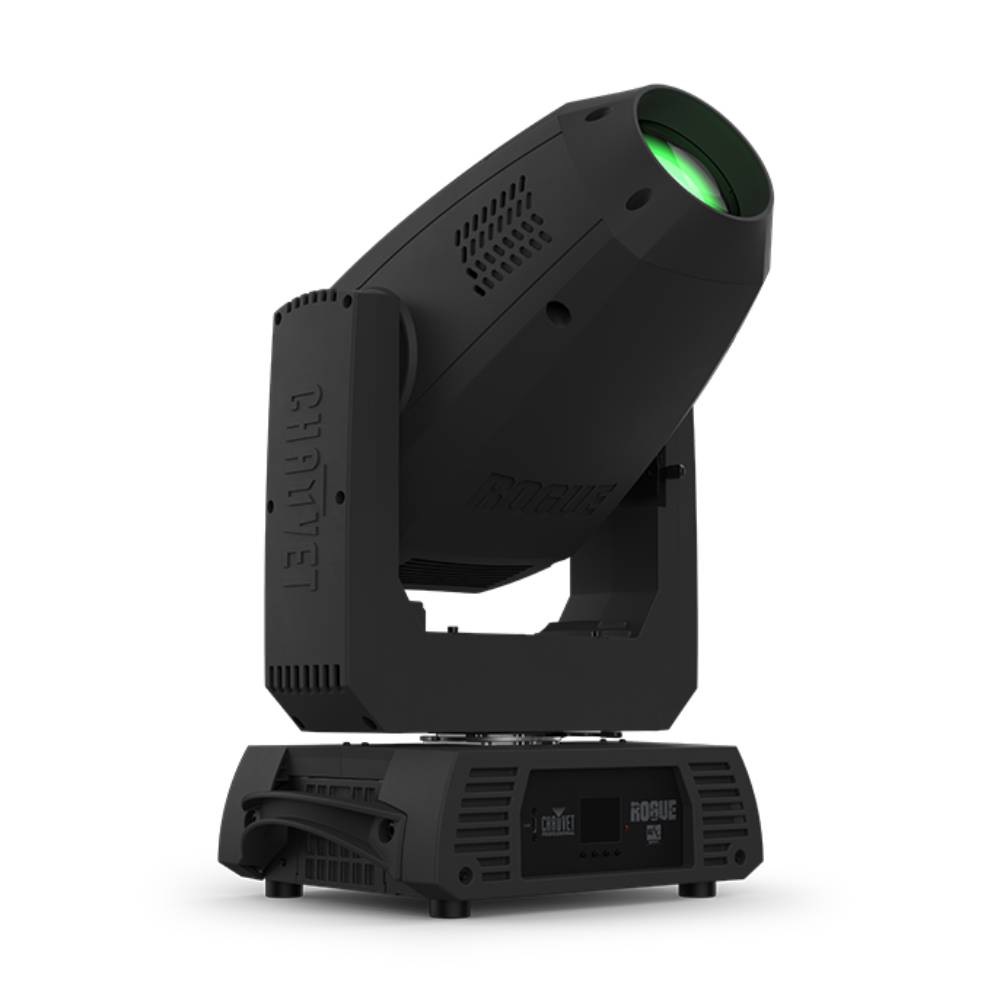

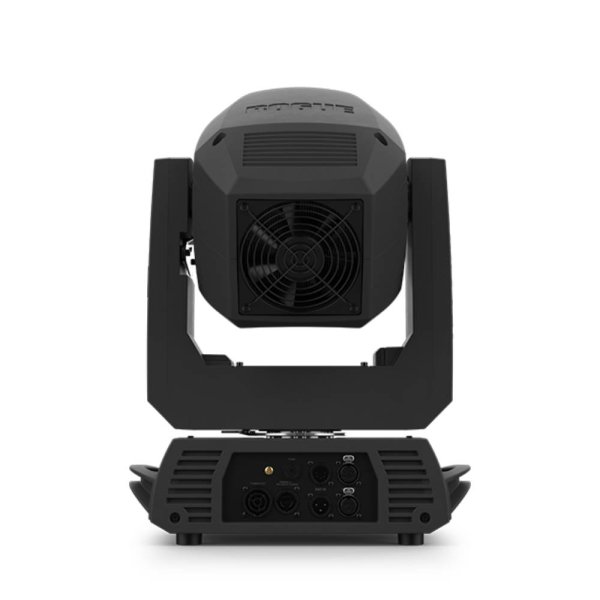

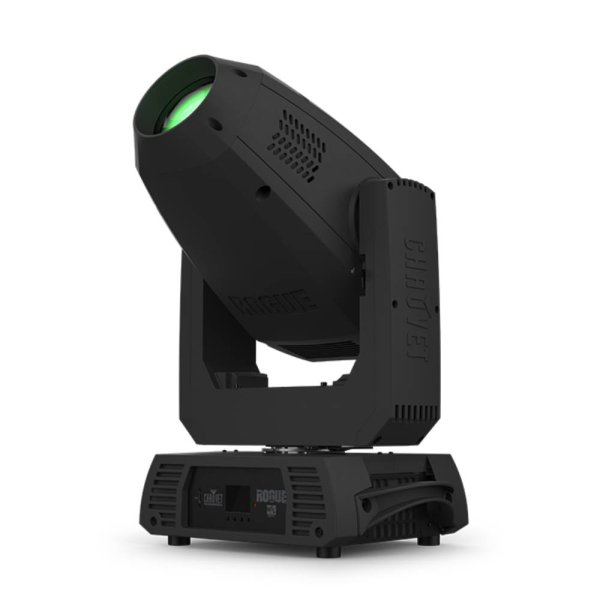

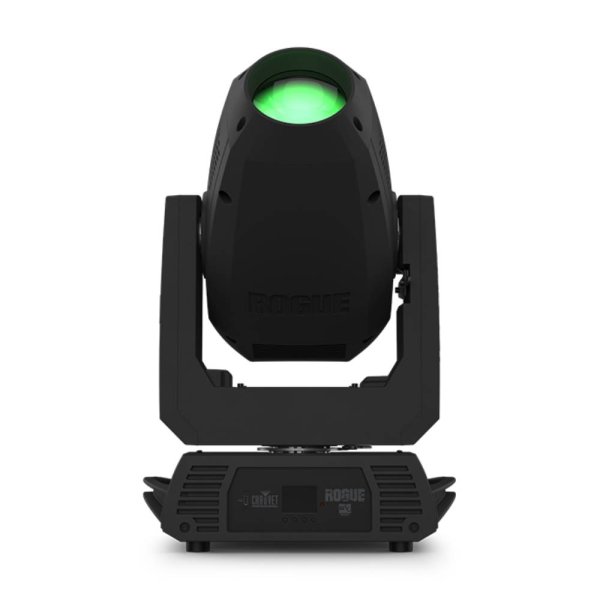

Chauvet Professional Maverick ROGUE R3E Spot（ローグ R3E Spot） [MaverickROGUER3ESpot]

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.

概要

・A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, Zoom and two color wheels.

・16-bit dimming of master dimmer for smooth control of fades

・Perfect gobo morphing between gobo wheels

・Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling

・Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel

・Iris, 3-facet prism, and frost for beam control

・8.4° to 42.8° Zoom range

・True 1 compatible power input/output connections for power linking.

・3- and 5-pin DMX input/output connections

・RDM enabled for remote addressing and trouble shooting.

・Selectable LED maximum output to match legacy Rogue R1X Spots

・Selectable PWM settings to maintain flicker-free operation on camera.

・Simple and complex DMX channel profiles for programming versatility

仕様

OPTICAL
・Light Source: 1LEDs (CW) 350 W, (5 A), 8527 K, 50,000 hours life expectancy.
・Color Temperature (at full) 8527 K
・Front lens diameter: 90mm
・CRI: 68.2
・Beam Angle: 8.4° to 33°
・Field Angle: 10.1° to 39.3°
・Cutoff Angle: 11.5° to 42.8°
・Zoom Range: 8.4° to 42.8°
・Lumens – Source: 24,500Lumens – Output: 15,705
・Illuminance (7°): 35,405 lux @ 5 m
・Illuminance (42.8°): 2,492 lux @ 5 m
・Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
・Pan and Tilt: 540°/270°
・Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
・Colors (1): 8 + white, split colors, continuous scroll at variable speeds
・Colors (2): 8 + white, split colors, continuous scroll at variable speeds
・Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
・Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
・Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 2 mm (max. thickness)Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
・Dimmer: Electronic
・Shutter/Strobe: Electronic
・Zoom: Motorized
・Focus: Motorized
・Frost: Motorized
・Iris: Motorized
・Prism: 3 Facets, motorized, rotating
・Strobe Rate: 0 to 25 Hz
・Move in Black: Yes

CONSTRUCTION / PHYSICAL
・Dimensions: 13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm)
・Weight: 34 lb (15.4 kg)
・Exterior Color: Black
・Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
・Software update: USB-C

CONNECTIONS
・Power Connection: Edison (local) plug to Seetronic Powerkon IP65
・Power Input: Seetronic Powerkon IP65
・Power Output: Seetronic Powerkon IP65
・Data Connectors: 3- and 5-pin XLR
・Cable Length (power): 5 ft (1.5 m)
・Software Connection: USB-C

CONTROL
・Control Protocol: DMX, RDM
・DMX Channels: 19 or 25
・Modes/Personalities: 2 personalities (19, 25)

ELECTRICAL
・Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
・Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240 V
・Power and Current: 535 W, 4.541 A @ 120 V, 60
・Power and Current: 522 W, 2.576 A @ 208 V, 60 Hz
・Power and Current: 523 W, 2.345 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
・CE, MET, FCC, UKCA
・IP Rating: IP20, dry location
・Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
・Rogue R3E Spot
・Seetronic PowerKon power cord
・2140D Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
・Clamps
・Neutrik powerCON cables
・Neutrik etherCON cables
・DMX Cables
・Flight Cases
