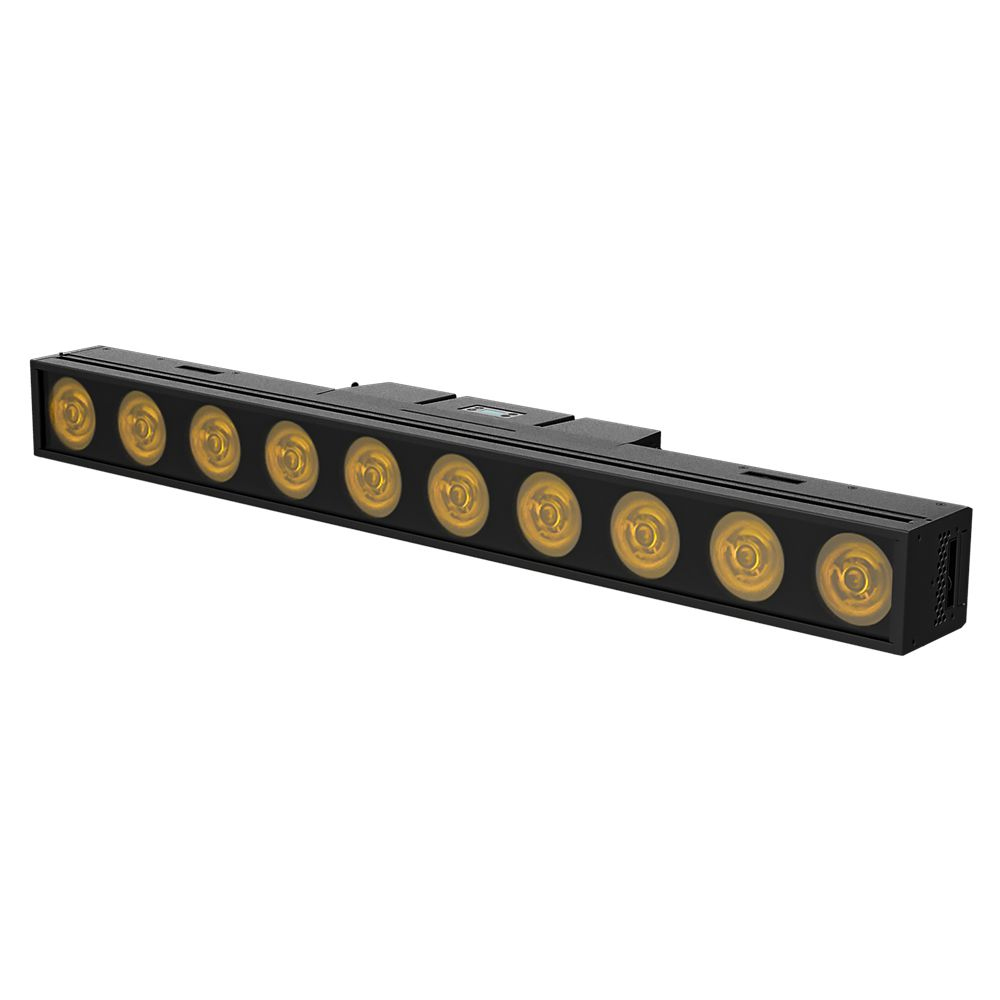

ACME BLINDER LINE 10 IP (ブラインダーライン 10 IP)

BLINDER LINE 10 IP (ブラインダーライン 10 IP)

Functional Overview

Introducing ACME's great innovation—the BLINDER LINE 10 IP: a highly versatile linear blinder light designed to elevate your lighting experience. This exceptional fixture showcases 10 high-powered 150W RGBAW LED sources, delivering mesmerizing color effects. The unit features ACME's patented Smart Glass Technology, delivering unparalleled frosted aesthetics.

What sets this fixture apart is its dynamic features, including a powerful strobe effect and a distinctive filament lamp effect, ensuring that your lighting outcomes are nothing short of captivating. The BLINDER LINE 10 IP unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 23° beam angle. The integrated interlocking connectors streamline the setup process, making it quick and effortless.

With an all-weather IP66 protection rating, this fixture is designed to withstand the element. Its comprehensive suite of advanced features ensures exceptional effects, allowing you to unleash your creativity without limitations. Elevate your lighting game with the BLINDER LINE 10 IP from ACME.


Features

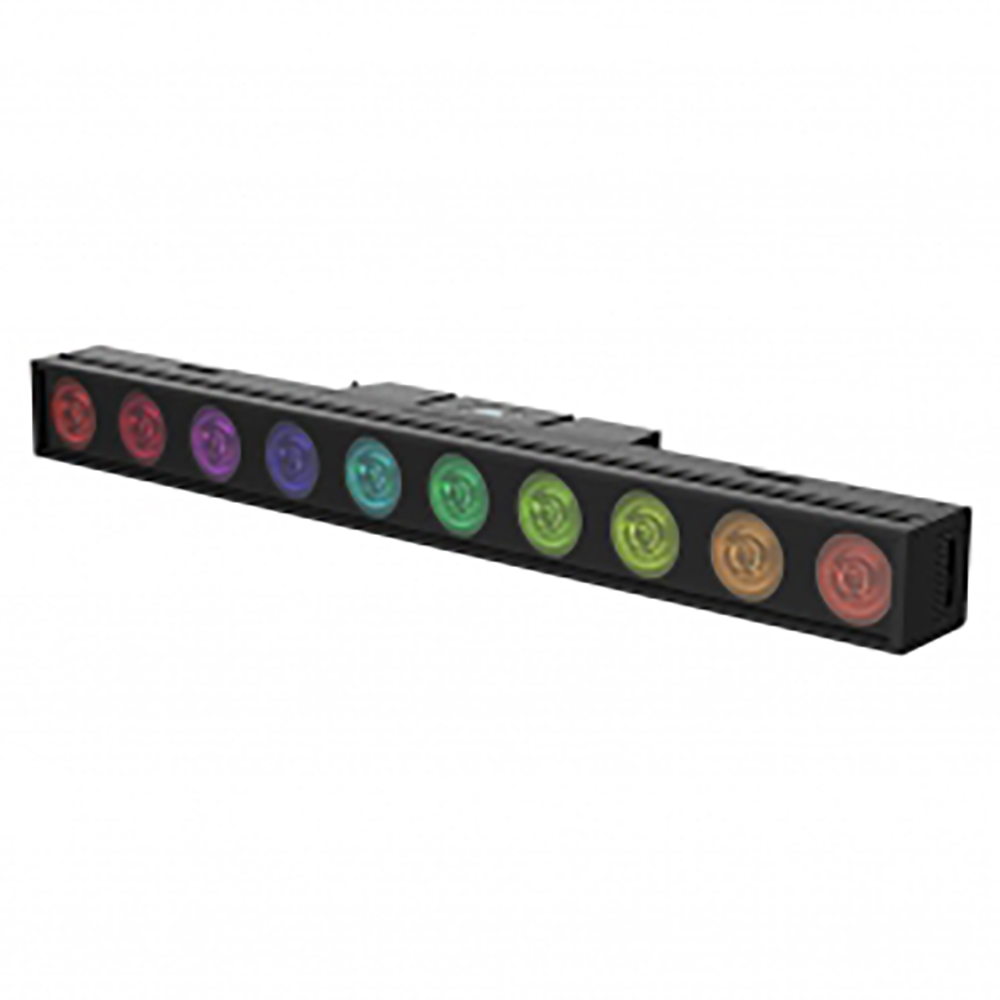

LED Engine comprised of 10, 150-Watt RGBAW LEDs
Individual pixel control and built-in color macro effects
Patented Smart Glass Technology for frost effects

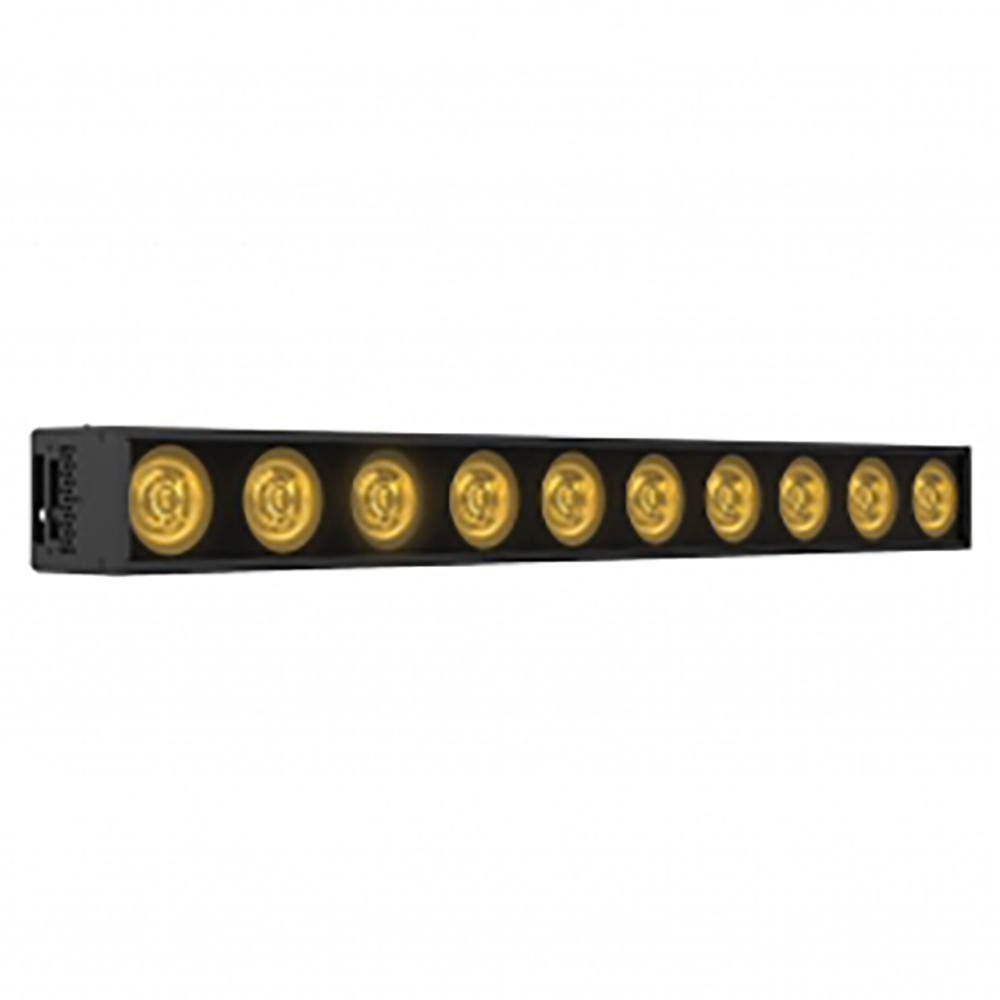

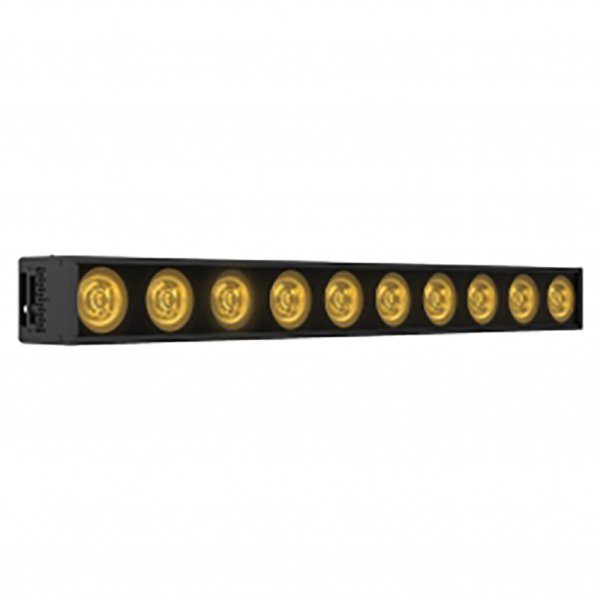

Tungsten emulation during dimming
Smooth dimming 0-100% (4 user selectable dimming curves)
Hidden, accessories-free interlocking system for combining units
IP66 rated

Model

BLB 10 IP

Light Source

Light Source: 10 x 150W RGBAW LED Engine
Life Expectancy: 20,000 hours

Optical System

Beam Angles:
23°, 31°, 54° (W)
24°, 32°, 54° (RGBA)
Field Angles:
47°, 74°, 130° (W)
49°, 79°, 131° (RGBA)

Control and Program

4-Button touch panel
Display: OLED display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol Modes: 2
Control Channels: 14/55
Firmware Upgrade: Upgrade via DMX link

Other Effects

Outstanding strobe effect
Smooth dimming 0-100% (4 user selectable dimming curves)

Electrical and Connectors

Input Voltage Range: 100-240V~ 50/60Hz
Power Consumption: 600W
Power In/Out: Waterproof Power Connector in/out
Data In/Out: 5-pin Waterproof XLR, RJ45 connector

Fixture Specification

Fixture Dimensions:
Width: 1000 mm (39.4")
Depth: 103 mm (4.0")
Height: 158.5 mm (6.2")
Weight: 13.6 kg (30 lbs)
Flight Case Dimensions:
Width: 1220 mm (48.0")
Depth: 610 mm (24.0")
Height: 850 mm (33.5")
Weight: 184 kg (405.6 lbs)(includes flight case, eight fixtures per flight case)
Carton Dimensions:
Width: 1105 mm (43.5")
Depth: 285 mm (11.2")
Height: 200 mm (7.9")
Weight: 16 kg (35.3 lbs)(includes carton, one per carton)

Work environment

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

Approvals

CE compliant
UKCA compliant
cETLus compliant

Installation

Horizontal or vertical mounting
Universal working position

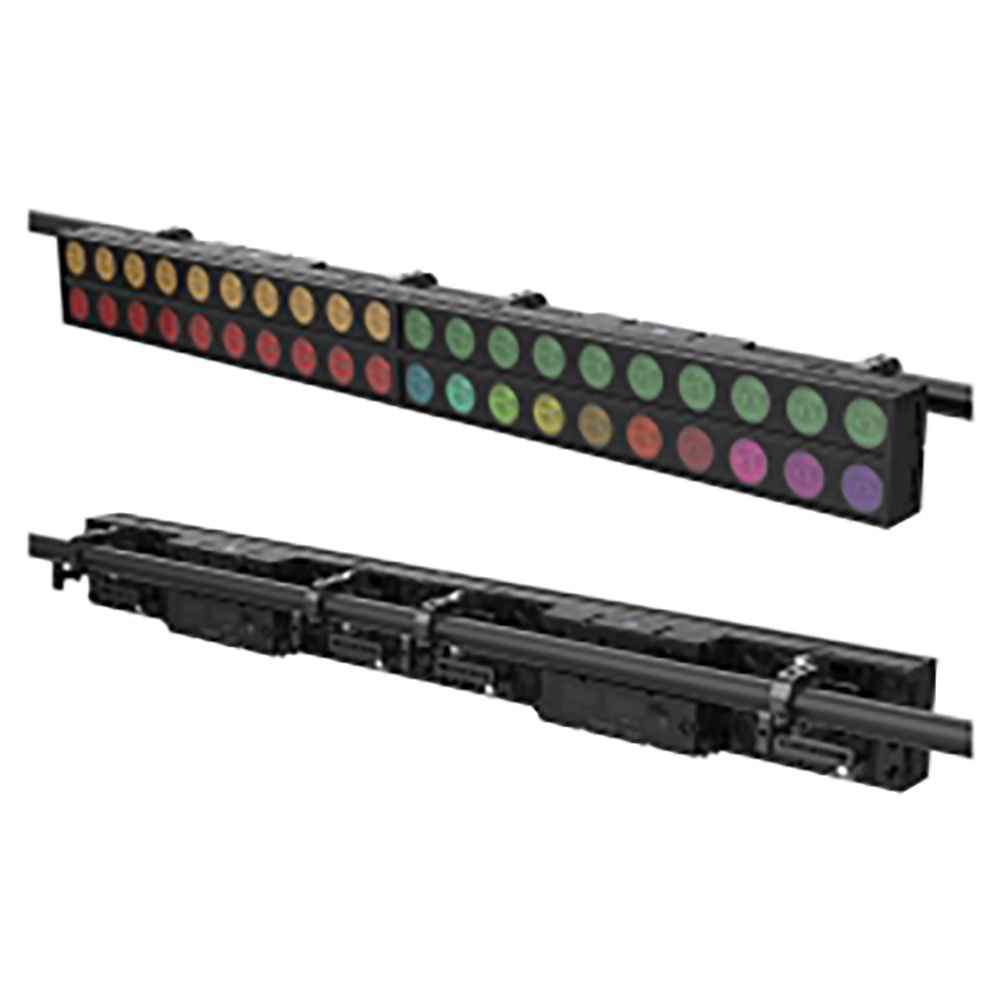

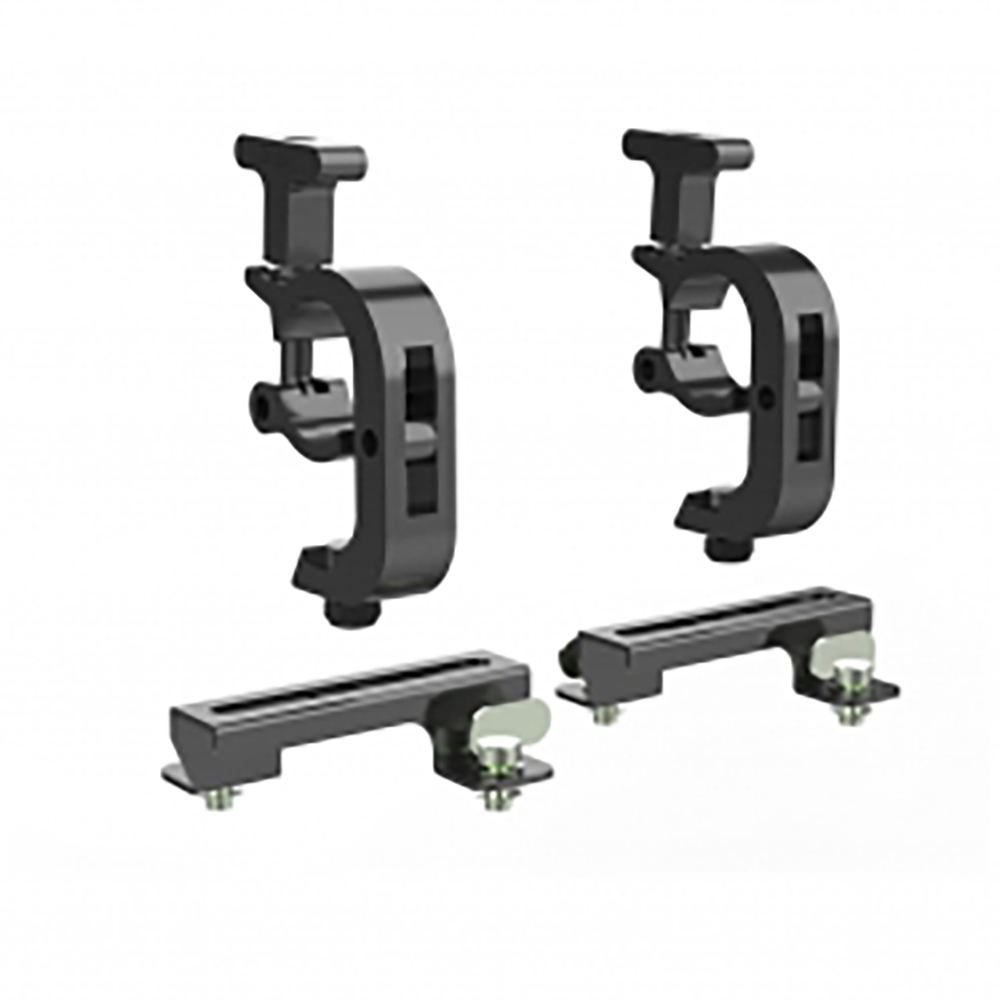

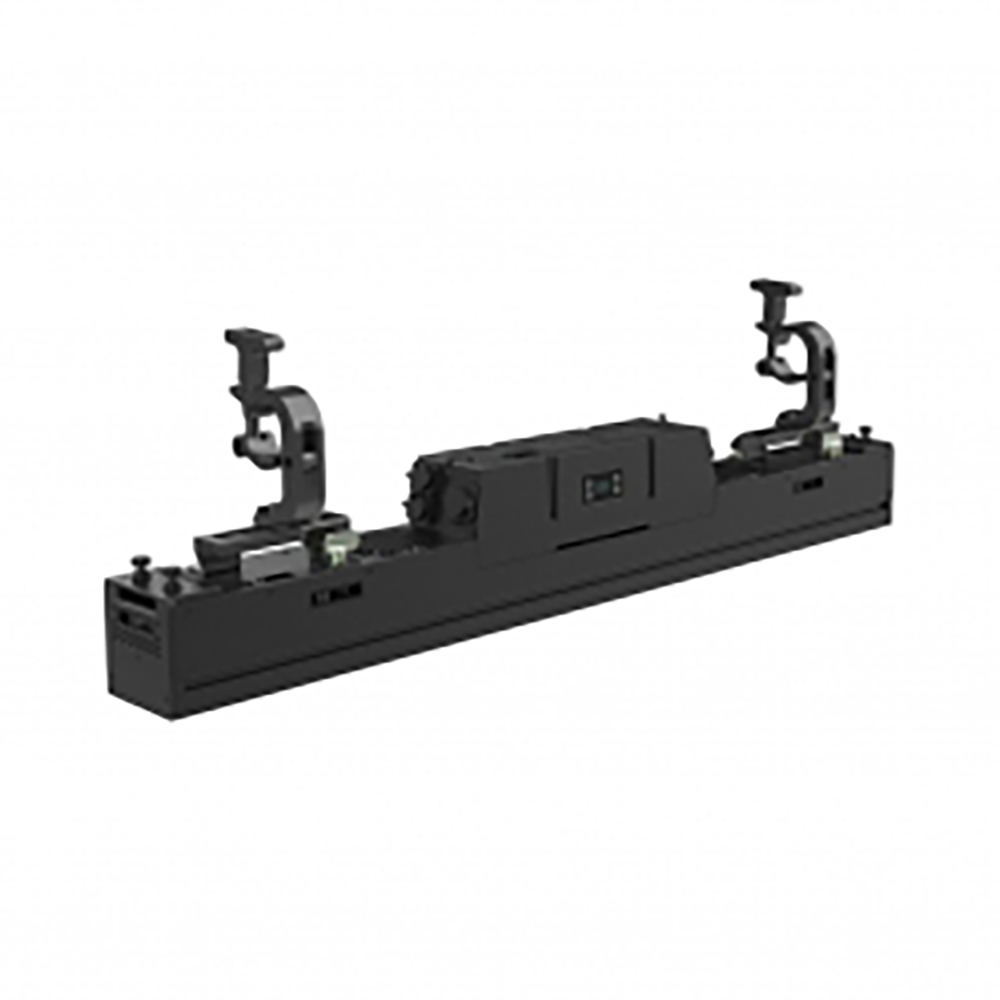

Horizontal: Utilizing two omega brackets (supplied) and clamps (by others), a maximum of 5 fixtures may be connected

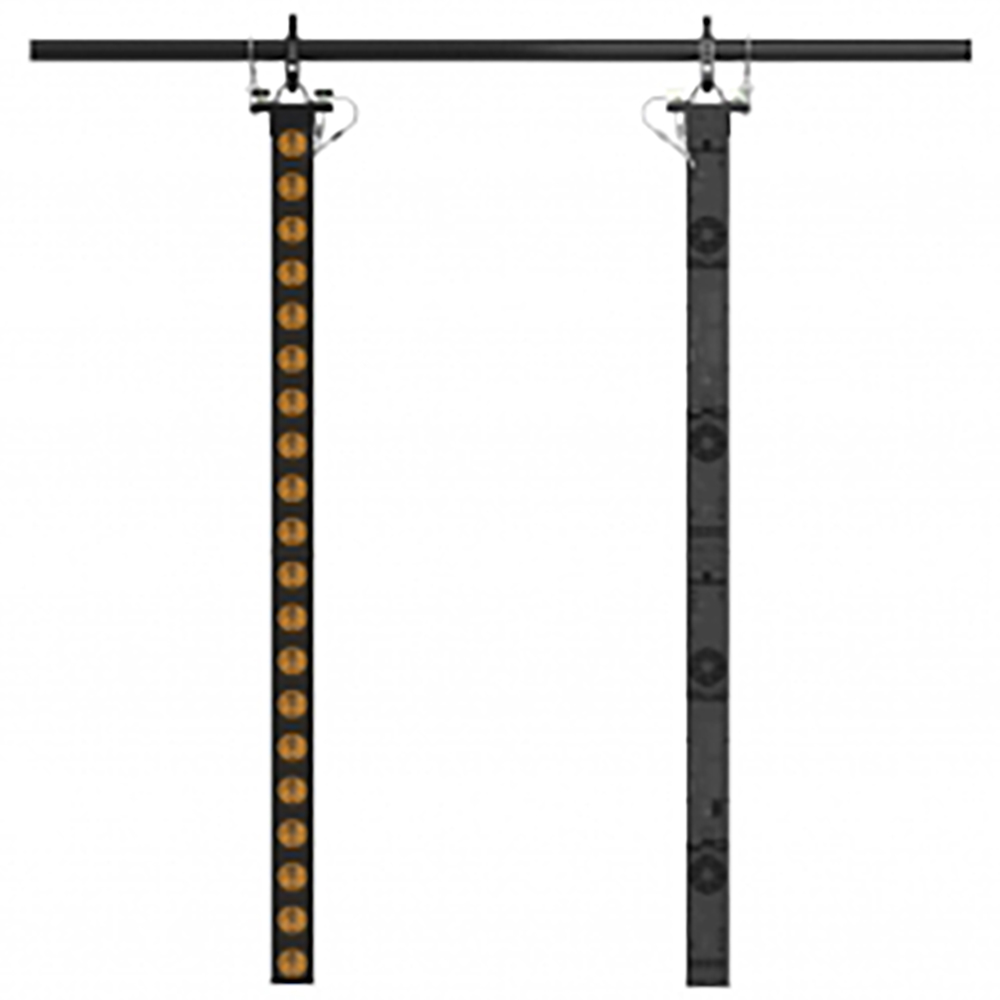

Vertical: Using one hanging bracket (sold separately) with clamp (by others), a maximum of 3 fixtures may be connected

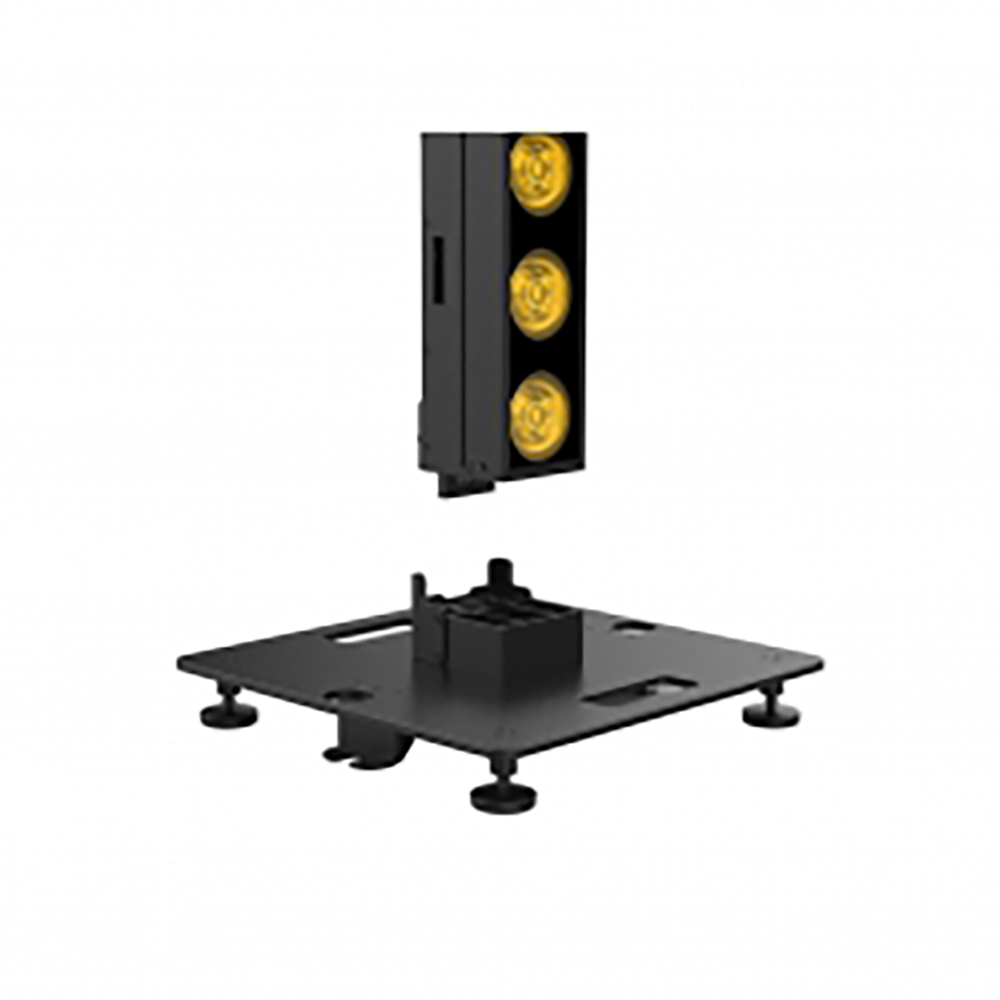

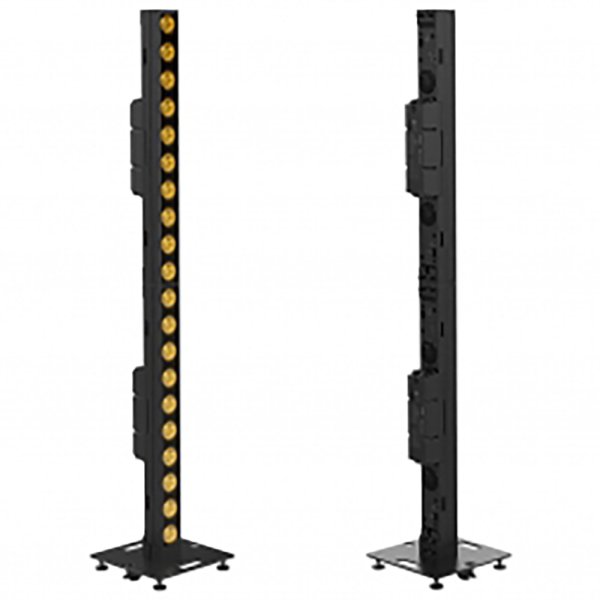

Vertical Stand: Mounted to floor stand (sold separately), stand single unit vertically, no other fixtures may be connected

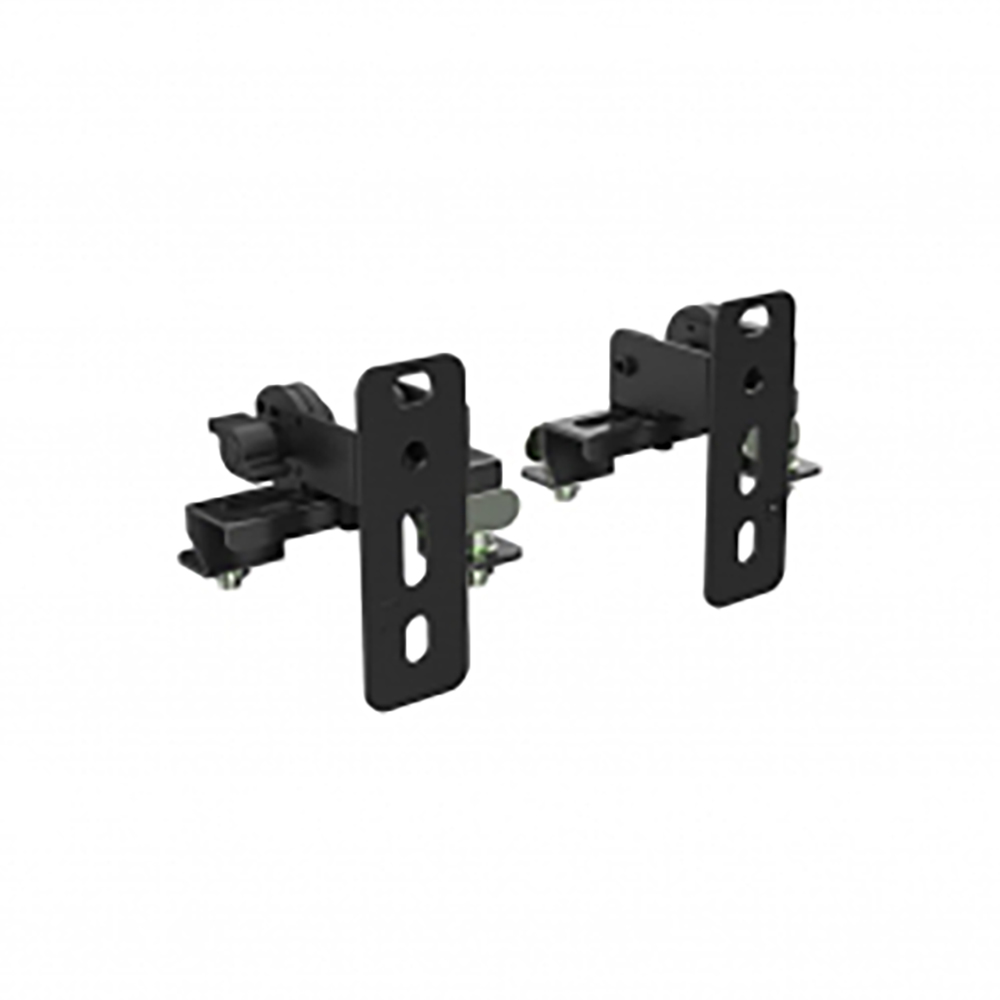

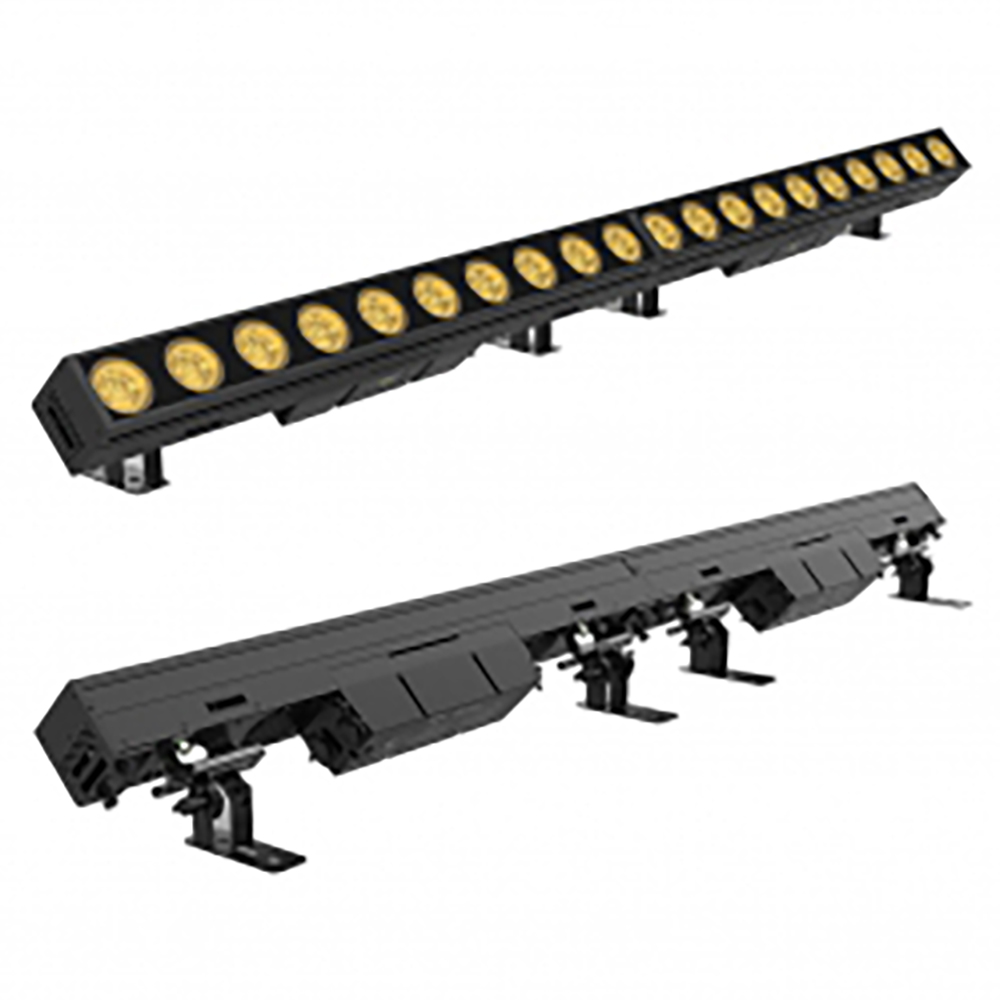

Floor: Two floor brackets (sold separately) may be attached to base of unit
Safety rope hole

Included Items

Digital User Manual
Power Cable
2 x omega brackets

Optional Accessories (with item code)

Eight Hole Flight Case: 3205096028
Four Hole Flight Case: 3205001345

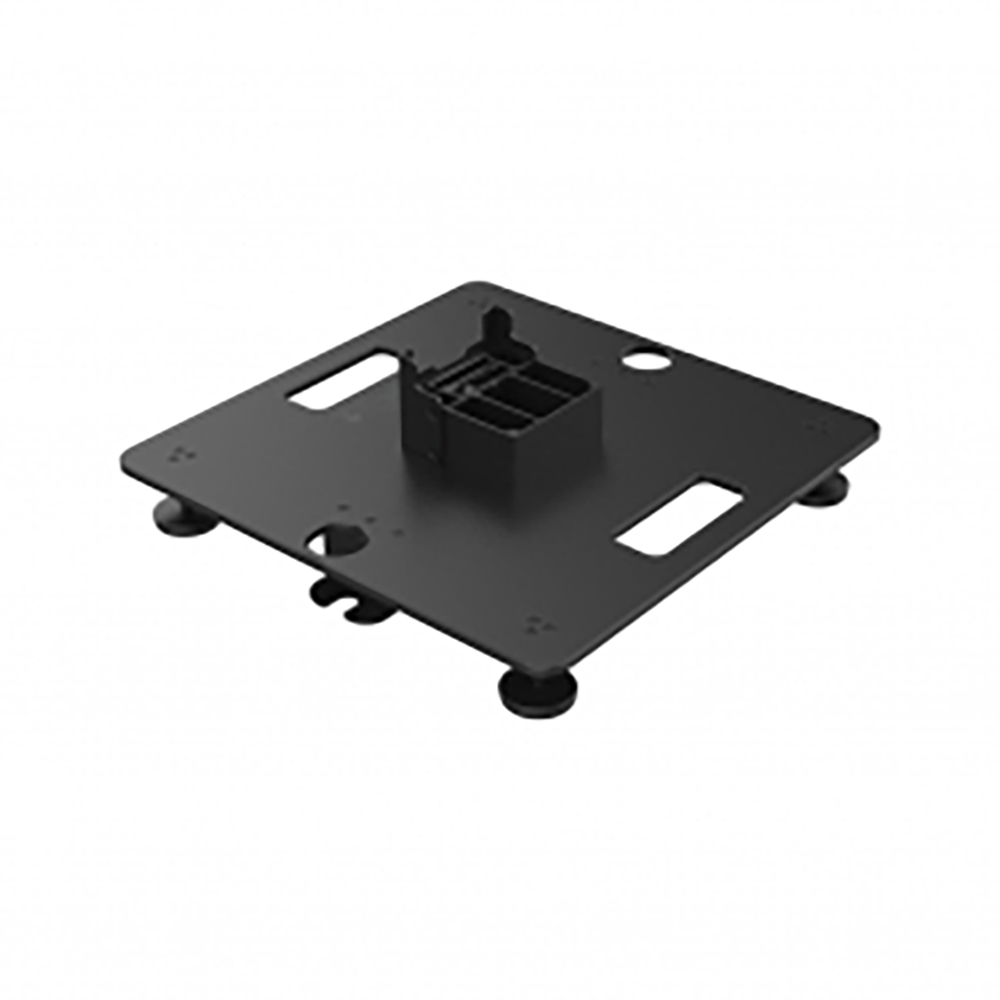

BLB Base Stand: 63582785
BLB Foot Stand: 63582981

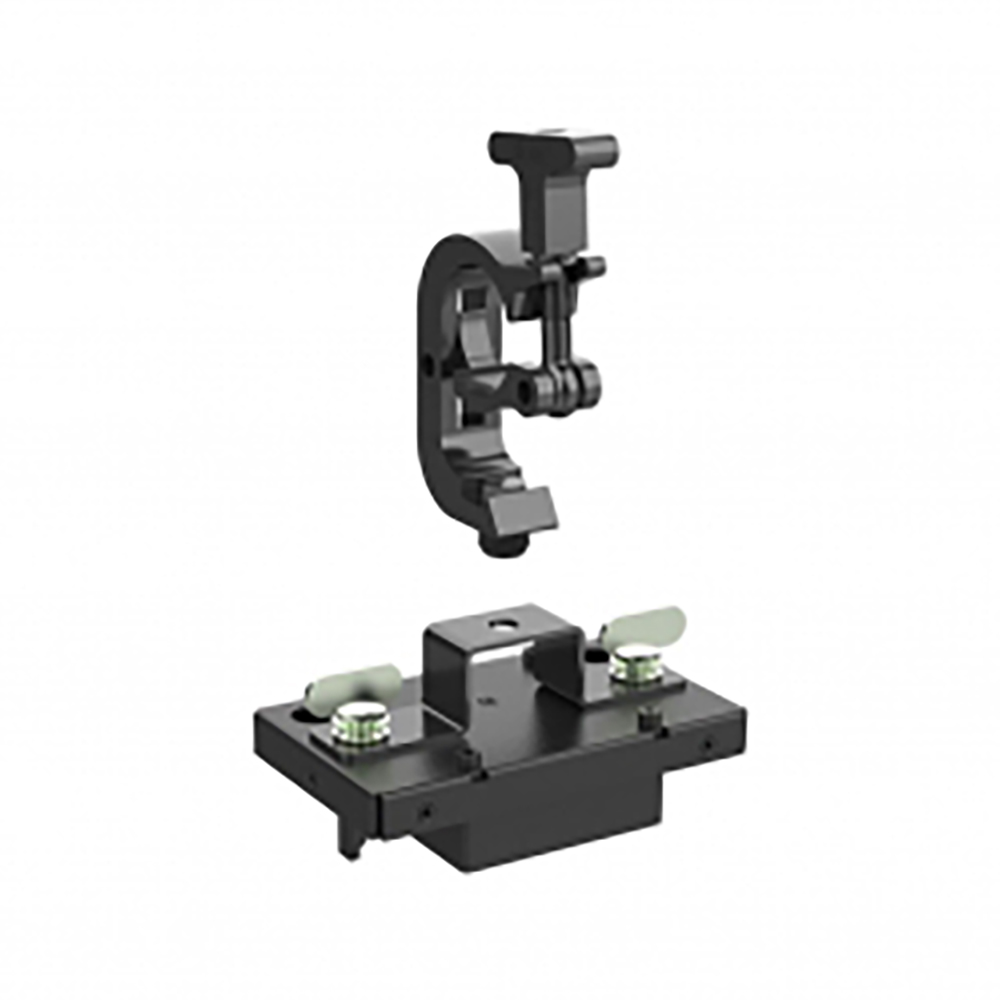

BLB Hanging Bracket: 63582969
Clamp: 2060001632(C-250B)
Signal Line: 5-pin waterproof signal line, RJ45 connector
Safety Cable: 2060001603-A (SW-05)
