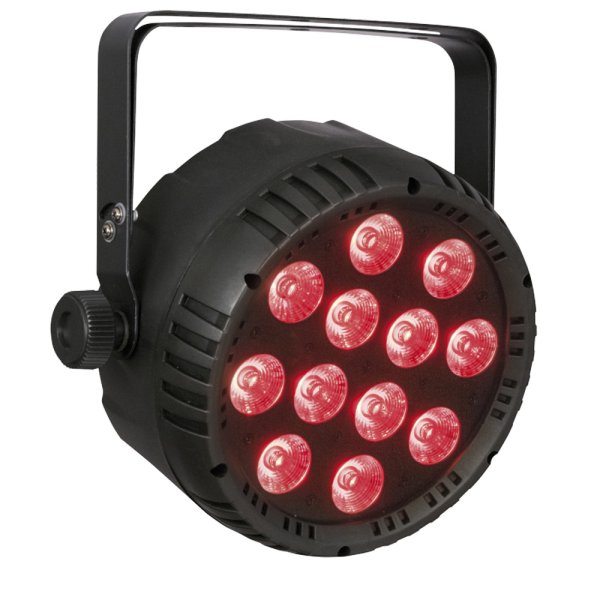

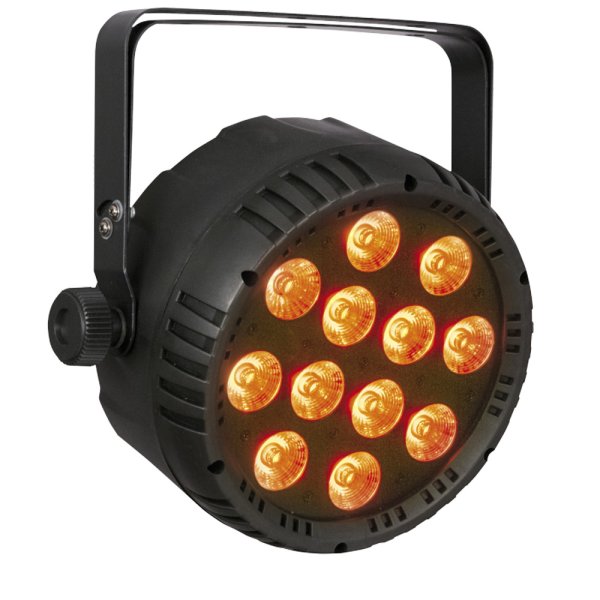

HIGHLITE Showtec Club Par 12/6 RGBWAUV（ショーテッククラブパー 12/6 RGBWAUV） [42651]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

12x 10 W RGBWAUV LED Par
Double bracket for easy floor positioning
25° fixed beam angle
Dimmer and strobe function
Manual, DMX, Auto run and Sound-controlled mode

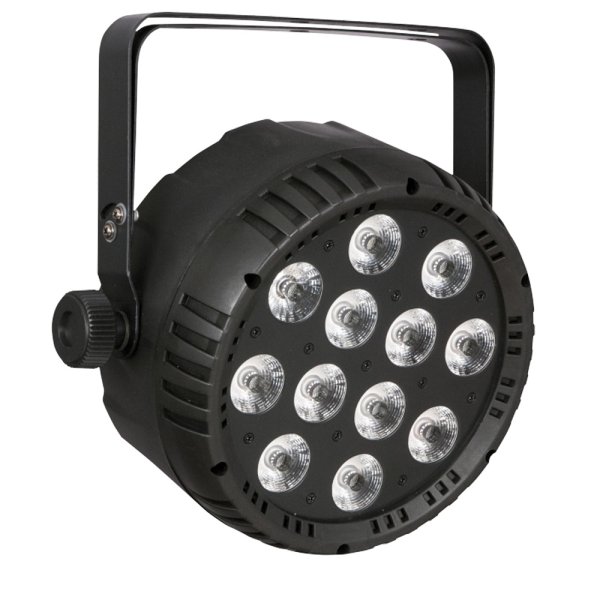

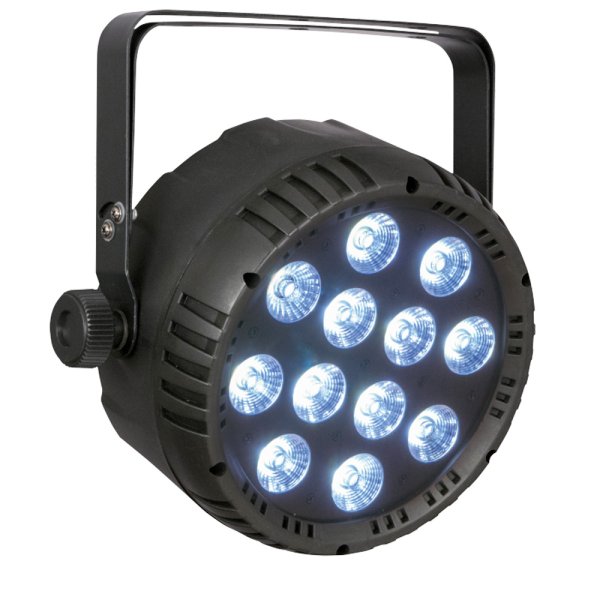

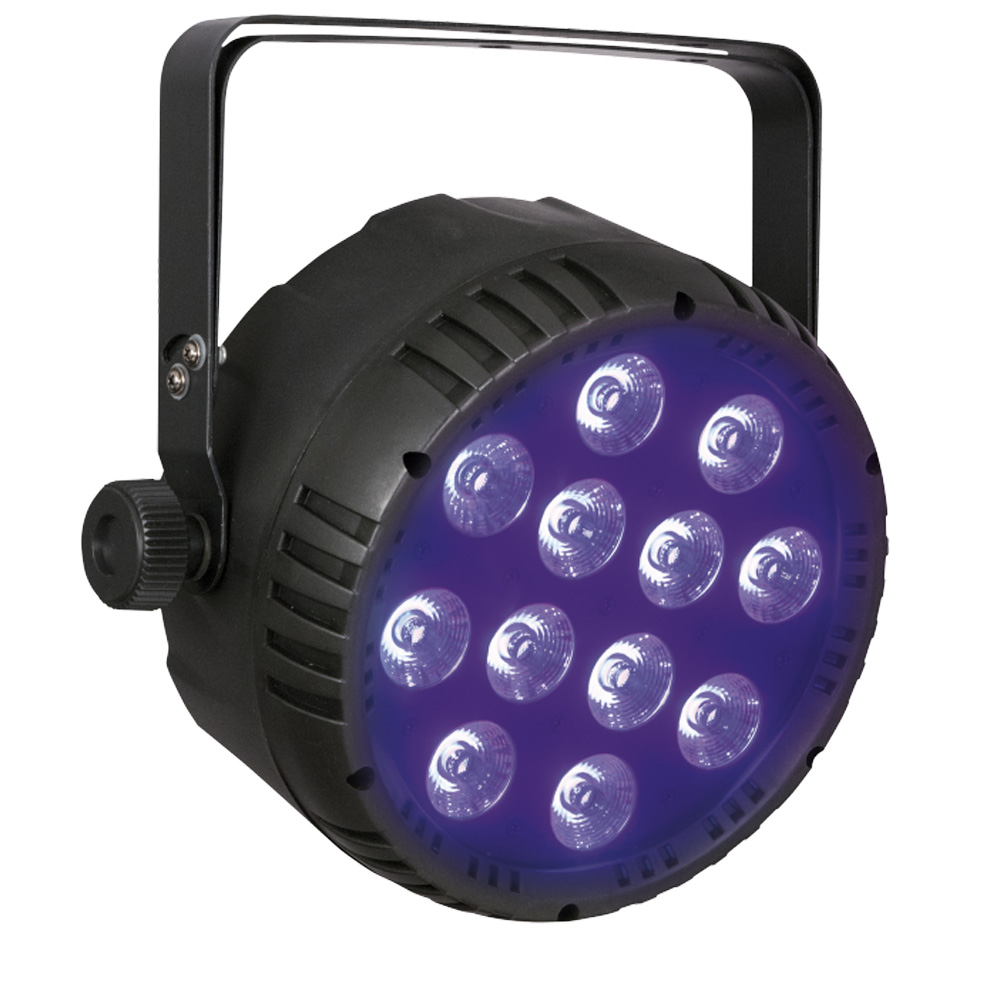

The Showtec Club Par 12/6 RGBWAUV is a 12x 10 watt RGBWAUV LED Par with double bracket for easy floor positioning, suitable for indoor venues. Equipped with 6 colours (Red, Green, Blue, White, Amber and Ultra Violet) it creates a beautifully bright output, from subtle pastels to punchy saturates, blacklight and nearly any temperature of white. The Club Par 12/6 RGBWAUV has a 25° fixed beam angle and is equipped with 0 - 100 % dimmer and 0 - 20 Hz strobe effects, perfectly suitable for colour mixing on stage. It's manually and DMX controllable in either Manual, Auto run and Sound-controlled mode with many available built-in programs. An 1.5 m power cable is included

仕様

Source
Light Source Type
LED
Light Source Quantity
12
Light Source Power
10 W
LED Colour Type
RGBWAUV
Refresh Rate
1200 Hz
Illuminance @ 2 m
5460 lx
Luminous Flux (Total)
3250 lm

Optical
Beam Angle (Circular)
25°

Control and Programming
Control Mode
Auto, DMX, Master Slave, Sound, Stand Alone
DMX Channels
6, 11
Protocols
DMX
Display
7-segment

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

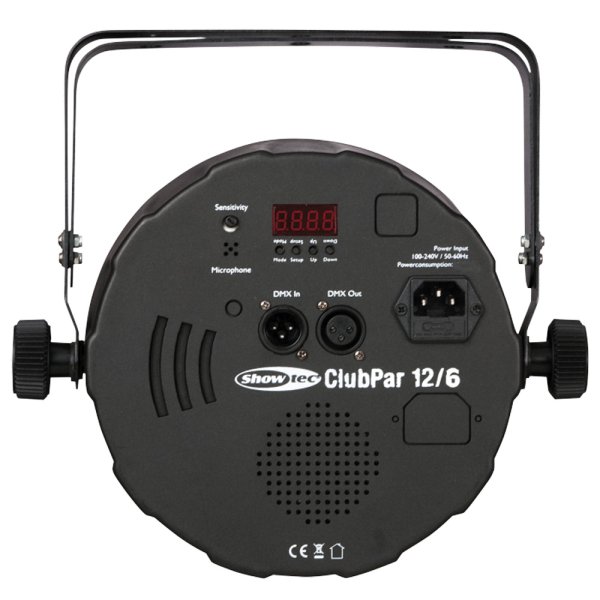

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
95 W
Power Connector In
IEC
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
290 mm
Width (mm)
270 mm
Height (mm)
110 mm
Weight
2.3 kg
IP Rating
IP20 (indoor use only)
Housing
Plastic
Colour
Black

Product Properties
Cooling
Axial fan
Rigging

Mounting Options
Clamp, Surface
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
IEC cable
Included Accessories
User Manual
Included Rigging
Bracket
