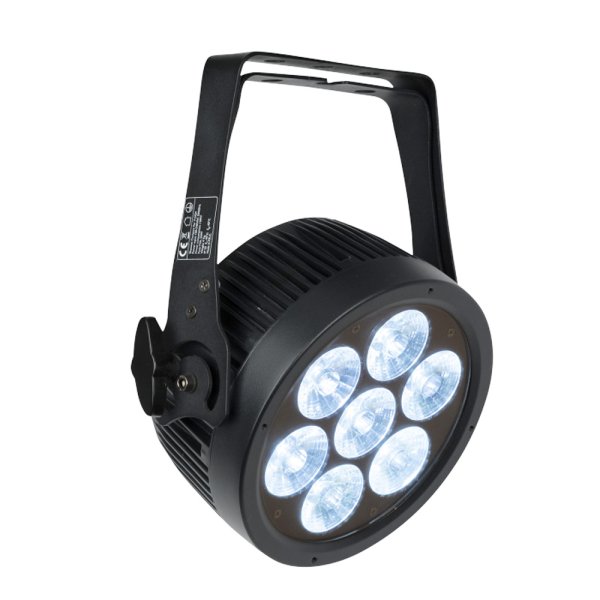

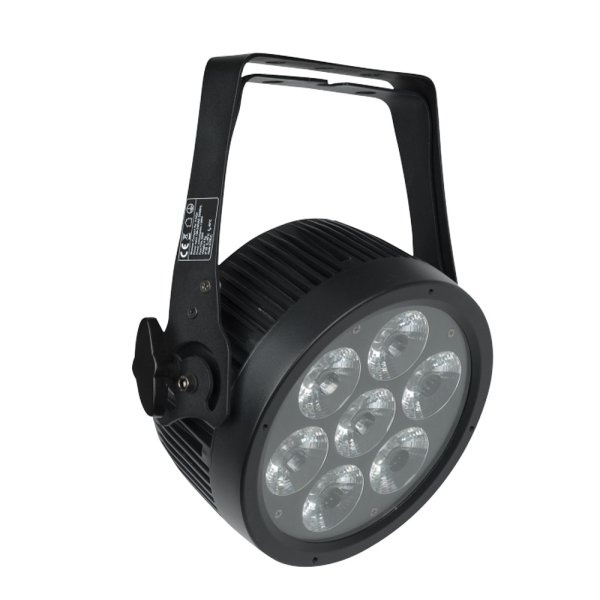

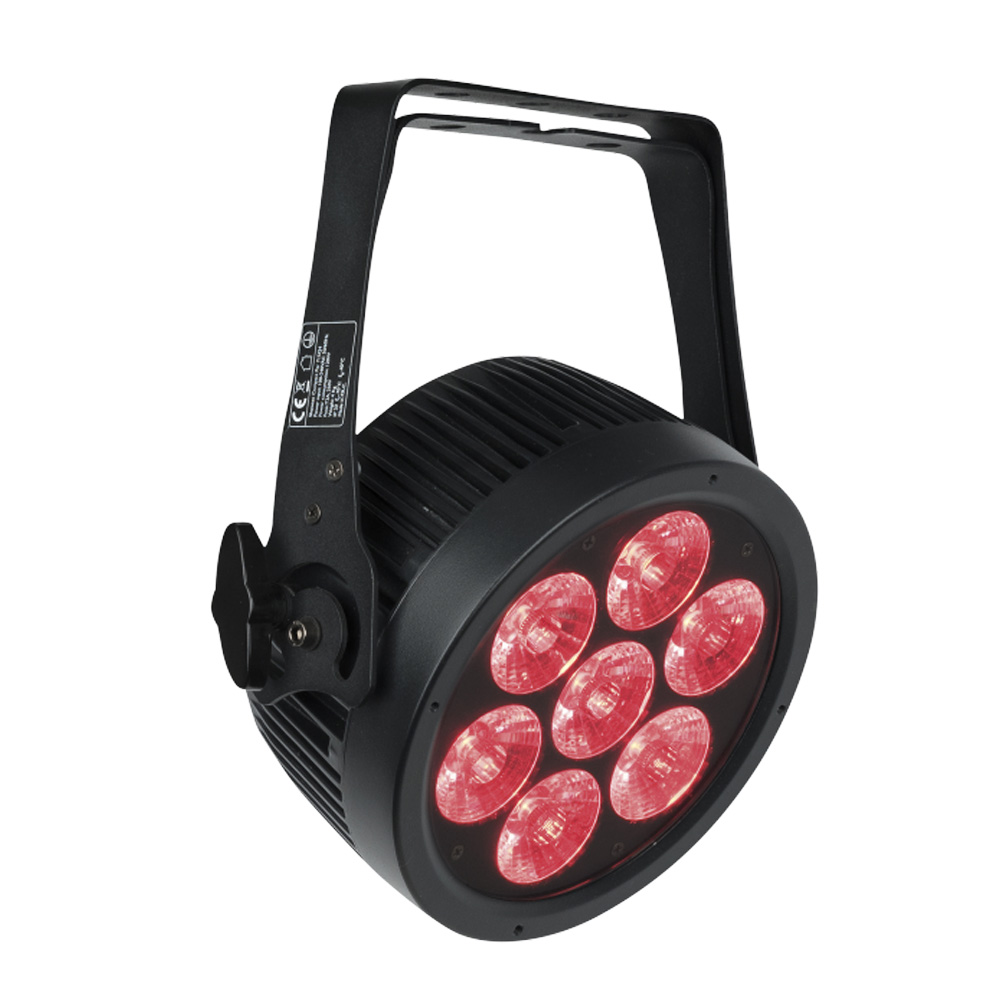

HIGHLITE Showtec Compact Par 7/15 Q4 RGBW（ショーテック コンパクトパー 7/15 Q4 RGBW） [42599]

Showtec Compact Par 7/15 Q4. Productcode: 42599. from Highlite International on Vimeo.

Compact 7x 15 W RGBW LED Par
15° fixed beam angle
Double bracket for easy floor positioning
Easily link up to 15 units
Dimmer and strobe function
The Showtec Compact Par 7/15 Q4 is a compact 7x 15 watt RGBW LED Par suitable for indoor applications. It has a 15° fixed beam angle and features 0–100 % dimmer and 0–20 Hz strobe effects, perfectly suitable for short-throw colour mixing. The Compact PAR 7/15 Q4 is equipped with double bracket for easy floor positioning and suitable for easily linking up to 15 units. It can be controlled manually, via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode with many available built-in programs. Its design fits into any setting with either black and white housing and comes with a dedicated filter frame holder, filter frame and power cable.

仕様

Source
Light Source Type
LED
Light Source Quantity
7
Light Source Power
15 W
LED Colour Type
RGBW
Refresh Rate
1200 Hz
Illuminance @ 2 m
8950 lx
Luminous Flux (Total)
2598 lm
Luminous Flux (Red)
648 lm
Luminous Flux (Green)
1176 lm
Luminous Flux (Blue)
241 lm
Luminous Flux (White)
1081 lm
CRI
70
CCT
6700 K

Optical
Beam Angle (Circular)
15°

Control and Programming
Control Mode
Built-in Program, DMX, Manual
DMX Channels
4, 6, 10
Protocols
DMX
Display
7-segment

Dynamic Effects
Dimmer
0-100 %
Strobe
0-10 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
95 W

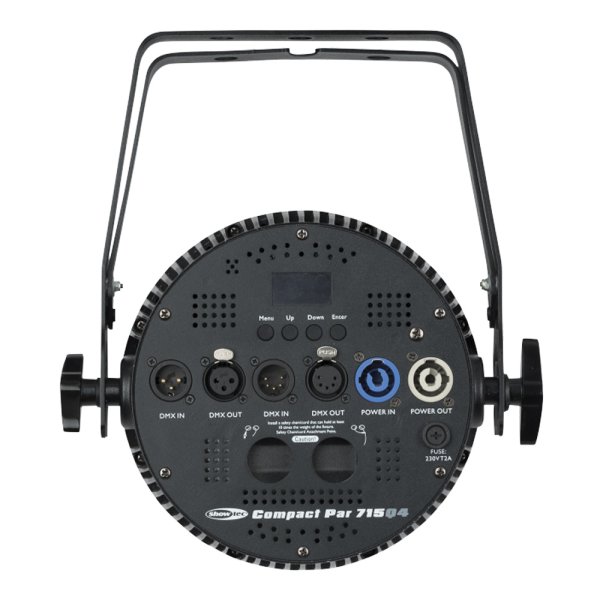

Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Cable Length
1.3 m

サイズ

Mechanical Specifications
Length (mm)
260 mm
Width (mm)
105 mm
Height (mm)
300 mm
Weight
3.8 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
Power Pro Cable
Included Accessories
Filterframe, User Manual
Included Rigging
Bracket
