HIGHLITE Showtec Power Spot 6 Q5 RGBWA（ショーテックパワースポット 6 Q5 RGBWA） [42574v]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

6x 10 W RGBWA LED Spot
Silent, fanless operation
Double bracket for easy floor positioning
Flicker free
Dimmer and strobe function

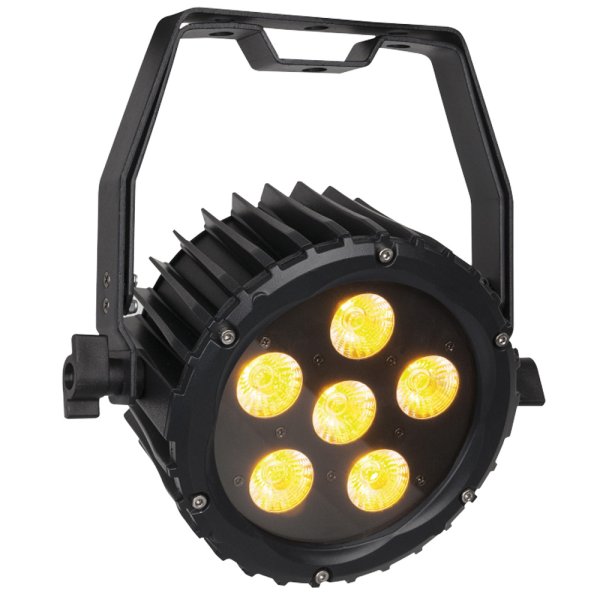

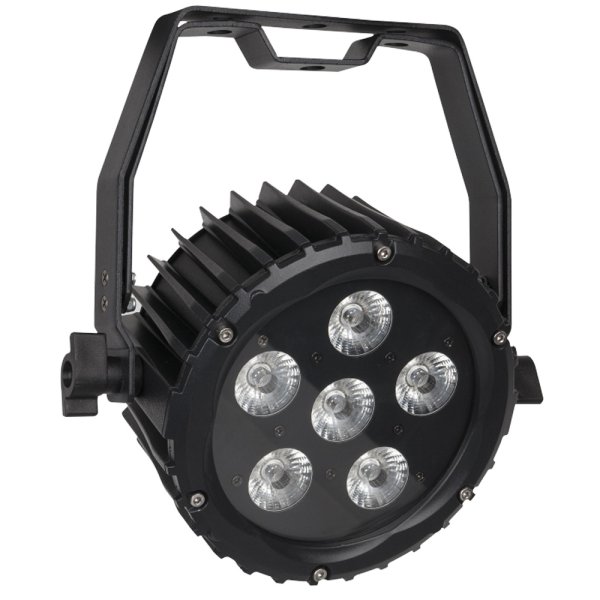

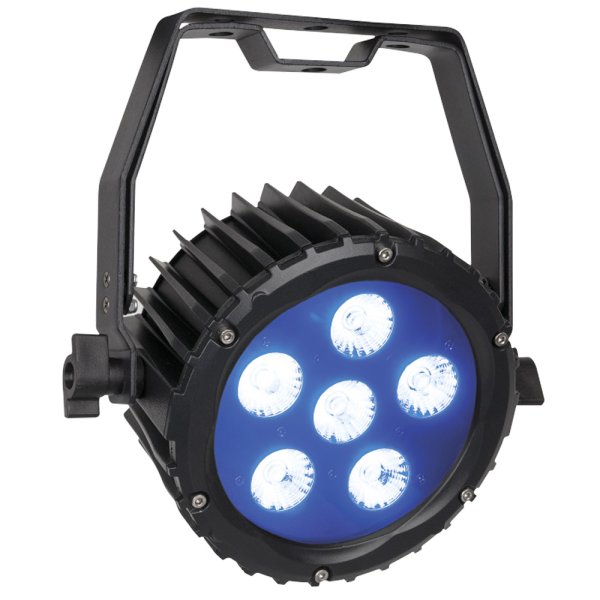

The Showtec Power Spot 6 Q5 is a 6x 10 watt RGBWA LED Spot with silent and flickerfree operations, suitable for indoor venues. Its double bracket enable easy floorpositioning and makes it fit for either fixed and mobile applications. Equipped with 5 colours (Red, Green, Blue, White and Amber), the Power Spot 6 Q5 creates a beautiful, bright output, from subtle pastels to punchy saturates and nearly any temperature of white. Its colour engine, 0 - 100 % dimmer and 0 - 20 Hz strobe functions are controllable via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode with many available built-in programs. An 1.5 m power cable is included.

仕様

Source
Light Source Type
LED
Light Source Quantity
6
Light Source Power
10 W
LED Colour Type
RGBWA
Refresh Rate
7800 Hz
Illuminance @ 2 m
1480 lx
Luminous Flux (Total)
1303 lm

Optical
Beam Angle (Circular)
25°

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave, Static Dimmer
DMX Channels
5, 7, 9
Protocols
DMX
Display
7-segment

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
45 W
Power Connector In
IEC
Power Connector Out
IEC
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
245 mm
Width (mm)
105 mm
Height (mm)
255 mm
Weight
2.5 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Surface
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Cables
IEC cable
Included Accessories
User Manual
Included Rigging
Bracket
