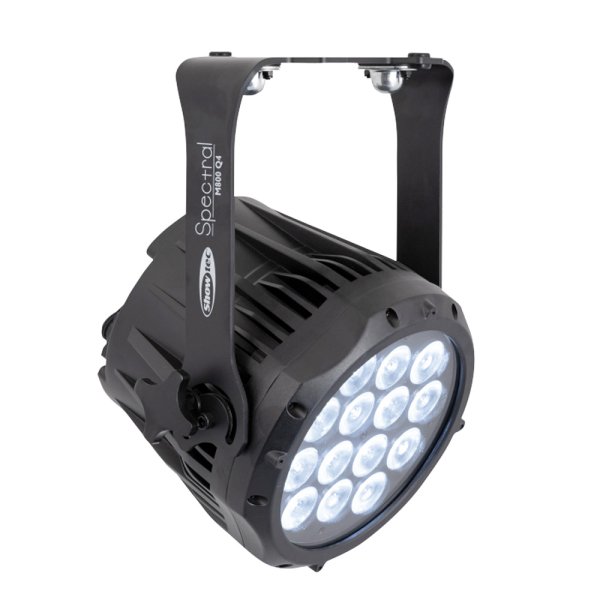

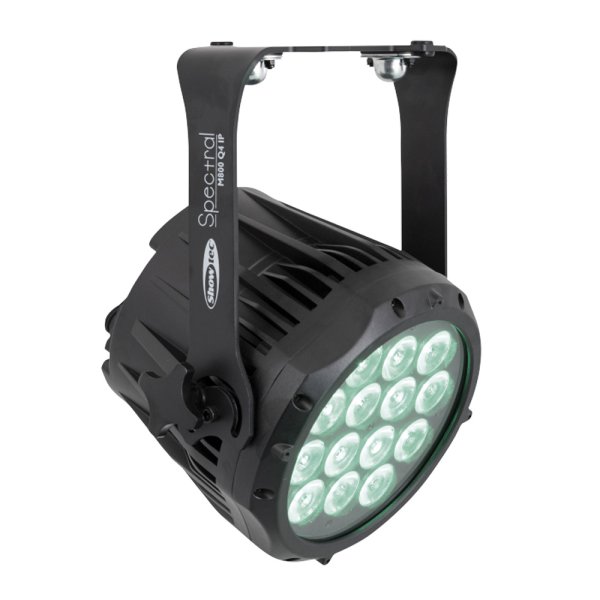

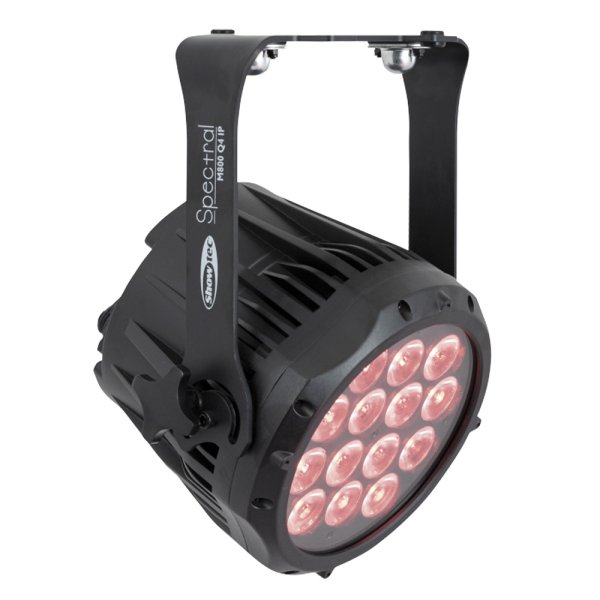

HIGHLITE Showtec Spectral M800 Q4 Tour RGBW（ショーテック スペクトラル M800 Q4 ツアー RGBW [43570]

Infinity - Raccoon P14/4. Product code 200500 from Highlite International on Vimeo.

High-brightness (8000 lm) and high-quality (CRI >87) modes
Accurate and stable colours due to software calibration
Advanced XY, RGB, CMY, and HSI colour mixing technology and pre-set gel colours
Ultra-smooth dimming with five dimmer curves, including tungsten
DMX, RDM, and Manual control
The Raccoon P14/4 is a very high-brightness, high-CRI, IP65-rated Par, intended for applications where both brightness and quality are of high importance, especially rental applications and situations that demand a high light output. It has 14 extremely bright LEDs that have four colours each: red, green, blue, and mint. You can switch between maximum brightness and maximum colour quality (high CRI) mode.

The fixture offers top-of-the-line control options. The core technology of the Raccoon series is the calibrated colour engine, which guarantees outstanding colour quality and stability. By embedding the xy control mode technology, the Raccoon series ensures consistent and accurate colours at any time. The sophisticated software engine, developed in Europe, ensures an exceptionally stable colour output under all circumstances. Thanks to the (LED) temperature compensation, which is monitored continuously by the software, any visible colour shifting during the operation is prevented.

We use the same calibration standards as the Infinity Signature series, so the fixtures are highly consistent in colour. Five different internal dimmer curves are available through the easy-to-use menu system, including a Tungsten shift simulation that works even with a colour filter applied! It can take care of CCT, RGB, and Lee filters internally.

Besides xy mode, control through regular DMX, RDM, and Manual is also possible. The PWM frequency is adjustable between 640 Hz and 25 kHz, ensuring flicker-free camera images. Basic settings, like PWM and dimmer curve, can be copied among Raccoon fixtures in the same network to guarantee identical behaviour. Sturdy 5P XLR DMX and Power Pro True power connectors ensure reliable connections and IP65 compliance. With its stylish housing and accessories like barndoors, a top hat, filter frames, and diffusion filters, the Raccoon series poses an ultra-flexible competitor for high-end pars.

仕様

Source
Light Source Type
LED
Light Source Quantity
14
Light Source Power
15 W
LED Colour Type
R, G, B, M
Life Expectancy
50000 h
Refresh Rate (Min.)
640 Hz
Refresh Rate (Max.)
25 kHz
Luminous Flux (Total)
8000 lm
CRI
87
Minimum CCT
2000 K
Maximum CCT
8000 K

Optical
Beam Angle (Circular)
10°

Control and Programming
Control Mode
DMX, Manual, Static Dimmer
DMX Channels
1, 3, 8, 10, 12
Protocols
DMX, RDM
Display
OLED

Dynamic Effects
Dimmer
0-100 %
Strobe
0-25 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
165 W

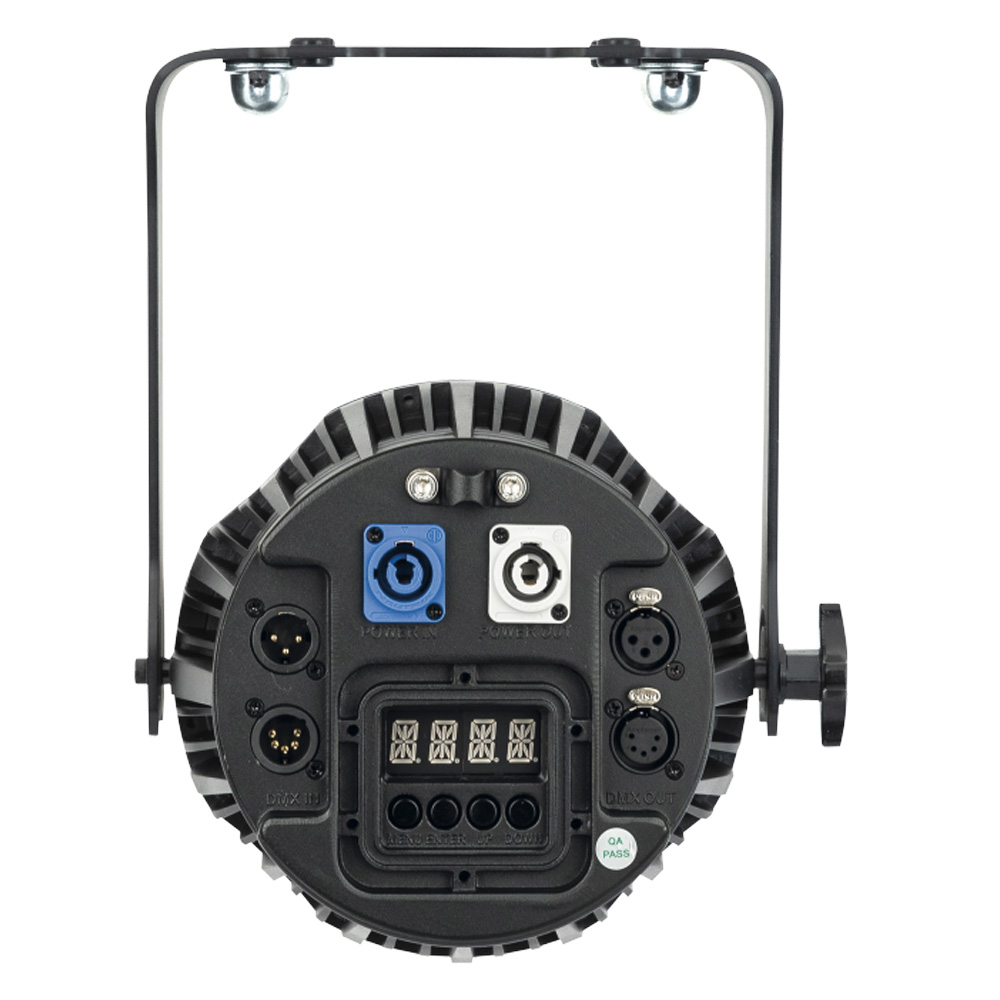

Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P

サイズ

Mechanical Specifications
Length (mm)
195 mm
Width (mm)
260 mm
Height (mm)
300 mm
Weight
5.5 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Quick-Lock
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-5 °C

Included Items
Included Cables
Power Pro Cable
Included Rigging
Quick-Lock Bracket
