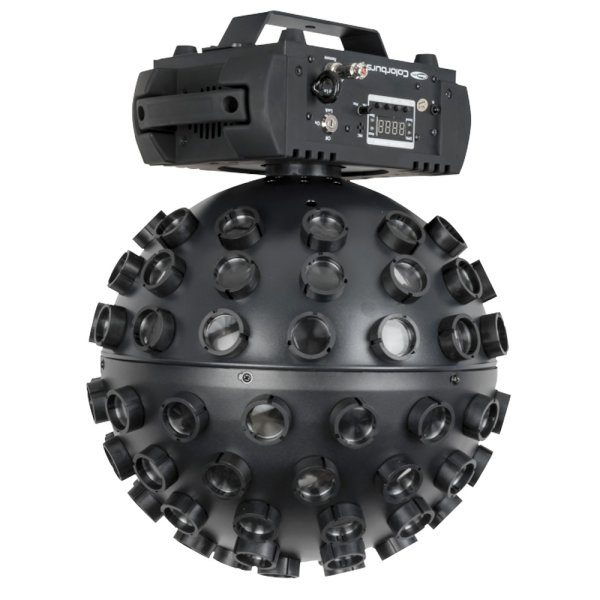

HIGHLITE Showtec Colourburst（ショーテックカラーバースト） [43163v]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

Powerful mirror ball simulation
Red and green pattern laser effects
RGBW colour control over 3 sections
IR remote included

仕様

Source
Light Source Type
Diode, DPSS, LED
Light Source Quantity
5
Light Source Power
8 W
LED Colour Type
RGBW
Laser Power
135 mW
Laser Source
Diode, DPSS
Laser Modulation
TTL
Laser Class
2M
Laser Colour
Red, Green
Laser Power (Total)
135 mW
Laser Power (Red)
100 mW
Laser Wavelength (Red)
650 nm
Laser Power (Green)
35 mW
Laser Wavelength (Green)
532 nm

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave, Remote, Sound
DMX Channels
3, 10, 22
Protocols
DMX
Display
7-segment, LED
Movement
Continuous Movement
Rotating Optics

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
63 W

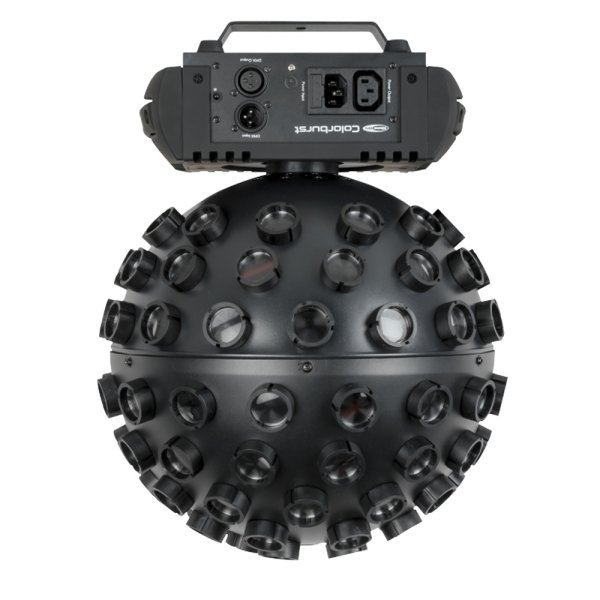

Power Connector In
IEC
Power Connector Out
IEC
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Height (mm)
400 mm
Width (mm)
255 mm
Depth (mm)
320 mm
Weight
3.8 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection/Axial fan
Safety Features
Interlock, Key Switch, Safety Eye

Rigging
Mounting Options
Clamp
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C

Included Items
Included Cables
IEC cable
Included Rigging
Bracket
Included Remotes
IR Remote
