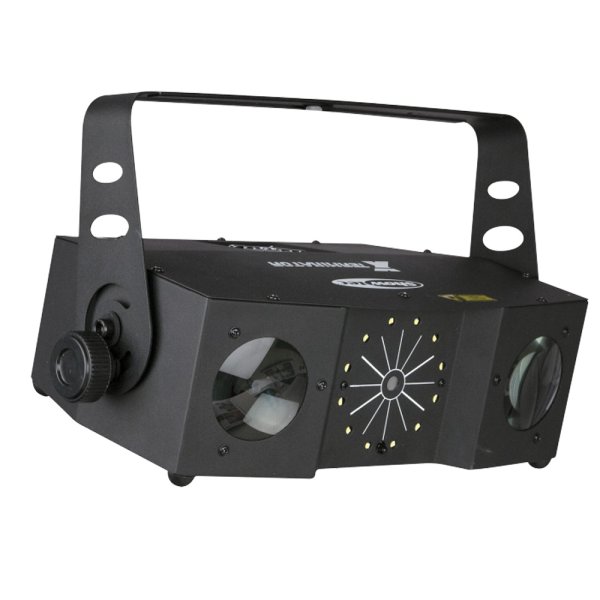

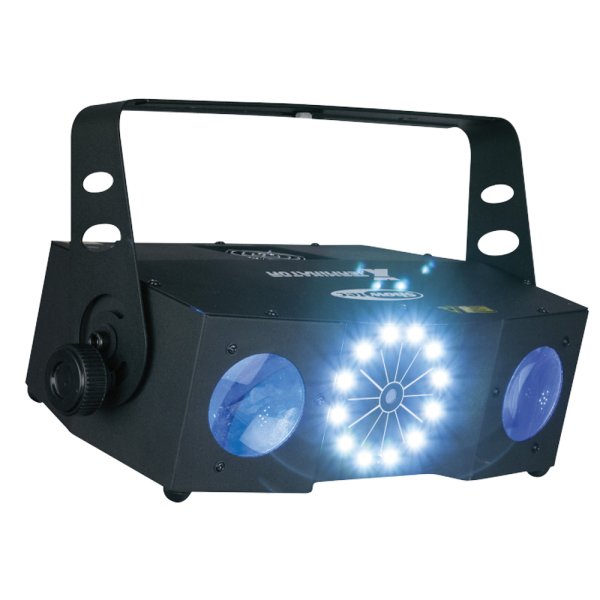

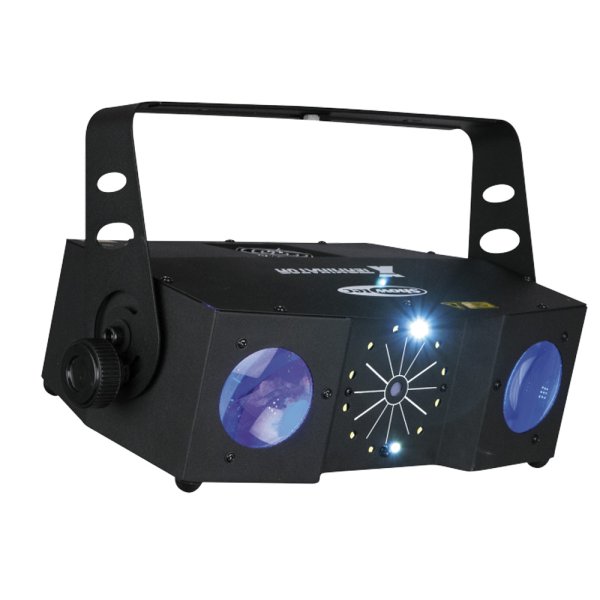

HIGHLITE Showtec X-Terminator（ショーテック X-ターミネーター） [43157]

Showtec X-Terminator. Ordercode: 43157. from Highlite International on Vimeo.

Moonflower, Laser & Strobe Effect
130 mW RG laser
RGBWA colours
12 strobe LEDs

仕様

Source
Light Source Type
Diode, DPSS, LED
Light Source Quantity
6
Light Source Power
3 W
LED Colour Type
RGBWA, White
LED Strobe
Yes
LED Strobe Quantity
12
Drive Current
0.3 A
Laser Power
300 mW
Laser Class
3B
Laser Colour
Red, Green
Laser Power (Total)
130 mW
Laser Power (Red)
100 mW
Laser Wavelength (Red)
650 nm
Laser Power (Green)
30 mW
Laser Wavelength (Green)
532 nm

Control and Programming
Control Mode
Auto, DMX, IR, Master Slave, Sound
DMX Channels
2, 11
Protocols
DMX
Display
7-segment, LED

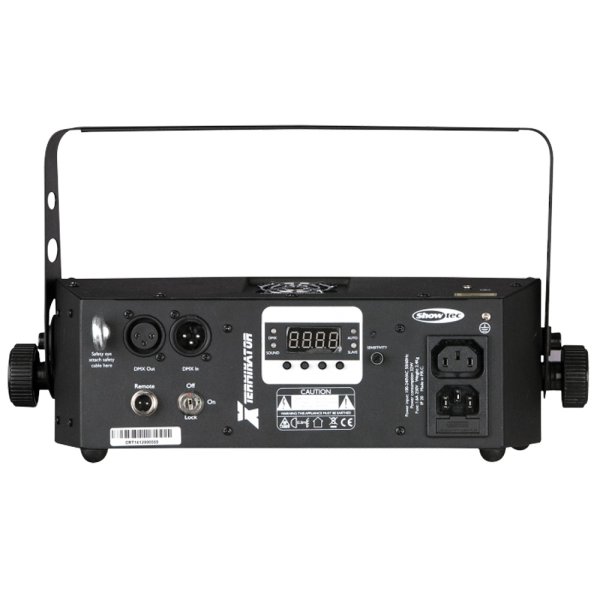

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
36 W
Power Connector In
IEC
Power Connector Out
IEC
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Height (mm)
197 mm
Width (mm)
335 mm
Depth (mm)
215 mm
Weight
2.4 kg
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Black

Product Properties
Cooling
Convection/Axial fan
Safety Features
Interlock, Key Switch, Safety Eye

Rigging
Mounting Options
Clamp
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Product Compliance
Laser Classification Standard
EN-IEC 60825-1:2007

Included Items
Included Cables
IEC cable
Included Rigging
Bracket
Included Remotes
IR Remote
