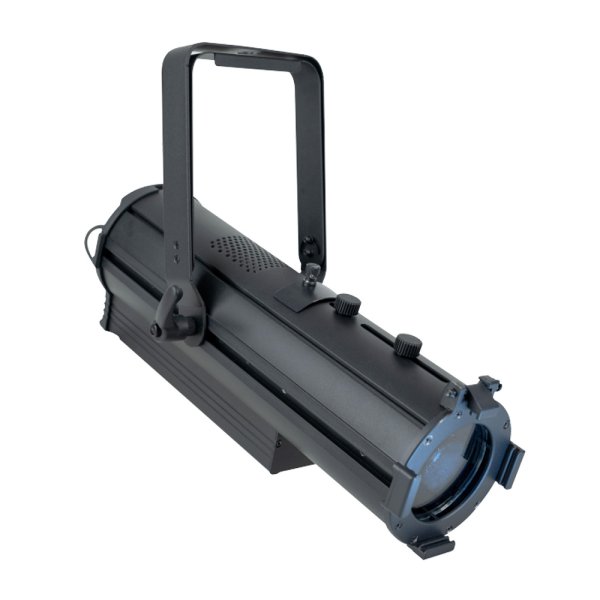

HIGHLITE Showtec ACT Image Spot 50 CW（ショーテック ACT イメージスポット 50 CW） [34060v]

50 W Cold White LED gobo projector
Suitable for commercial applications
6000 K CCT
DMX, IR remote (optional), and manual control
4 Dimmer curves

仕様

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
50 W
LED Colour Type
White
Refresh Rate
1100 Hz
Illuminance @ 2 m
6672 lx
Illuminance @ 3 m
2965 lx
Illuminance @ 5 m
1068 lx
Luminous Flux (Total)
1743 lm
CRI
96
CCT
6500 K

Optical
Beam Angle Min. (Circular)
152°
Beam Angle Max. (Circular)
275°
Control and Programming
Control Mode
DMX, IR, Manual
DMX Channels
2, 3
Protocols
DMX
Display
OLED
Dim Curve
Linear, Square, I-Square, S-Curve
Dimmer Resolution
8 bit

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Gobo Wheel Index & Rotate
Yes
Gobo Wheel 1
1 + Open

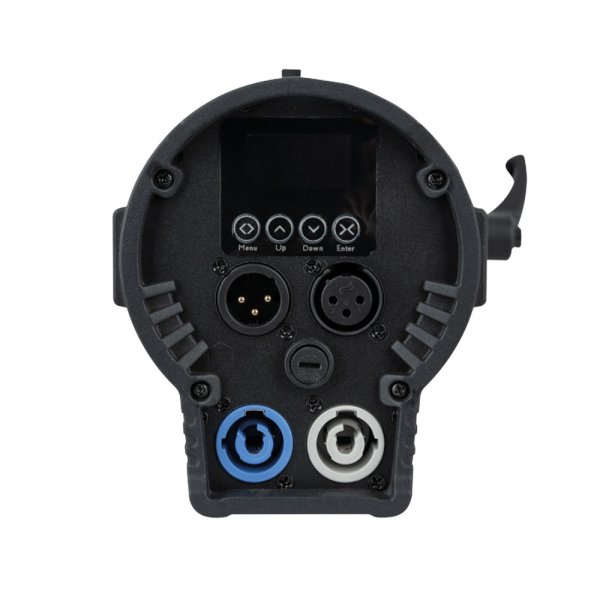

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
57 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Height (mm)
145 mm
Width (mm)
165 mm
Depth (mm)
425.2 mm
Weight
2.8 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium, Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection/Axial fan

Rigging
Mounting Options
Bracket
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
45 °C

Included Items
Included Cables
Power Pro Cable
Included Accessories
Gobo Holder
