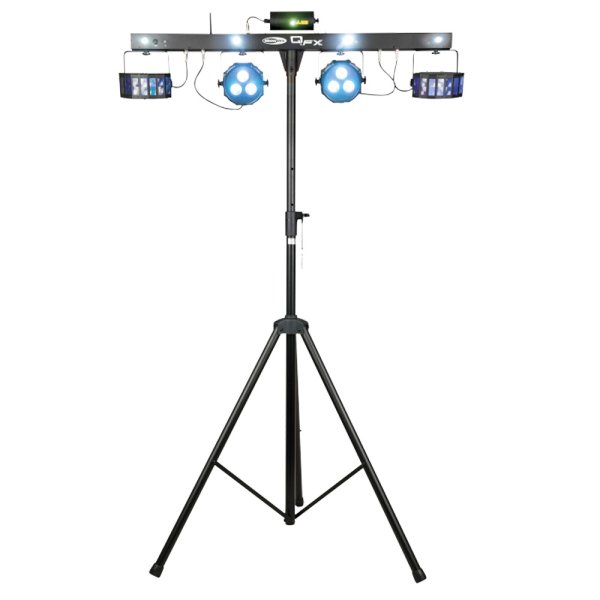

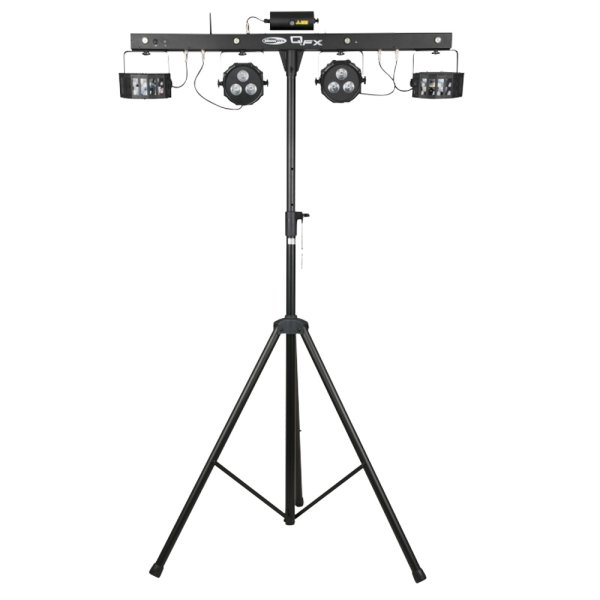

HIGHLITE Showtec QFX（ショーテック QFX） [30276]

Showtec QFX, Ordercode: 30276 from Highlite International on Vimeo.

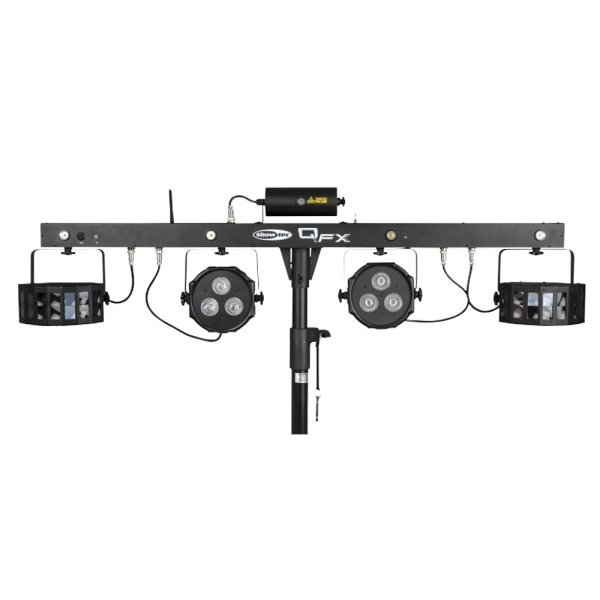

4 FX on 1 Bar

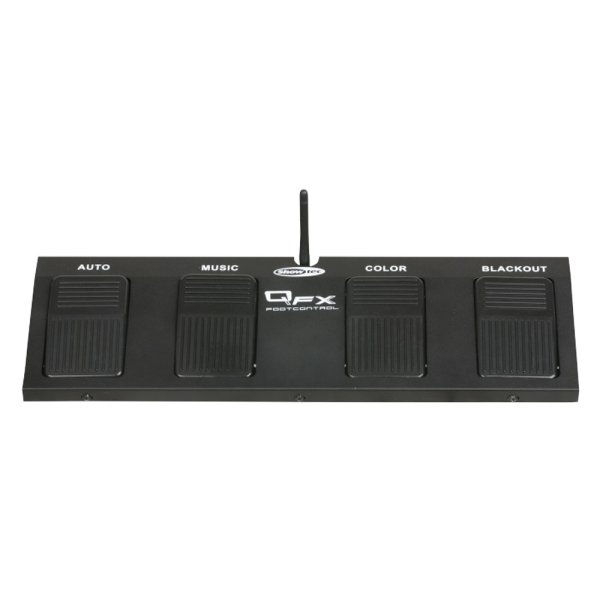

Incl. wireless foot controller & IR remote

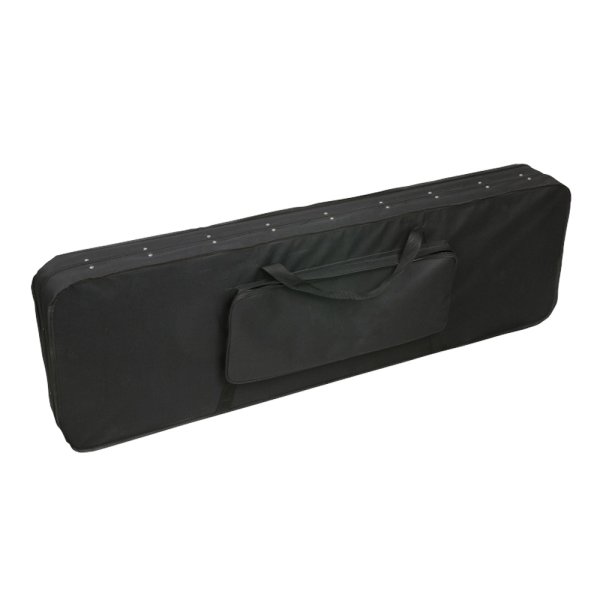

Incl. tripod + bag & Transport case

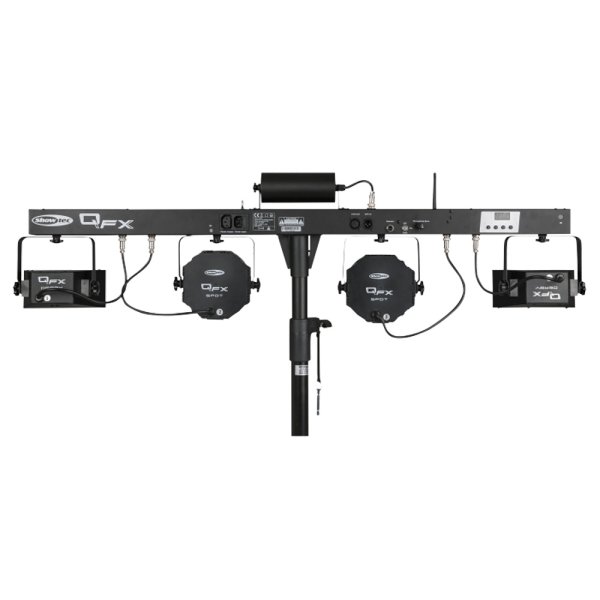

Effects interchangeable on bar
130 mW RG Laser

仕様

Source
Light Source Type
Diode, DPSS, LED
Light Source Quantity (Par)
6
Light Source Quantity (Effect)
6
Light Source Power (Par)
3 W
Light Source Power (Effect)
2 W
LED Colour Type
RGB, White
LED Strobe
Yes
LED Strobe Quantity
4
LED Strobe Power
4 W
Drive Current
0.95 A
Laser Class
2M
Laser Colour
Red, Green
Laser Power (Total)
130 mW
Laser Power (Red)
100 mW
Laser Wavelength (Red)
650 nm
Laser Power (Green)
30 mW
Laser Wavelength (Green)
532 nm
Illuminance @ 2 m
1205 lx

Optical
Beam Angle (Circular)
24°

Control and Programming
Control Mode
Auto, DMX, IR, Master Slave, Sound
DMX Channels
3, 5, 9, 27
Protocols
DMX
Display
7-segment, LED

Dynamic Effects
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
45 W
Power Connector In
IEC
Power Connector Out
IEC
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

サイズ

Mechanical Specifications
Height (mm)
378 mm
Width (mm)
1185 mm
Depth (mm)
110 mm
Weight
6.6 kg
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Black

Product Properties
Cooling
Convection
Safety Features
Interlock, Key Switch, Safety Eye

Rigging
Mounting Options
Bracket, Clamp, Stand
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C

Product Compliance
Laser Classification Standard
EN-IEC 60825-1:2007

Included Items
Included Cables
IEC cable
Included Accessories
Bag, Footswitch, Interlock connector, Interlock key(s), Stand
Included Rigging
Bracket
Included Remotes

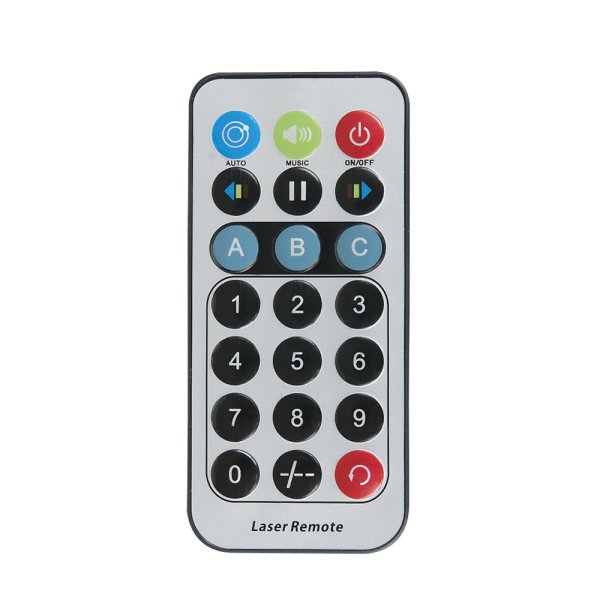

IR Remote
