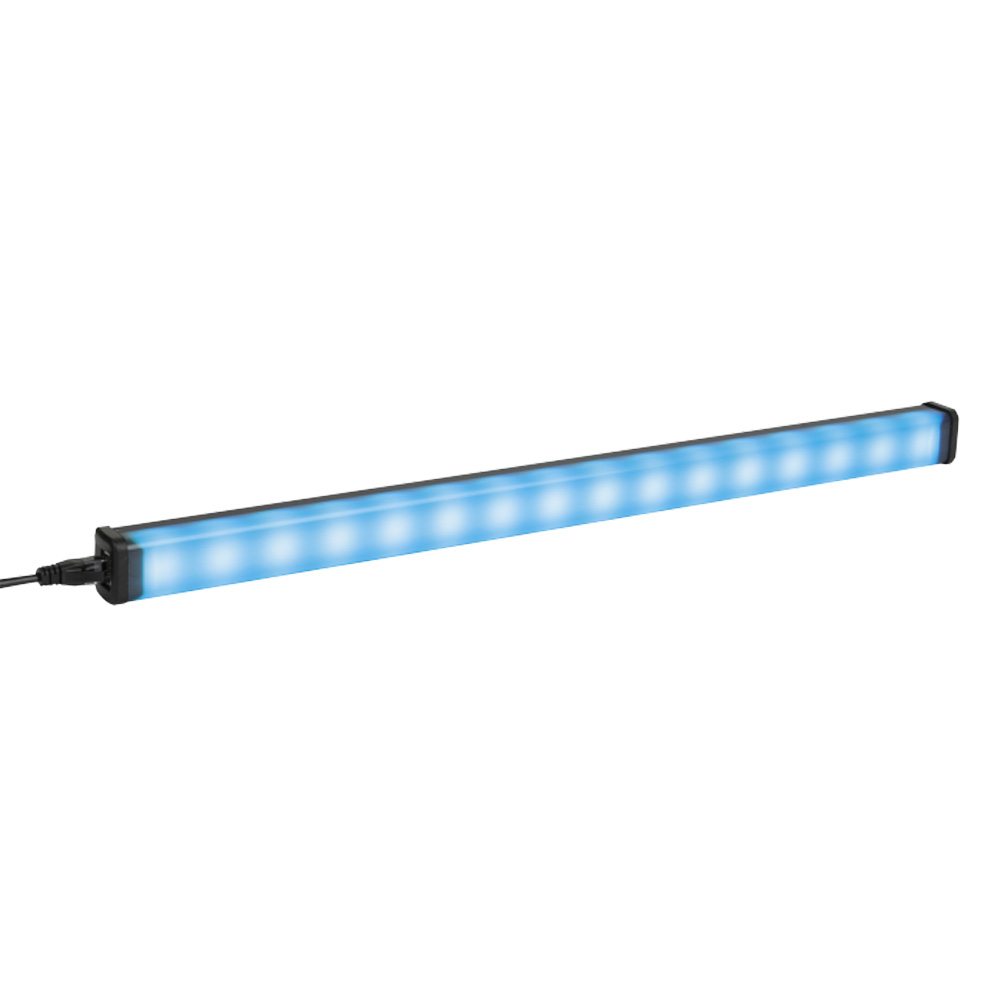

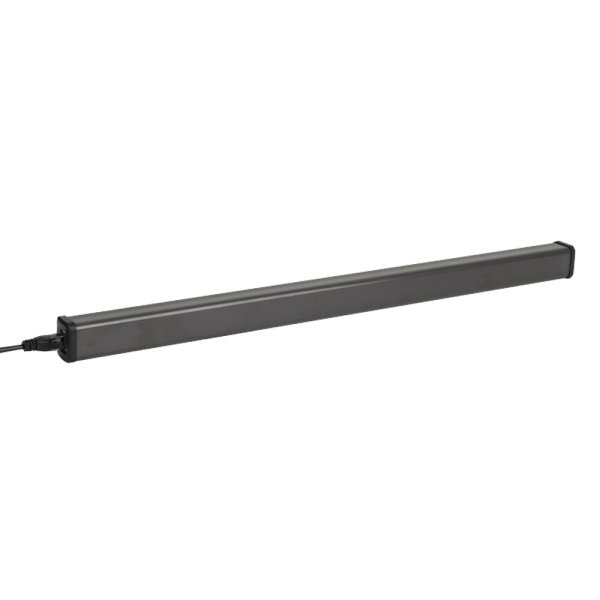

HIGHLITE Showtec Pixeltube 16 [44521]

Showtec PixelTube 32. Product Code 44520 from Highlite International on Vimeo.

Pixel tube with 16 RGB pixels
Daisy-chainable
50 cm
Controllable by the Pixelcontroller through DMX / Art-Net / Kling-Net
Black frosted cover

仕様

Source
Light Source Type
LED
Light Source Quantity
16
Light Source Power
1 W
Refresh Rate
1300 Hz
Optical
Pixel Pitch
30 mm

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
24 V DC
Data Connector In
RJ45
Data Connector Out
RJ45

サイズ

Mechanical Specifications
Height (mm)
29 mm
Width (mm)
32 mm
Length (mm)
504 mm
Weight
0.13 kg
IP Rating
IP20 (indoor use only)
Housing
Plastic
Colour
Black, Frost

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp

Thermal Specifications
Maximum Ambient Temperature
40 °C

Included Items
Included Cables
CAT-5 Cable
Included Rigging
Dedicated Clamp

Control and Programming
Control Mode
Art-Net, Built-in Program, DMX, Kling-Net, Manual, Master Slave
DMX Channels
48
Protocols
Art-Net, DMX, Kling-Net
