HIGHLITE Showtec Pixel Panel 1024 [44560]

Showtec PixelPanel 1024. Product Code 44560 from Highlite International on Vimeo.

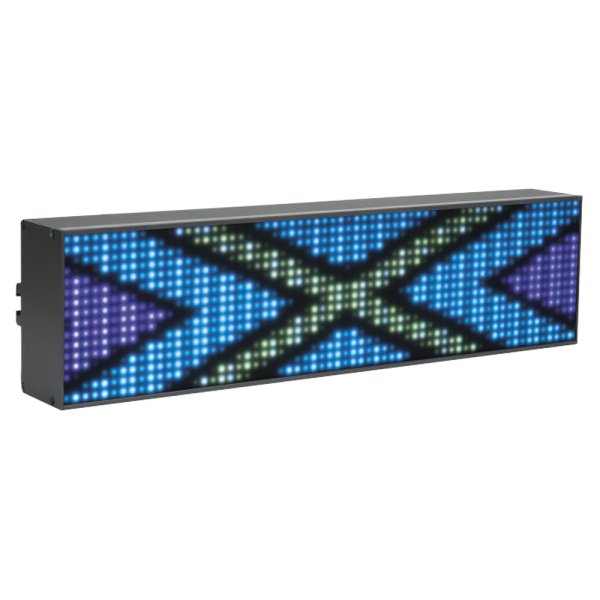

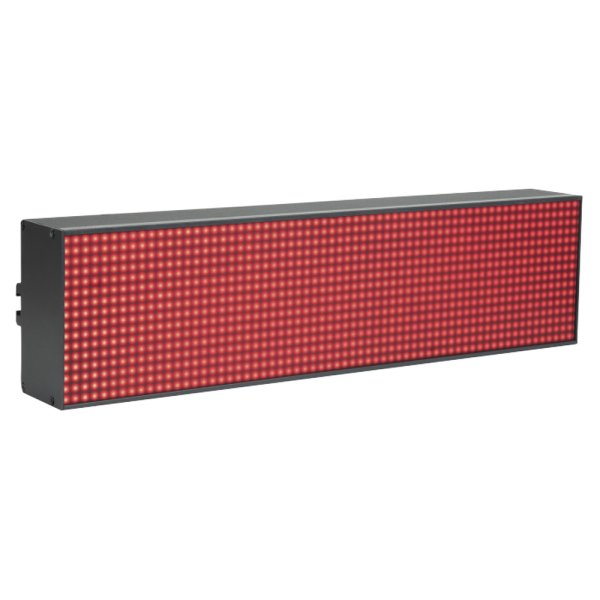

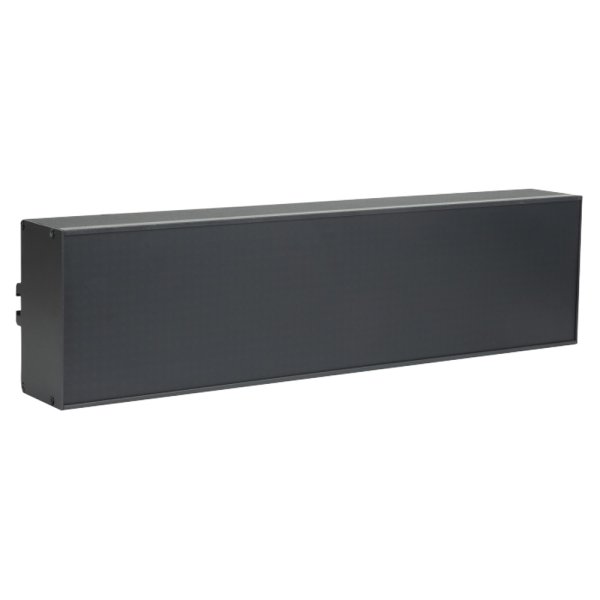

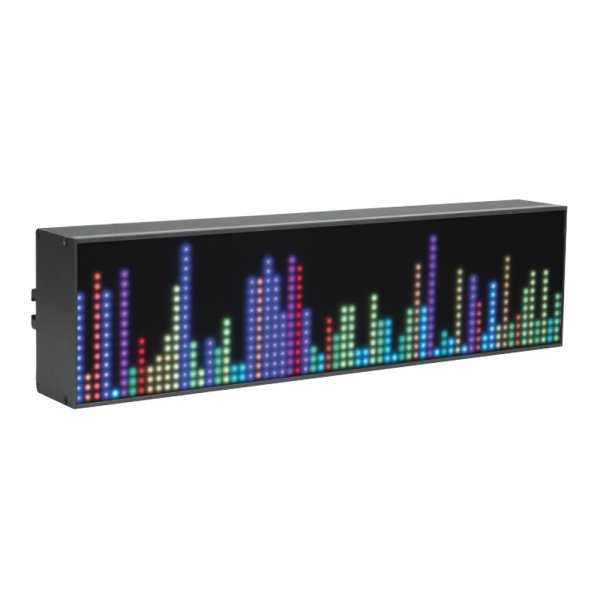

Pixel panel with 1024 RGB Pixels
Full Pixel Control (Art-Net)
DMX, Master/Slave, Art-Net and Kling-Net controllable
Flexible rigging system
Alignment plate & black frosted cover included

仕様

Source
Light Source Type
LED
Light Source Quantity
1024
Refresh Rate
410 Hz

Dynamic Effects
Dimmer
0-100 %
Strobe
0-25 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
45 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey

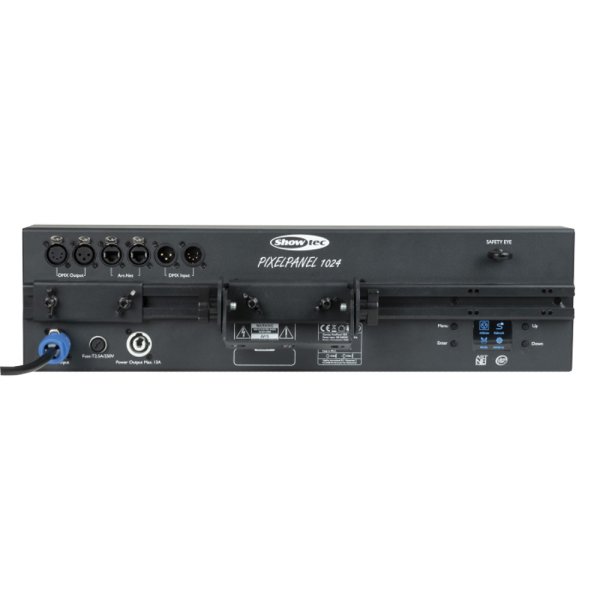

DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Data Connector In
ProCat
Data Connector Out
ProCat

サイズ

Mechanical Specifications
Height (mm)
85 mm
Width (mm)
136 mm
Length (mm)
516 mm
Weight
2.82 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Bracket
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Ambient Temperature
-5 °C

Included Items
Included Cables
CAT-5 Cable, Power Pro Cable
Included Accessories
Connection Plate

Control and Programming
Control Mode
Art-Net, Built-in Program, DMX, Kling-Net, Manual, Master Slave
DMX Channels
8, 3072
Protocols
Art-Net, DMX, Kling-Net
Display
OLED
