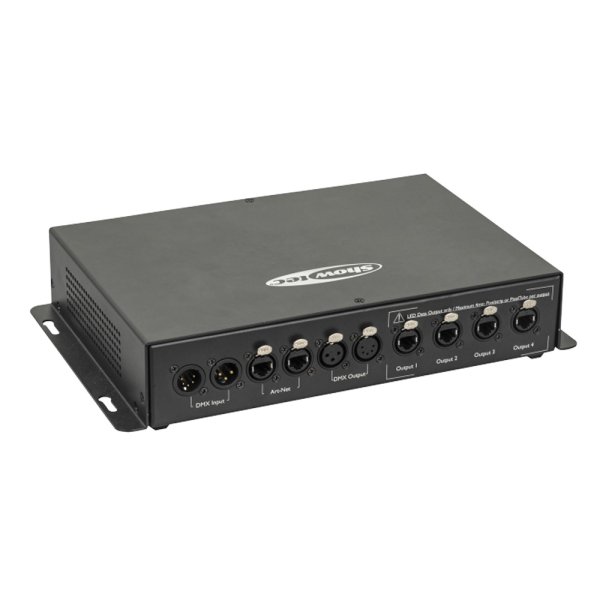

HIGHLITE Showtec Pixel Controller [44510]

Controller for Pixelstrip, Pixeltube and Pixel Dot
Individual Pixel Control
Each output drives up to 4 m Strip, 5 m Tube, or 40 Dots
DMX, Art-Net and Kling-Net controllable
Dimmer function
The Showtec Pixel Controller is an easy-to-use four-output RGB pixel controller with dimmer function, suitable for controlling a variety of Pixel products, like the Pixelstrip 20/40, Pixeltube 16/32 and Pixel Dot. This controller is not only externally controllable by DMX, Master/Slave, Art-Net and Kling-Net, but can also be used as a stand-alone controller with built-in programs. Each of the 4 outputs can handle up to 4 m (13.1 ft) Pixelstrip, 5 m (16.4 ft) Pixeltube and 40 Pixel Dots. When using Art-Net, you are able to gain full control of all pixels to create stunning effects.

仕様

Control and Programming
Control Mode
Art-Net, Auto, DMX, Kling-Net, Manual, Master Slave
DMX Channels
7, 480, 1920
Dynamic Effects
Dimmer
0-100 %

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Output Voltage
24 V DC
Power Consumption
320 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey

サイズ

Mechanical Specifications
Height (mm)
342 mm
Width (mm)
210 mm
Depth (mm)
68 mm
Weight
2.1 kg
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Black

Product Properties
Cooling
Convection
Rigging

Mounting Options
Clamp

Thermal Specifications
Maximum Ambient Temperature
40 °C

Included Items
Included Cables
Power Pro Cable

参照

■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/deco-lights/deco-light-accessories/44510-pixel-controller.html
