HIGHLITE Showtec EventSpot 1600 Q4 RGBW - Silver [44051]

Showtec EventSpot 1600 Q4. Ordercode: 44050. from Highlite International on Vimeo.

4x 12 W RGBW colour mixing
Long battery life (up to 15 hours RGBW)
IP54 For outdoor use
Wireless DMX
Capacity saving 'Working time' feature

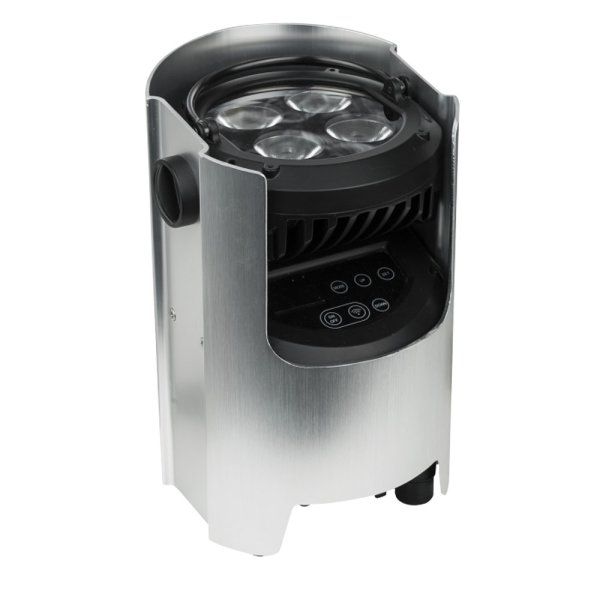

The Eventspot 1600 Q4 is an extremely compact and rugged event lighting fixture with lithium ion battery and wireless DMX. It is equipped with 4x 12 W RGBW combined with dedicated high class optics ensuring a bright and well-defined 10° beam. Separate chargers or charger cases are available as options to fit your desired solution. The battery has a lifetime of up to 15 hours at RGBW. The projection angle of the fixture can be adjusted and optional beamshapers are available to create desired beam angles. With the IP54 rating this LED battery light is the right choice for professional rental use. A very useful feature is the "Working time". With this feature you can specify the actual working timeframe of the unit from 1 to 15 hours max. The Eventspot will then automatically divide the current capacity of the battery to make sure that the unit will work the length of the specified time. This feature comes in very handy when there is no opportunity to charge the battery but operating it is still required.

■仕様
Source
Light Source Type
LED
Light Source Quantity
4
Light Source Power
48 W
LED Colour Type
RGBW
Refresh Rate
12000 Hz
Illuminance @ 2 m
15000 lx
Luminous Flux (Total)
1580 lm
CRI
75
CCT
6500 K

Optical
Beam Angle (Circular)
10°

Wireless Specifications
Wireless Mode
G3, G4
Reaction Time
8 ms

Battery
Battery Type
Built-in
Battery Voltage
18.5 V
Capacity
13 Ah
Runtime @Full
15 h
Charging Time
6 h

Control and Programming
Control Mode
DMX, Manual, Master Slave, Stand Alone
DMX Channels
4, 6, 10
Protocols
DMX
Wireless
Wireless DMX
Display
OLED, Touch
Dim Curve
Linear, Square, I-Square, S-Curve

Dynamic Effects
Dimmer
0-100 %
Strobe
0-15 Hz

Electrical Specifications and Connections
Power Supply
18 V DC
Power Consumption
75 W
Power Connector In
Internal Powerlink with custom power connector

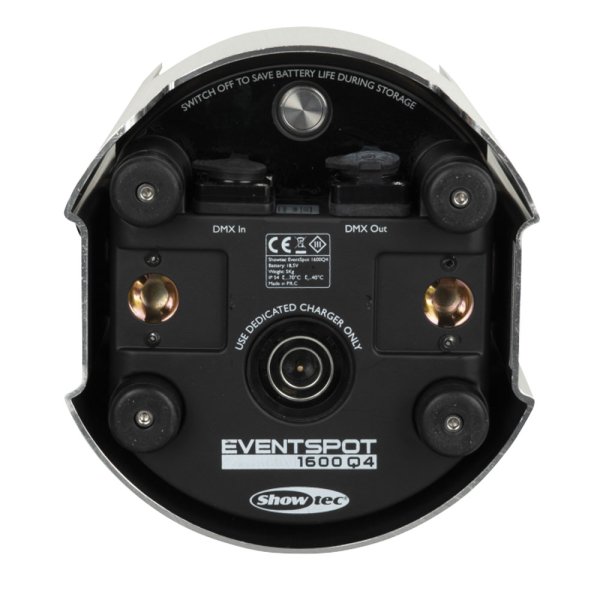

DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P

■サイズ
Mechanical Specifications
Length (mm)
180 mm
Width (mm)
195 mm
Height (mm)
280 mm
Weight
5 kg
IP Rating
IP54
Housing
Aluminium
Finish
Brushed
Colour
Silver

Product Properties
Cooling
Convection

Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
80 °C
Minimum Operating Temperature
-10 °C

Included Items
Included Accessories
User Manual
Included Rigging
Quick-Lock Bracket
