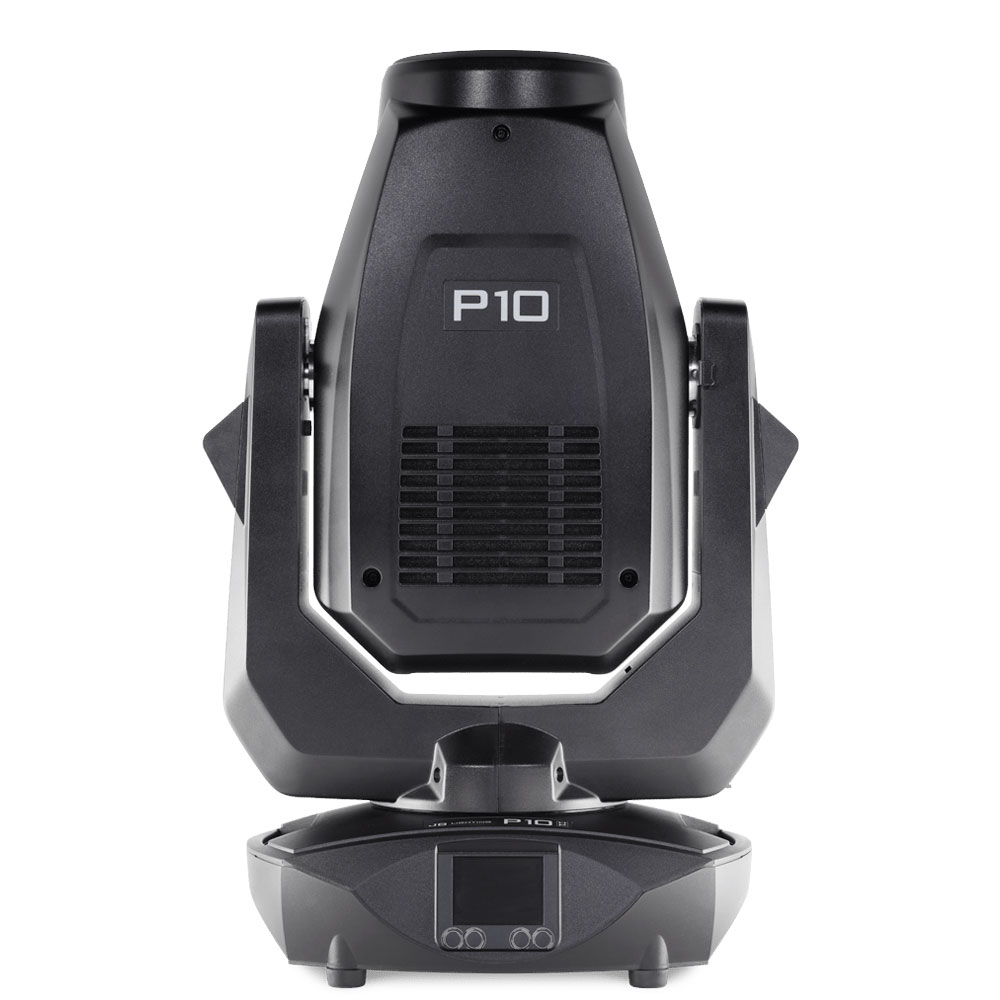

JB-Lighting P10 Profile WW（P10 プロファイル WW）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

With 330W LED power, the P10 is the perfect size for any stage. It's extremely handy, bright and works extremely quietly and precisely. It doesn't matter whether features like the framing module or its effects are used and in which zoom range from 4°– 60° its presence is required.
Thanks to its weight of only 18 kg and its compactness, it can be easily handled and installed in the rig by one person. Naturally, the P10 also feels right at home in a permanent installation in the theatre or on TV.

仕様

■光学システム＆光源
・330 W white light LED module
・HP (High Power): 6800 K; 25,000 lm (15,000 lm Output); CRI ≥70
・HC (High CRI): 5800 K; 16.000 lm (10.000 lm Output); CRI ≥90
・WW (Warm White): 3200 K; 12.000 lm (8.000 lm Output); CRI ≥9
・Zoom range: 4° – 60° (1:15)
・Large light-emitting lens Ø 135 mm
・> 20,000 h life time
・Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz

■エフェクト
・2 gobo wheels each with 7 rotatable, interchangeable and positionable gobos including multicolor gobo + open
・1 color wheel with 5 full or half colors + 2 correction filters: High CRI filter (CRI ≥85) + CTB 2 + open
・P10 HP and P10 HC: variable CTO (linear) + 100% CTO
・P10 WW: variable CTB (linear) + 100% CTB
・CMY color mixing unit for rapid, even color mixing
・CTB filter for automatic color correction with gobo application
・Framing module with 4 blades – each with separate motion and rotation control, the module can be rotated by 130° (+/- 65°), each blade independently by +/- 30°
・2 frost filters (soft edge/flood frost), continuously variable – optional further frost stages possible
・3-facet prism circular, rotatable and indexable
・Motorised, infinitely adjustable high-speed iris
・Electronic dimmer 0%–100%
・Electronic shutter with pre-programmed pulse and ramp functions
・Sparkle effect
・Focus system with auto-focus function

■動作
・High-resolution, powerful 3-phase stepper motors
・Precise, very fast and silent movements
・540° Pan / 280° Tilt

■コントロール・プログラム
・USITT DMX-512, RDM
・Ethernet interface with Art-Net and sACN
・Wireless DMX / RDM Lumen Radio CRMX TiMo
・Mini USB-for software update
・Stand-alone mode, Master/Slave function
・Error analysis and DMX analysis

■構造
・Original JB-Lighting slide-in module technology
・Robust, roadworthy design with 4 carrying handles
・Pan/Tilt transport lock
・Fan control for almost noiseless operation, 29 dB(A)
・LCD display with function keys and battery buffer, electronically rotatable
・Neutrik 5pol XLR IN/OUT
・Neutrik etherCON IN/OUT
・Neutrik powerCON TRUE1 IN/OUT

■取り付け方法
・2 Omega brackets with Original Camloc fasteners for quick and convenient installation, with four different fastening options

■電源
・Maximum power consumption 490 VA
・Input voltage range 100 V–240 V, 50/60 Hz
