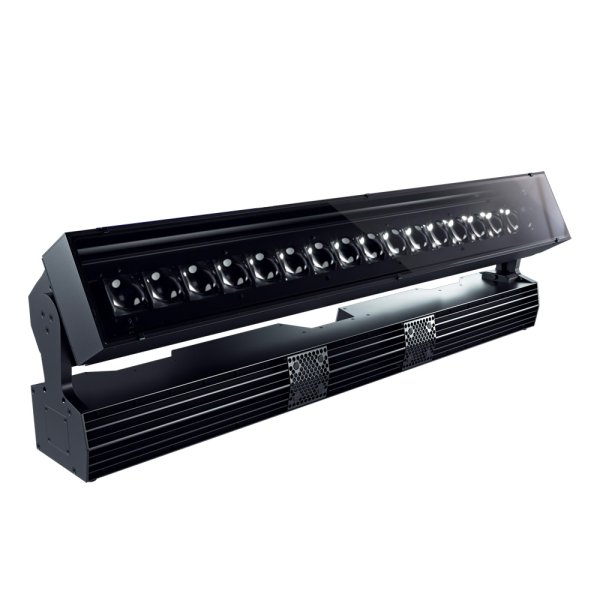

GLP Impression X5 IP Bar（インプレッション X5 IP バー）

The impression X5 IP Bar is an IP65 rated batten fixture that features 18 powerful 40 W RGBL LEDs with incredible output and increased color gamut, GLP’s new iQ.Gamut calibration algorithm, and a 12:1 zoom range from 5° to 60°. It has a new squared lens design that gives an unprecedented curtain of light at its narrowest angle and delivers smooth and homogenous washes all the way out to its widest beam. As part of the new GLP X5 family, it offers a wide feature package including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.

特徴

・The GLP impression X5 IP Bar is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LEDs, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.
・The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.
・As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta/green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.
・The impression X5 IP Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard.
・The impression X5 IP Bar’s enclosure is just as suitable for indoor use on the stage to protect against confetti, fog, pyro and dust.

■LED光源
・18 RGBL LEDs
Light source power – 40 W
Light source lifetime – 50,000 hours
LED refresh rate – low, optimum (default), high 1, high 2, max
CCT – default white point: 6500 Kelvin; optional: 8000 Kelvin; 5600 Kelvin; 4200 Kelvin; 3200 Kelvin
Duv – perfect white point match low Duv values
CRI (Ra) – 8000 Kelvin: 90+ | 6500 Kelvin: 90 | 3200 Kelvin: 85
TLCI – 6500 Kelvin: 90 | 3200 Kelvin: 75
TM-30-15 – 6500 Kelvin: Rf/Rg: 87/105 | 3200 Kelvin: Rf/Rg: 85/110

■■制御
■DMX channels – 18 / 31 / 99 / 64 / 51
5 control modes
Protocol –
DMX (USITT DMX512-A)
RDM (ANSI/ESTA E1.20)
Art-Net
sACN
iQ.Mesh
iQ.DMX
Optional: Lumenradio CRMX @ FPO
Setting and addressing –
Control panel with backlit monochrome graphic display
4 button menu navigation
DMX
RDM
iQ.Mesh
NFC (Collect&Connect)
Software update –
DMX link
Via DProg
Internal Webinterface
iQ.Mesh
Fixture2Fixture Push
High-res channels –
Intensity global
Tilt
Colormix
Performance modes –
Fast
Normal (balanced)
Smooth
Dimming curves –
Linear
Soft
S-curve
Subfixture mode –
Normal
Independent
White points – default white point: 6500 Kelvin; optional: 8000 Kelvin; 5600 Kelvin; 4200 Kelvin; 3200 Kelvin
Other controls –
Stand Alone 1 captured scene
Art-Net/sACN node
Data Conversion
iQ.Mesh
Subfixture split
FPO (Flexible Protocol Option)
Internal webinterface
SW Fixture2Fixture Push

■■エフェクト
■Effects
Dimmer – 0 – 100%; 16 bit
Shutter – strobe, pulse, sparkle, etc.
Color mixing –
RAW
RGBL
x;y
Various settings for color mix priority
CTC (color temperature control) – 2500 – 10,000 Kelvin
CQC (color quality control) –
High output (HO)
Low quality (LQ)
High quality (HQ)
Magenta/green-shift – yes
Tungsten simulation – 8x linked to fix CCT, 8x relative to Colormix
Color wheel – virtual color wheel, 64 LEE referenced colors, rainbow
Pattern effects – 50 dynamic pattern macros with special effects
Tilt movement angle – 195°, 16 bit resolution
Tilt movement speed – super fast

■■接続
■Signal connection –
XLR 5-Pin
In/out
Neutrik etherCON port A & B (failsafe)
Power input –
Neutrik powerCON TRUE1
In/out

■電源
Power input – 100 – 240 VAC / 50 – 60 Hz
Power supply – auto-ranging electronic switch-mode
Power supply cable –
US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft.
EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
Max. power (@230V) – 750 W

■光学システム
・Output – up to 8780 lumens
Min. zoom – 5°
Max. zoom – 60°
Zoom ratio – 1:12

■Mounting Options
・Mounting –
2 eyelets for safety cable
4 pairs of 1/4-turn locks for two rigging/installation brackets
Orientation – any
Location –
Indoor permanent
Outdoor temporary

■Thermal Specifications
・Cooling – combined convection and forced air
Max. ambient temperature (Ta max.) – 45 °C
Min. ambient temperature (Ta min.) – 5 °C / 40 °F
Total heat dissipation (calculated, +/-10%) – 2,600 BTU/h

■筐体
Housing color – black
Housing material –
High-impact flame-retardant thermoplastic
Aluminum
Steel metal plates
Protection rating –
IP 65
Construction features –
Hand gaps for carrying
Tilt-Lock-System
Alignment System
Threads for external accessory

サイズ

・Height (head vertical) 311 mm
Height (head straight down) 263 mm
Width (across yoke) 1,000 mm
Length – 141 mm
Weight 26 kg

参照

■メーカーサイト
https://www.germanlightproducts.com/product/impression-x5-ip-bar/
