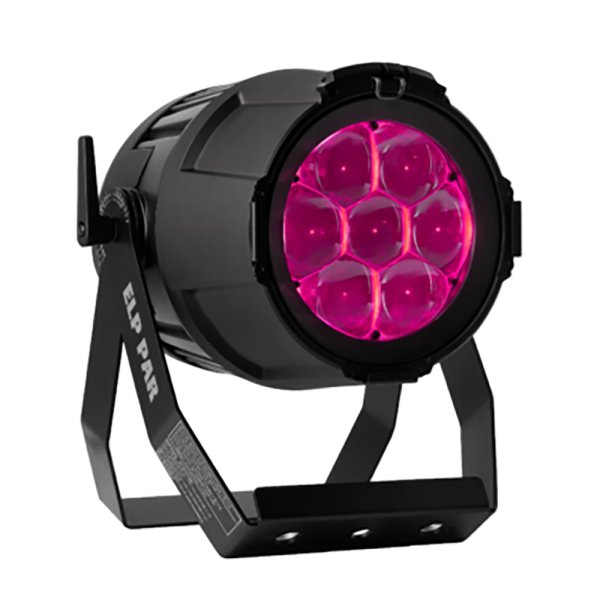

Martin ELP PAR(ELP パー)
商品詳細
The Martin ELP PAR static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features.
The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that allows RGB color mixing around your desired white point.
Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.
特徴
・Light engine: 7 x 40W RGBWFull-gamut color-calibration system
CTC control: 1,800–12,850 K
Lumen output: 3,500 lm
Intensity: 390,000 cd
Zoom: 4.2 - 58°
Quick Focus mode allows installation and focusing without the need for a console operator
Clear of projection indicators allow quick installation
Angled power and data connections support a clean cable run that does not impede the fixture or installation
Included truss and floor-mounting yoke with omega bracket connectivity
Low-noise 33 dB Theatre mode operation
IP20 rating
Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in) (inc. bracket)
Weight: 7.8 kg (17.2 lbs.)
仕様
■ダイナミックエフェクト・Color mixing: RGBW
Color presets: 48 color presets, virtual color wheel effects
Color temperature control: Variable 1,800 – 12,850K
Electronic dimming: 0 - 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Zoom: Motorized
■制御とプログラミング
・Control options: DMX, RDM
DMX channels: 14
16-bit fine control: Dimming, RGB, zoom
LED color management modes: Raw, extended and calibrated
DMX address setting: Control panel with OLED display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Firmware update: via DMX using Martin Companion
■光学
・Light source: 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
Beam angle (half-peak): 4.2° - 38.7°
Field angle (one-tenth peak): 5.1° - 58.6°
Cutoff angle (3%): 5.7° - 69.6°
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions
■PHOTOMETRIC DATA
Wide beam: 3525 lumens
Narrow beam: 1445 lumens
Fixture Center Intensity Narrow Beam: 390083 cd
Fixture Center Intensity Wide beam: 9957 cd
CRI (Color Rendering Index) : >70
CQS (Color Quality Scale): 83
TM-30 Rf (IES TM-30-15 Fidelity Index): 77
TM-30 Rg (IES TM-30-15 Gamut Index): 117
TLCI (Television Lighting Consistency Index): 61
CCT: 6500 Kelvin
LED refresh rate - Standard Mode: 3600 Hz
LED refresh rate - Theatre Mode: 19200 Hz
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
■構造
・Housing: Aluminum and composite
Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
Color: Black
Protection rating: IP 20
■設置に関して
Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
Location: Not for household use, indoor use in dry location only
Orientation: Any
Minimum distance to combustible materials: 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
■接続
・AC power input/output: Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/out: Neutrik 5-pin locking XLR
■電気
・C power: 100-240 V nominal, 50/60 Hz
Typical power consumption: 300 W
Typical half-cycle RMS inrush current at 240 VAC: 8.7 A
Power supply unit: Auto-ranging electronic switch modeA
■代表的な電力と電流
・100-120 V, 60 Hz : 3.0 A, 320 W, Power factor 0.991
220-240 V, 50 Hz: 1.7 A, 320 W, Power factor 0.941
*Measurements made at nominal voltage with all LEDs at full intensity.
Allow for a deviation of +/- 10%.
■熱特性
・Maximum surface temperature: 65° C (149° F)
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)
Total heat dissipation (calculated): 1170 BTU/hr.
サイズ
・Length: 312 mm (12.3 in.)Width: 287 mm (11.3 in.)
Height: 401 mm (15.8 in.) with bracket
Weight: 7.8 kg (17.2 lbs.)
