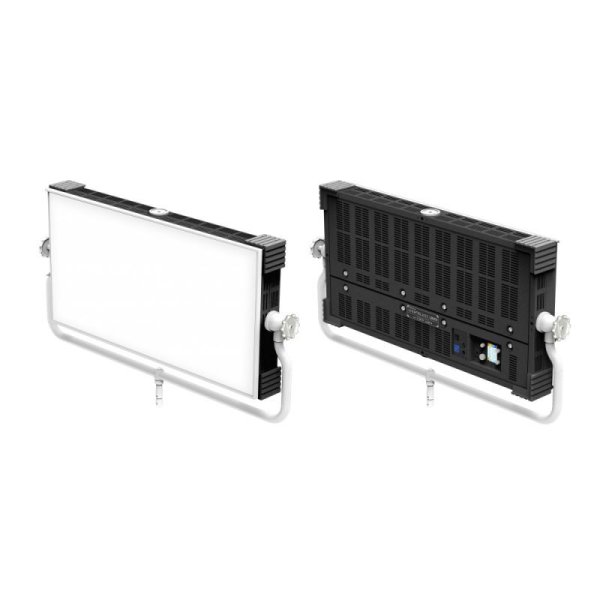

Cineo LB800（シネオ） [新品]

Now with
C2OS Touchscreen Control

■Introducing the new LB800T for 2021, the latest professional lighting tool from Cineo Lighting. The LB800 now represents the latest technological advances offered by Cineo, adding the new C2OS touchscreen control console.

■Cineo has completely re-designed its control strategy, making it as easy to use as your smart phone. A full complement of remote control protocols are supported including DMX/RDM and CRMX wireless, with networking protocols including sACN, ArtNet and Cineo StageLynx. All this in a completely integrated 55 lb. package.

■Features now include:
・Touchscreen control of all operations
・50,000 lumen output
・Variable CCT : 2500K-10,000K, +/- Green control • Saturated color control: HSIK or RGBK
・Single or multi-zone operation
・Unlimited presets and effects
・DMX/RDM, CRMX, Ethernet, WiFi connectivity

■For dynamic lighting effects, the LB800 includes multi-zone operation, a patented Cineo technology, with complete local or remote control over each zone. Effects can be recorded on the fixture using local or remote control. Presets and effects can be edited, played back at variable speed and intensity and transferred via USB or network connection.

■Like all Cineo fixtures, the LB800 uses proprietary phosphor-converted white light LEDs, as well as phosphor- converted saturated color LEDs. These work together to create a balanced, natural-looking spectrum. The saturated color LEDs use the exact same dies as the white LEDs, so all light emitting elements of Cineo products carry identical thermal stability and perform over time with consistent color quality.

■■概要
■Control
・Featuring Cineo C2OS with touchscreen control of all operations

■Output
・50,000 lumen output – 250 fc@10ft / 2700 lx@3m

■Full Color
・Variable CCT : 2500K-10,000K, +/- Green control with saturated color control: HSIK or RGBK

■Endless Possibilities
・Single or multi-zone operation, unlimited presets and effects and DMX/RDM, CRMX, Ethernet, WiFi connectivity

■仕様
・Performance
・Operating system: touchscreen control with C2OS Linux operating system
・Output: 50,000 lumens, 250fc @ 10’, 2700lx @3m (160° Beam Angle)
・Color Control: Variable CCT: 2500K-10,000K Presets at 2700K, 3200K, 4300K, 5600K, 6500K, +/- Green control

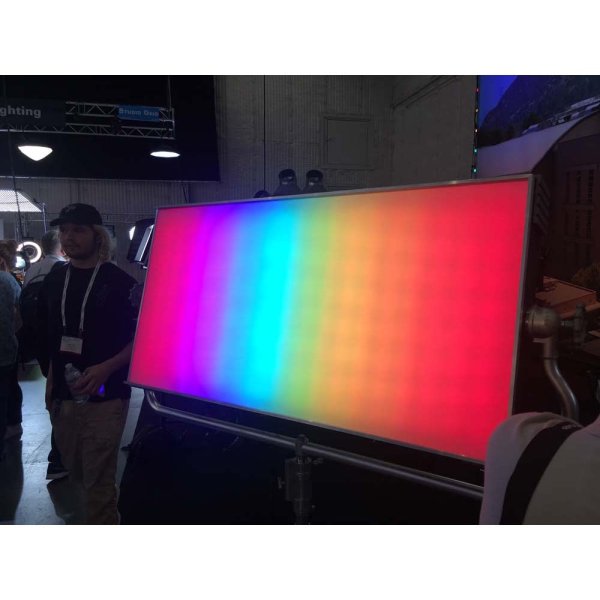

・Variable saturated color with presets at Red, Yellow, Green, Cyan, Blue, Magenta HSIK or RGBK color modes
・User-selectable LUTs Includes legacy CineoColor, Universal Color Space (UCS) Future support for REC.2020, REC.709, ACES
・Local and Remote dimming User-selectable dimming profiles
・Completely flicker-free operation to 10,000 fps
・Connectivity
・DMX/RDM In/Thru/Regen, selectable 8/16-bit control
・Built-in Lumen Radio
・Ethernet and WiFi network connectivity Support for ARTNet, sACN, Cineo StageLynx
・Software upgrade via network or USB
・Effects and Presets
・1, 2 or 10-zone modes, all controlled locally or remotely
・Unlimited In-fixture effects and presets: record, edit, playback and transfer
・Physical

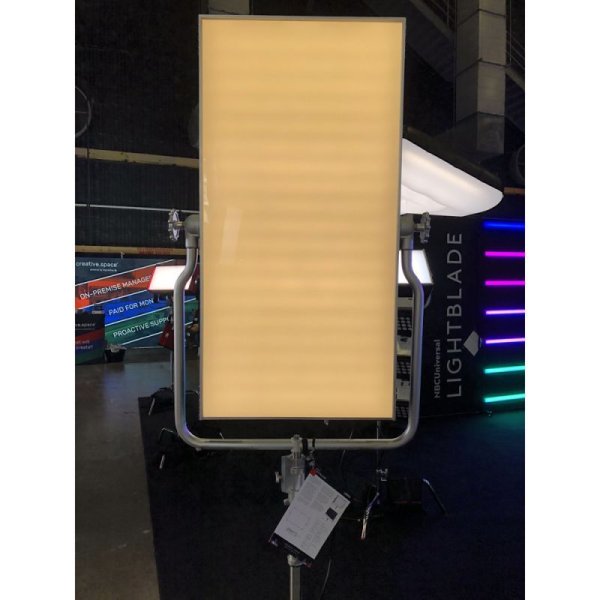

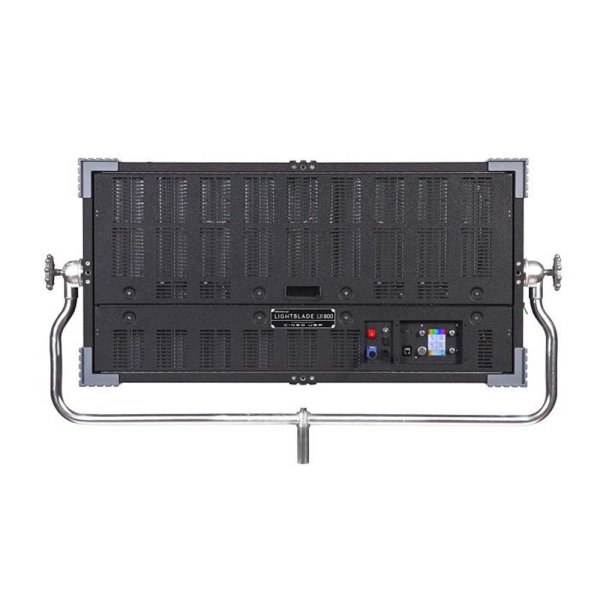

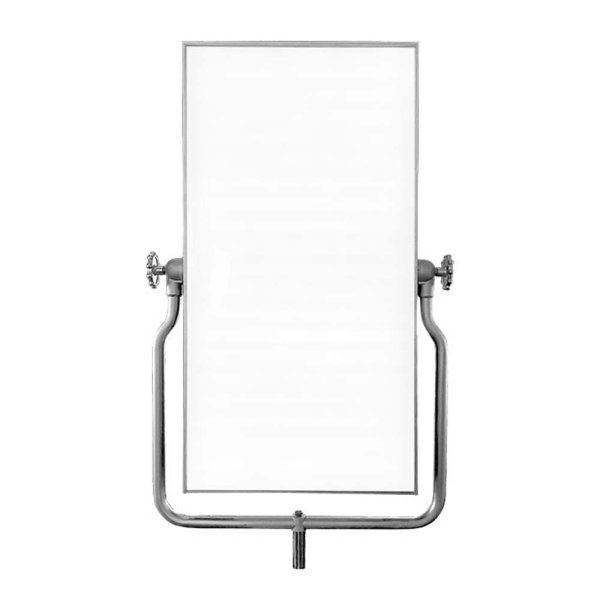

・Includes landscape mounting yoke w/ jr. pin, optional portrait yoke and top-hang harness

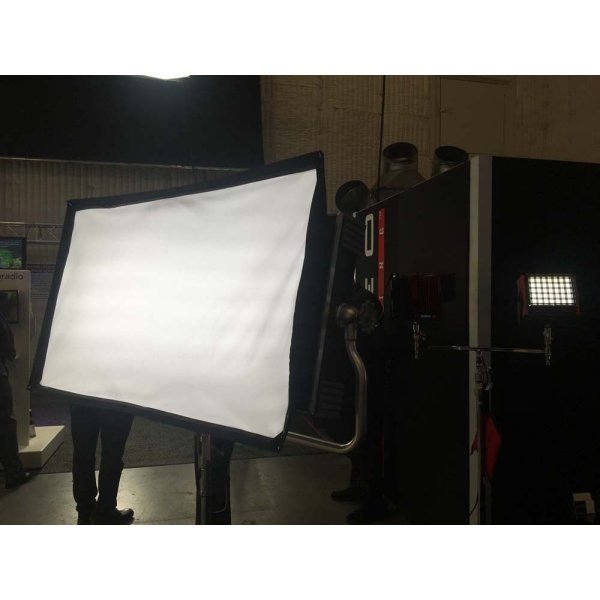

・Optional accessories include TRP Snapbags and Snapgrids

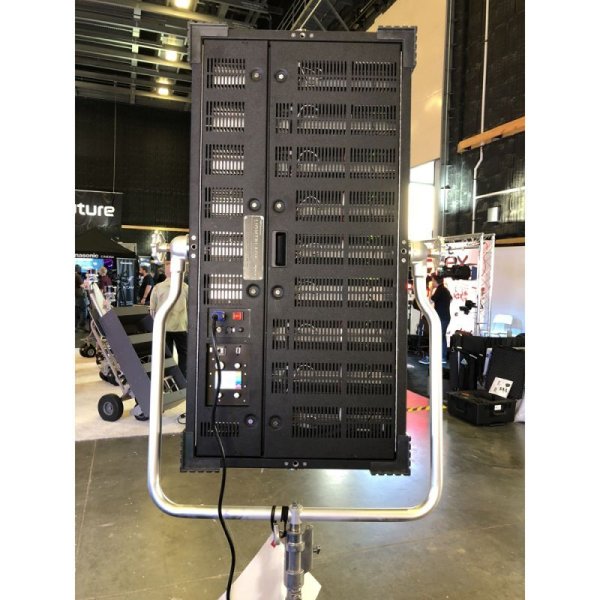

・Silent, passive cooling - no fans
・Size 1.2m w x .6m h x 133mm d

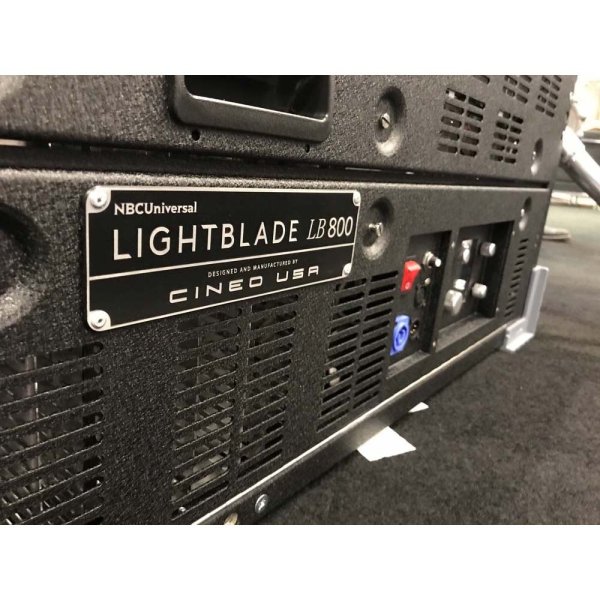

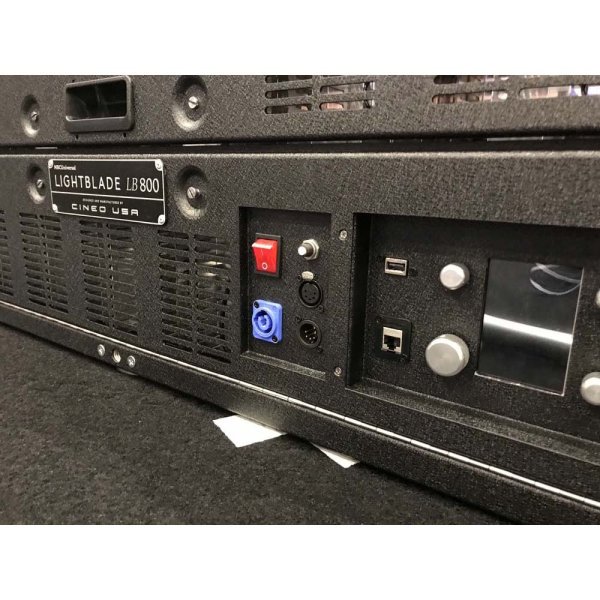

・Power 110-240VAC, 900 watts max. Integrated power supply with PowerCon connector
・Weight 25 kg.
・Environmental Temperature Range -20°C - +40°C
・Max. temperature rise: +40°C
・ETL, cETL, CE pending

■データシート（英語）
https://cineolighting.com/wp-content/uploads/2020/12/LB800-cut-sheet-12-11-20.pdf

■ユーザーガイド（英語）
https://cineolighting.com/wp-content/uploads/2019/01/Cineo-LB800-User-Guide-01-24-19-Text.pdf

■メーカーサイト
https://cineolighting.com/products/lb800/
