Cineo Standard 410（シネオ） [新品]
商品詳細
Beautiful Light
Extended Color Gamut

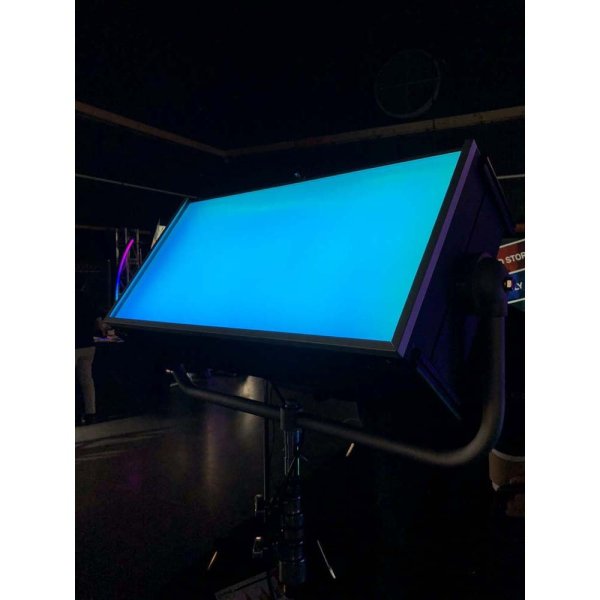

■Cineo has designed a new creative tool to the lighting professional’s arsenal – the Standard 410. Combining our award-winning white-light quality with our innovative saturated color technology, the Standard 410 delivers up to 25,000 lumens of beautiful, easily controllable, full-gamut soft light.

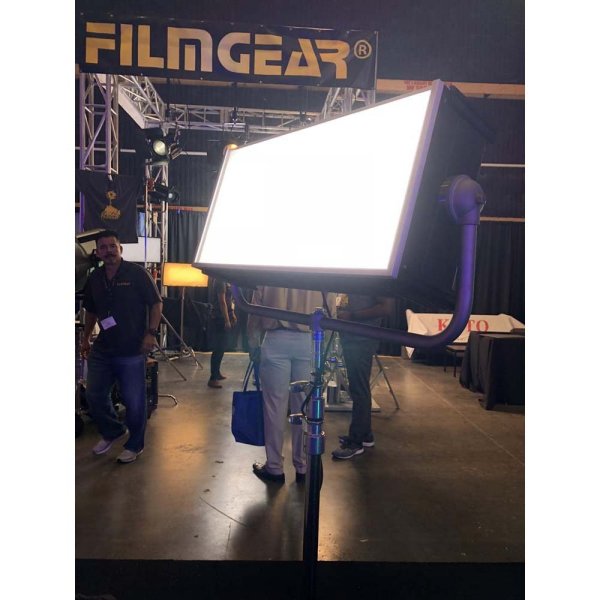

■The Standard 410 boasts a substantial 2’ x 1’ diffused illuminating surface, an integrated weight of 28 lbs., with a maximum power of 410 watts.

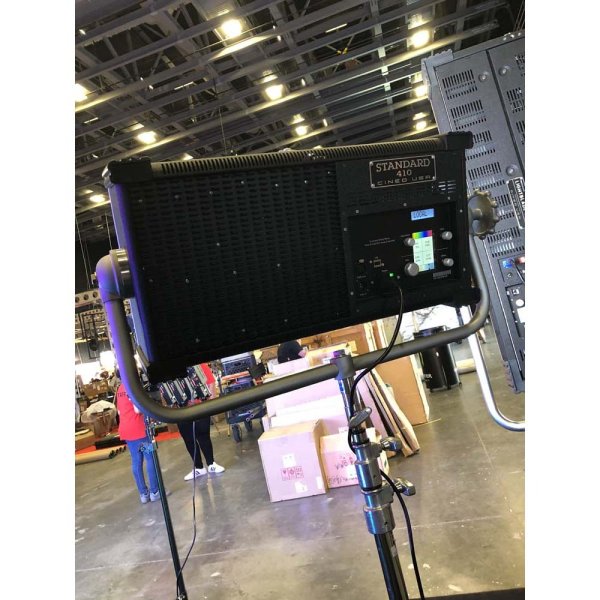

■Creating beautiful light within an extended color gamut is only part of the story. Cineo has developed an intuitive control strategy that allows predictable, repeatable results, either using the graphical control panel or remotely with 8 or 16-bit wired DMX/RDM or built-in wireless CRMX control.

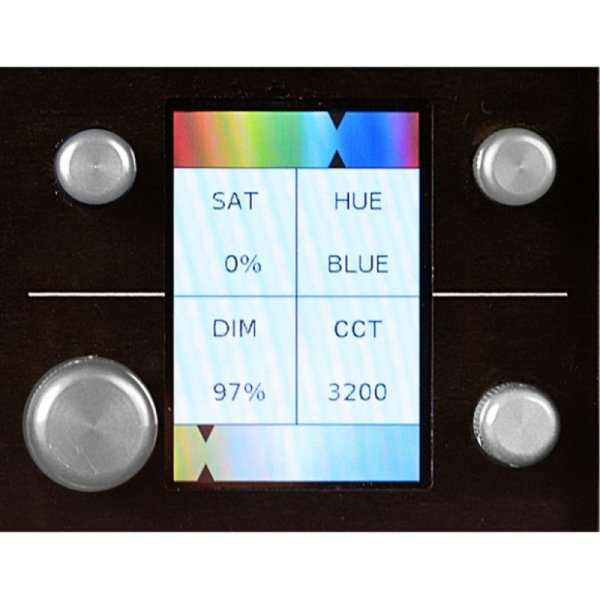

■The strategy is simple: four controls or four DMX channels control the entire fixture in either HSIK mode or RGBK modes of operation:
■HSIK Mode
Dim (I) – Cineo’s Photo-Accurate Dimming maps the 0-100% dimming curve to actual camera stops for precise output control using the MASTER control locally or on the first DMX channel.
■CCT (K) – For color-accurate white light, choose the CCT as you would with any Cineo fixture, using the CCT rotary control or the second DMX channel.
Saturation (S) – Controls the amount of saturated color to be added to the white light, from full white to fully saturated color, managed on the third DMX channel.
Hue (H) – To optionally add saturated color, the HUE control adjusts the hue, the color of which is displayed on the control panel, or managed on the fourth DMX channel.
■RGBK Mode
When controlling the Standard 410 in RGB Mode, setting the CCT (K) value for the camera assures that any adjustment to the RGB primary colors correspond to the correct white point. Designed for theatrical-style control board operation, RGBK mode is available via wired or wireless DMX.
■In addition to our proprietary phosphor-converted white light LEDs, we developed phosphor-converted saturated color LEDs. These work with the phosphor recipes in the white LEDs to create a balanced, natural-looking spectrum featuring Cineo’s deep-red color rendering technology. The saturated color LEDs use the exact same dies as the white LEDs, so all light emitting elements of the Standard 410 carry identical thermal stability and perform over time with identical differential aging. After years of service, color stability remains consistent.
■■概要
■Output
・The Standard 410 puts out up to 25,000 lumens of fully-controllable light and unbeatable color.
■Size
・Measuring in at 24″ x 12″, the powerfully compact Standard 410 weighs less than 27 lbs.
■Silence
・Our passive cooling system requires no fans, alleviating the concern over excess noise.
■Control
・Offers local and remote operation with 4 channels of control.
■仕様
・Input Power: 110-240VAC, 410 watts max.
・Integrated power supply with locking IEC connector
・Fixture Size: 37.4cm x 61cm x 11.5cm
・Weight: 12.7 kg.
・Mounting: Mounting yoke includes TVMP
・LOCAL CONTROL:
・Local Dimming, 0-100%
・Variable CCT with presets at 2700K, 3200K, 4300K, 5600K, 6500K
・Variable saturated color with presets at Red, Yellow, Green, Cyan, Blue, Magenta
・Variable white/color blending
・Preset Store/Recall
・REMOTE OPERATION:
・HSIK or RGBK Personalities
・8-bit or 16-bit DMX operation
・5-pin wired DMX/RDM In and Thru
・Integrated LumenRadio CRMX bi-directional wireless DMX/RDM
・Completely flicker-free operation
・Silent, passive cooling; no fans
・Integrated Power Supply
・Environmental Temperature Range: -20 – +40 C
・Max. temperature rise: +45 C - Thermal Rollback Protected
・ETL, cETL, CE pending
・Made in USA
■データシート（英語）
https://cineolighting.com/wp-content/uploads/2020/10/Cineo-Standard410_Cut-Sheet-N-Aug2019v2.pdf
■ユーザーガイド（英語）
https://cineolighting.com/wp-content/uploads/2020/10/Cineo-S410-User-Guide-090518-FINAL.pdf
■メーカーサイト
https://cineolighting.com/standard-410/
