Aputure LS 60X（アプチャー）

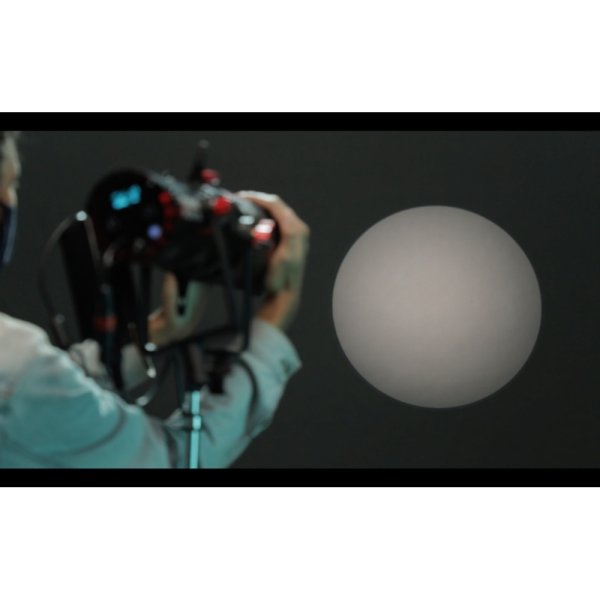

■FOCUS FORWARD
・The LS 60x is a battery-powerable bi-color focusing LED that uses custom aspherical optics to achieve a 15-45° spot-flood beam angle with intense output and flexibility.

■ENHANCED OUTPUT
・The LS 60x punches way above its weight class as a 60W Expanded Bi-Color Focusing LED fixture that outclasses the output of a 300W tungsten Fresnel and outpaces comparable LED lights. With its custom, Aputure aspherical optics, the LS 60x (@ 5600K) can output 30,000+ lux in full spot, or 5,200+ lux in flood mode.

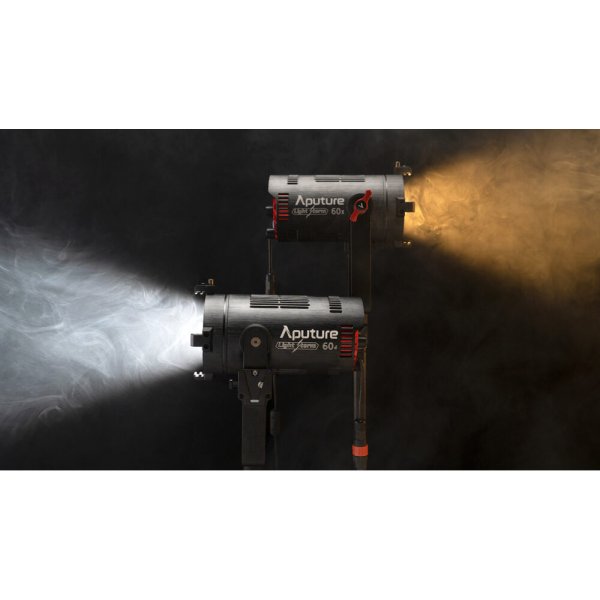

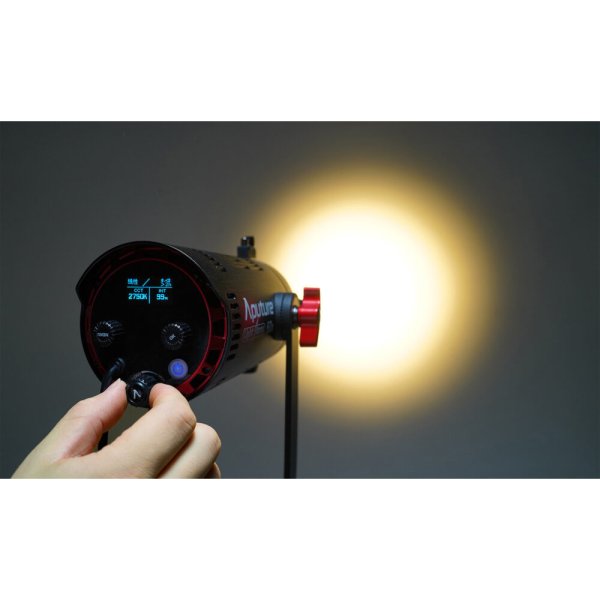

■EXPANDED BI-COLOR
・Matching the LS 300x, the LS 60x features an expanded bi-color CCT range of 2700K-6500K, with built-in CCT presets, to give filmmakers the ability to add just a touch of warmer or cooler colors to their scene.

■RELIABLE COLOR
・The LS 60x Bi-color LED continues Aputure’s ambition to provide high-quality, color-accurate LEDs to all filmmakers, with CRI/TLCI scores of 95+, and SSI (Tungsten) of 86, and an SSI (D56) of 74.

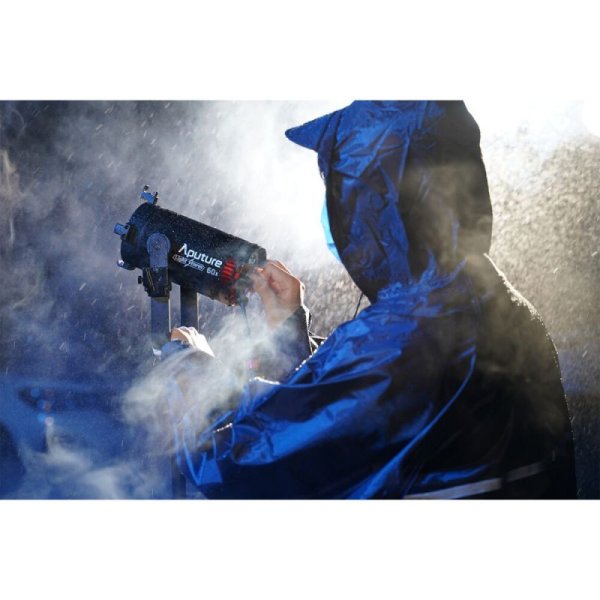

■WEATHER-RESISTANT DURABILITY
・Designed to withstand the rigors of any film set, the LS 60x lamp head &DC power connector feature a weather-resistant design as a sign of its durability, so filmmakers can feel free to take it on any adventure.

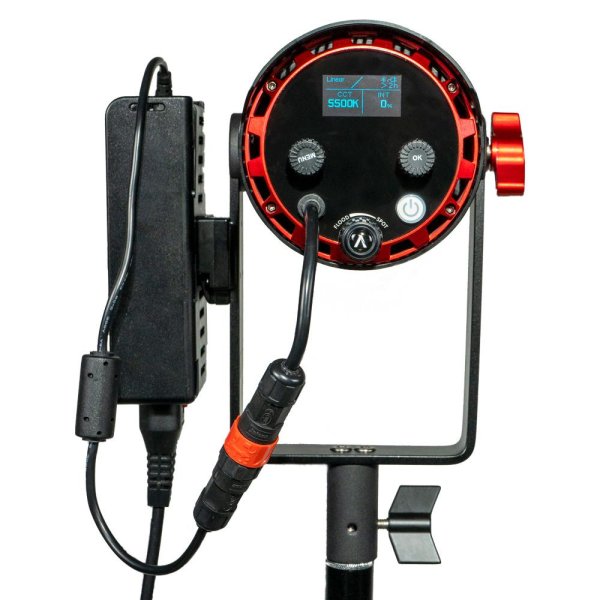

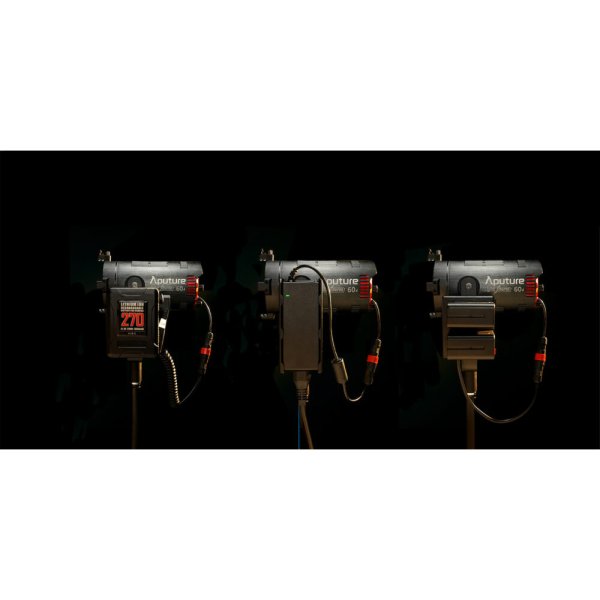

■POWER SOLUTIONS

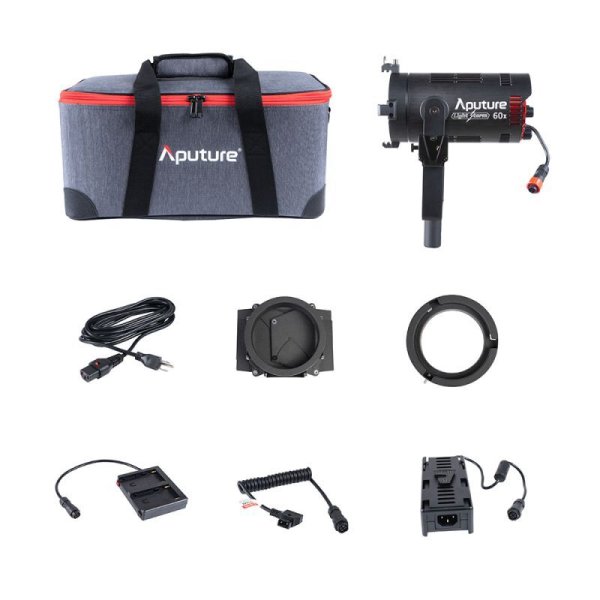

・With a variety of included power solutions, the LS 60x is a light designed to solve problems in ways no other fixture can. The modular V-Mount Receiver on its yoke can hold all of its power options, including the AC adapter, D-Tap (V-Mount) Batteries, and the intelligent Dual NP-F Battery Plate.

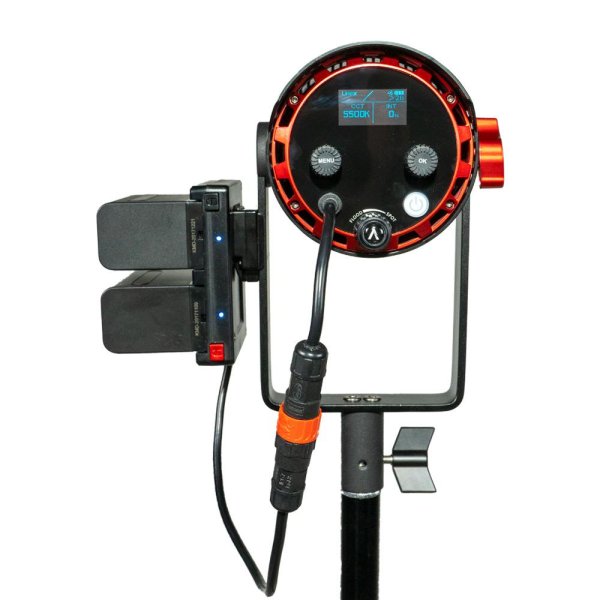

■FLEXIBLE OUTPUT
・Light Storm fixtures like the 120d II, 300d II, and 300x can be powered using only a single battery, and the LS 60x is no different. The LS 60x can achieve full output with a single D-Tap battery or two NP-F batteries, or half output with a single NP-F battery, using its intelligent Dual NP-F Battery Plate.

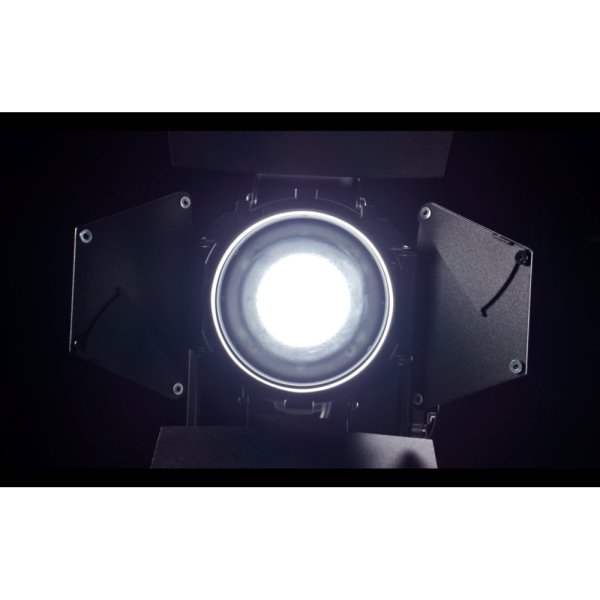

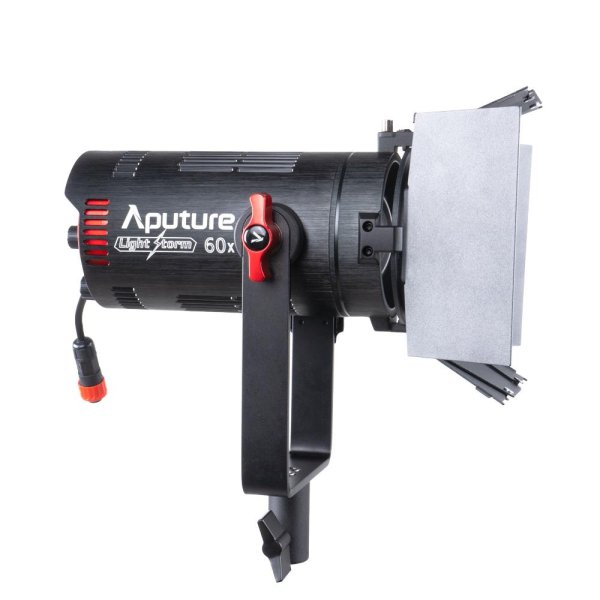

■8-LEAF BARNDOORS
・Included with the LS 60x, the 8-Leaf Barndoors allow for more precise control than traditional barndoors due to the two pairs of helper flags that can adapt the light output’s size and shape.

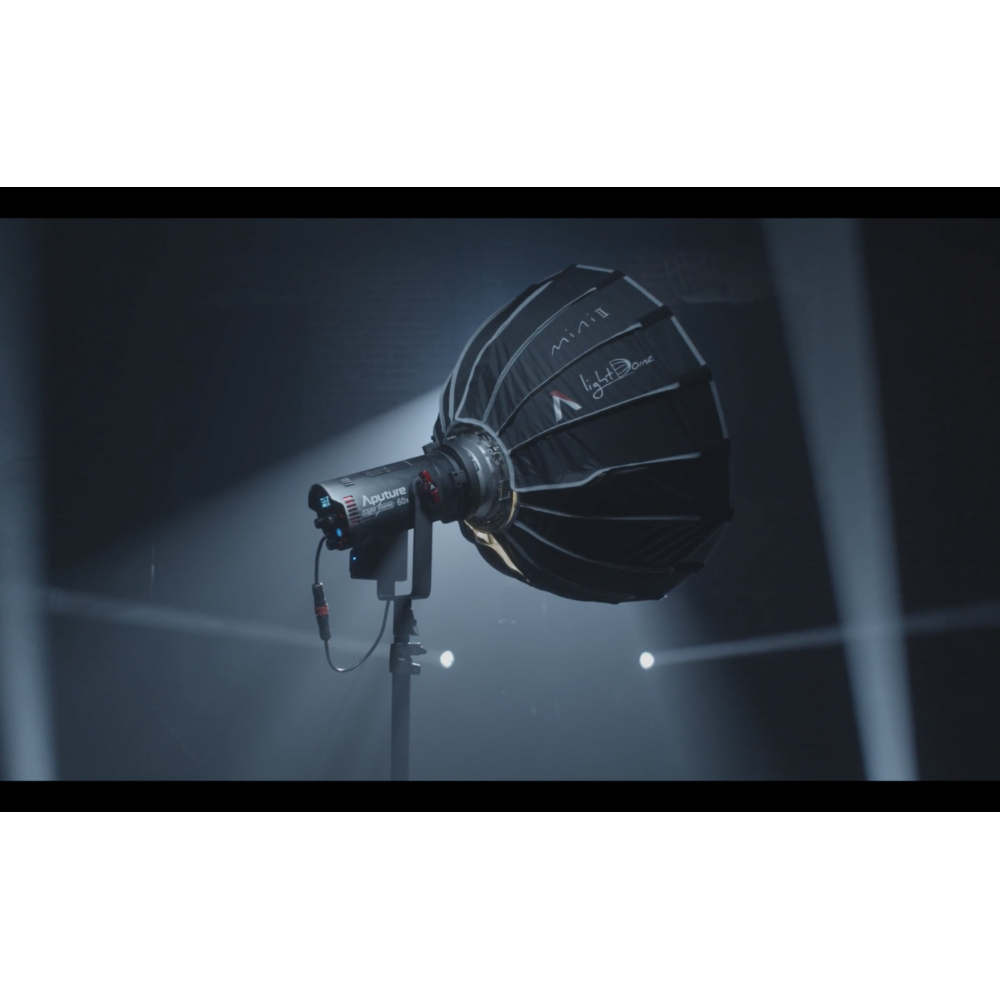

■BOWENS MOUNT ADAPTABILITY
・As a Light Storm fixture, the LS 60x can utilize a wide variety of lighting modifiers. In addition to its 8-Leaf Barndoors, 60x includes a custom Bowens Mount Adapter that attaches to its accessory mount and allows it to use Bowens Mount soft light modifiers.

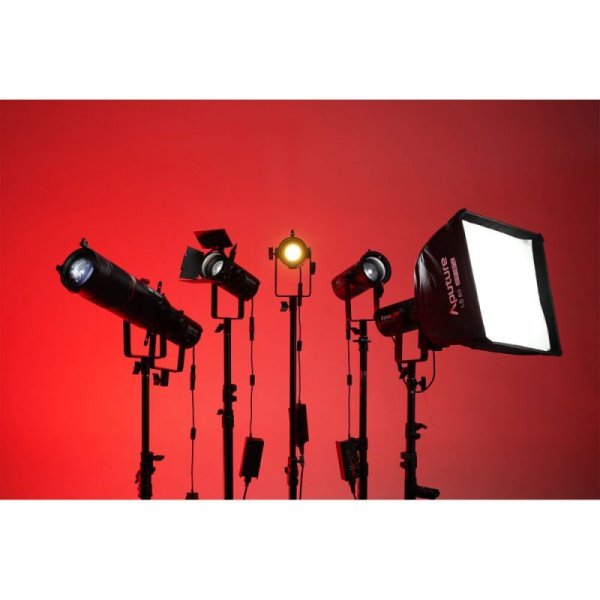

■LIGHT SHAPING TOOLS
・The LS 60x is also compatible with the LS 60 Softbox, a square soft light modifier, and the Spotlight Mini Zoom, a precision protection attachment with a 2X optical zoom range, both of which are designed specifically for the LS 60d & 60x.

■BUILT-IN LIGHTING FX
・The 60x launches with 9 built-in lighting FX, such as Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, Explosion, and Fire, with adjustable color temperature control.

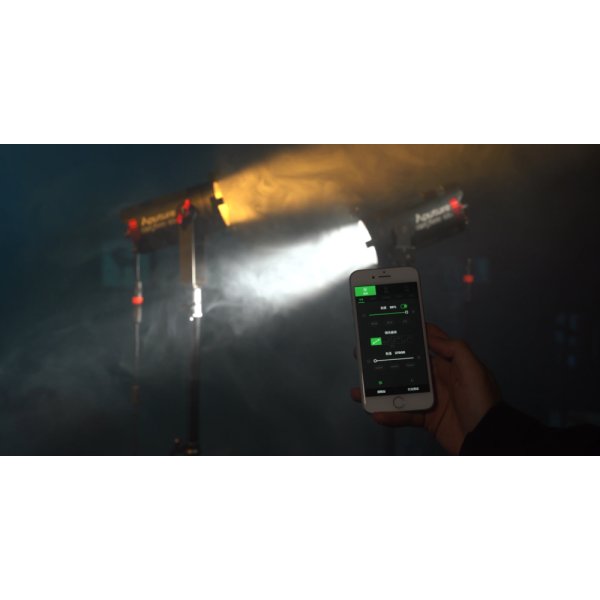

■SIDUS APP CONTROL
・Joining the Sidus Link ecosystem, the LS 60x gains unprecedented, quick & easy wireless control for any fixture in its class. As part of a mesh network, the LS 60x conducts two-way communication with the controlling smartphone or tablet and all other Sidus Mesh fixtures, resulting in a more robust network and longer range.

■概要
・15°〜45° Adjustable Spot/Flood Beam Angle
・Up to 30,000 lux+ @ 1 meter in full spot (15°)
・Color Temperature: 2700K~6500K
・Weatherproof (Dust and Water Resistant)
・Use One NP-F Battery for Half Power; Two for Full Power
・D-Tap Battery Operable
・V-Mount Receiver on Yoke
・Sidus Link Mobile App Control
・Custom Bowens Mount Adapter
・Compatible “Spotlight Mini Zoom” Projection Lens & “LS 60 Softbox”

■仕様
・CCT 2700K~6500K
・CRI CRI
・TLCI TLCI
・CQS 95 (ave.)
・SSI (D56) 74
・SSI (Tungsten) 86
・Beam Angle 15°〜45°
・Output Wattage 60W
・Max Power Draw 90W
・Operating Current <6.5A (Max)
・Operating Voltage (Power Supply) 19V
・Operating Voltage (Battery) Sony NP-F 6~8.4V (Single battery) 12~16.8V (Dual battery)
・Operating Voltage (Battery) D-Tap 12 ~ 16.8V
・Operating Temperature -20°C 〜45°C / -4°F 〜113°F
・Control Methods On-board, Sidus Link (Sidus MeshTM)
・Wireless Operating Range (Bluetooth) ≤ 80m / 262.5ft
・Screen Type OLED
・Weatherproofing Yes
・Cooling Method Active Cooling
・Cable Type: Head Cable 4-pin DC Twist Lock Cable
・Cable Type: Power Cable Locking IEC Power Cable (4m)
・Accessory Mount LS 60 Mini Mount
・Accessory Mount Diameter 120mm
・Mounting 16mm | 5/8in (Baby Pin)
・Weight: Lamp Head 1.8kg
・Weight: Barn Doors 222g
・Weight: Power Supply 370g
・Weight: NP-F Battery Plate 134g
・Weight: Total w/ Case 4.475kg
・Dimensions: Lamp Head without Yoke 209*116mm
・Dimensions: Lamp Head with Yoke 280*156*127mm
・Dimensions: Barn Doors Closed 134*108*33mm
・Dimensions: Power Supply 135*56*34mm
・Dimensions: NP-F Battery Plate 103*87*25mm

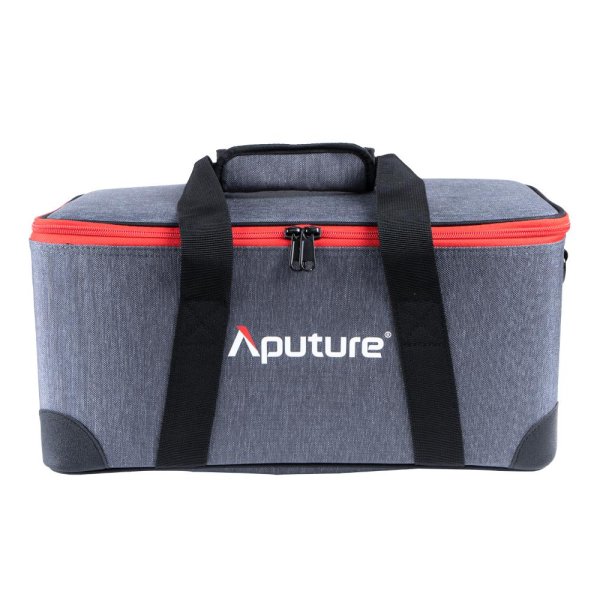

・Dimensions: Case 420*200*200mm
・PHOTOMETRICS
・CCT Distance 1m 3m 5m
・2700K Spot (15°) 25,110 Lux 3,125 Lux 1,116 Lux
・2700K Spot (15°) 2,332 Fc 290 Fc 104 Fc
・2700K Flood (45°) 4,464 Lux 525 Lux 201 Lux
・2700K Flood (45°) 415 Fc 49 Fc 19 Fc
・5600K Spot (15°) 33,480 Lux 4,241 Lux 1,451 Lux
・5600K Spot (15°) 3,110 Fc 394 Fc 134 Fc
・5600K Flood (45°) 5,803 Lux 703 Lux 268 Lux
・5600K Flood (45°) 539 Fc 66 Fc 25 Fc
・6500K Spot (15°) 32,364 Lux 4,018 Lux 1,395 Lux
・6500K Spot (15°) 3,007 Fc 373 Fc 129 Fc
・6500K Flood (45°) 5,580 Lux 670 Lux 246 Lux
・6500K Flood (45°) 519 Fc 61 Fc 22 Fc

■マニュアル（英語）
https://www.aputure.com/wp-content/uploads/2021/01/LS-60d-Product-Manual_202101211.pdf
