Aputure SPOTLIGHT MOUNT（アプチャー スポットライトマウント）

■A WHOLE NEW CLASS
・The world’s first Bowens spotlight mount. Achieve a greater degree of control with the Spotlight Mount’s internal shutter blades for sharp cuts. Acquire pinpoint accuracy when projecting your light with your choice of 3 different lenses.

■PRECISION OPTICS
・In addition to allowing the 120d II to produce 10 times its original output, the high-resolution lenses produce an even beam of light, with minimal light falloff on the edges, while maintaining a shift in color temperature of less than 200 degrees Kelvin.

■MINIMAL EDGE FRINGING
・The Spotlight Mount’s new lens technology minimizes chromatic aberrations around the edge of the illumination circle. Compared to similar ellipsoidal fixtures, the Spotlight Mount significantly decreases its edge color fringing to a mere 1mm.

■LIGHT SHAPING CONTROL

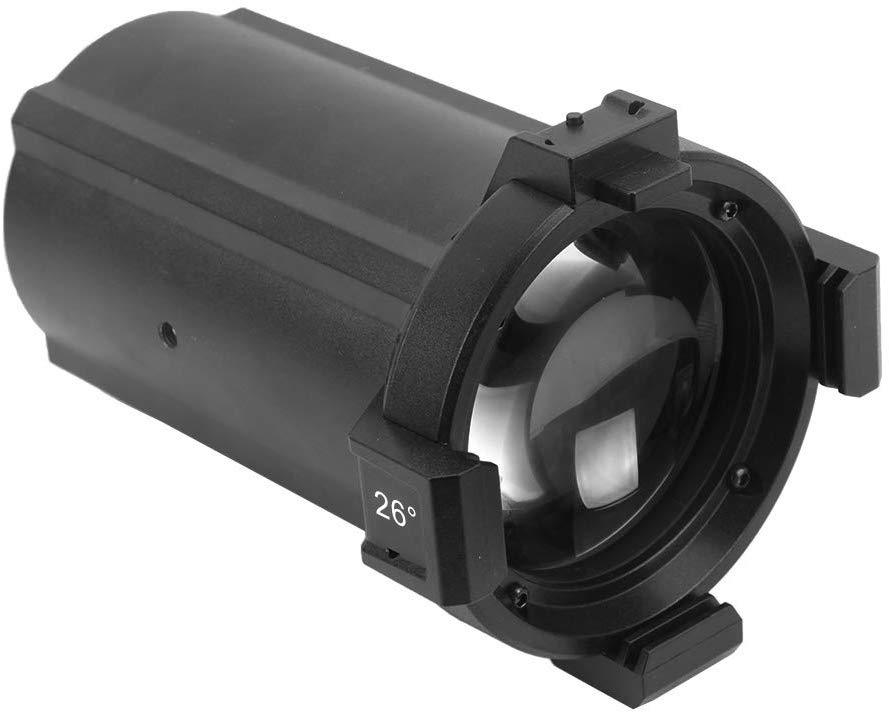

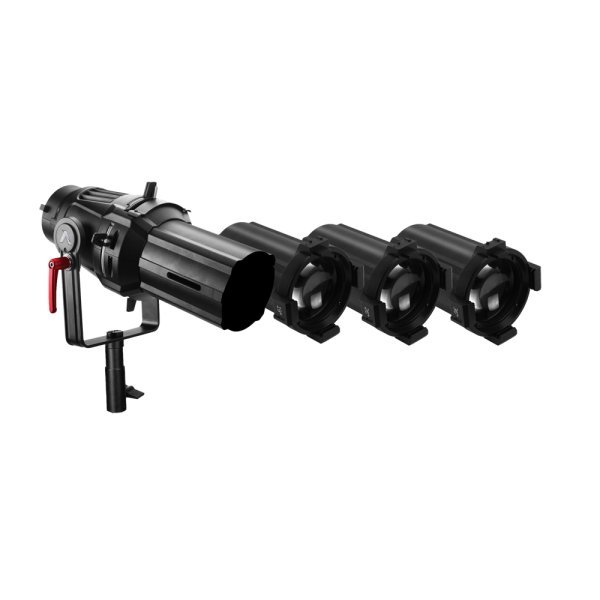

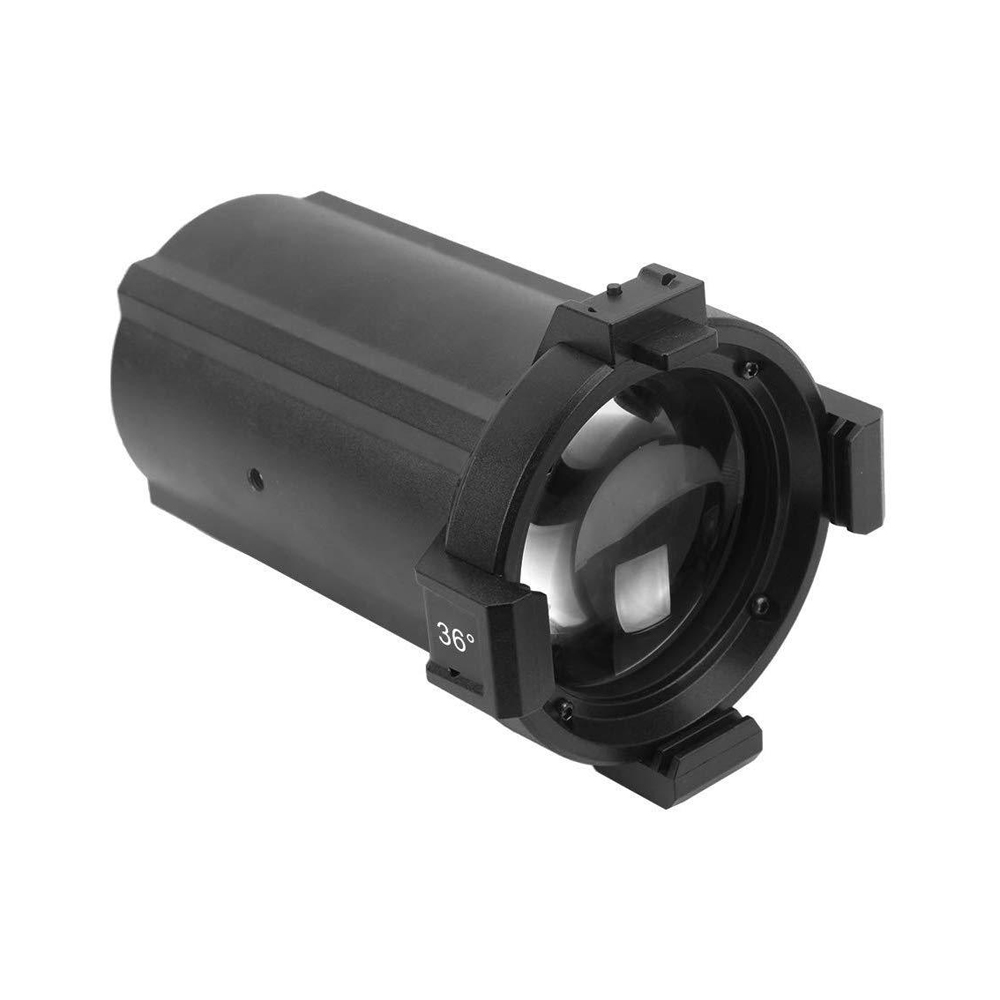

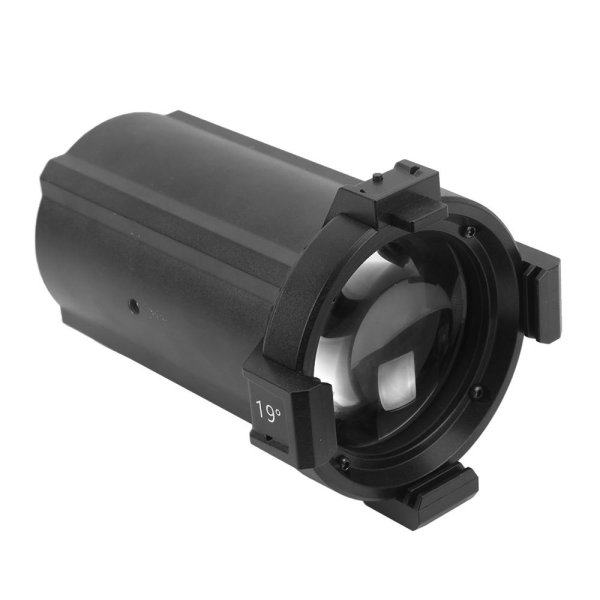

・The Spotlight Mount also offers simple user-interchangeability between Aputure’s 19°, 26°, and 36° lenses. Combined with the internal shutters, filmmakers will be able to gain more control of the shape of their light.

■ADD FLAIR TO YOUR SET

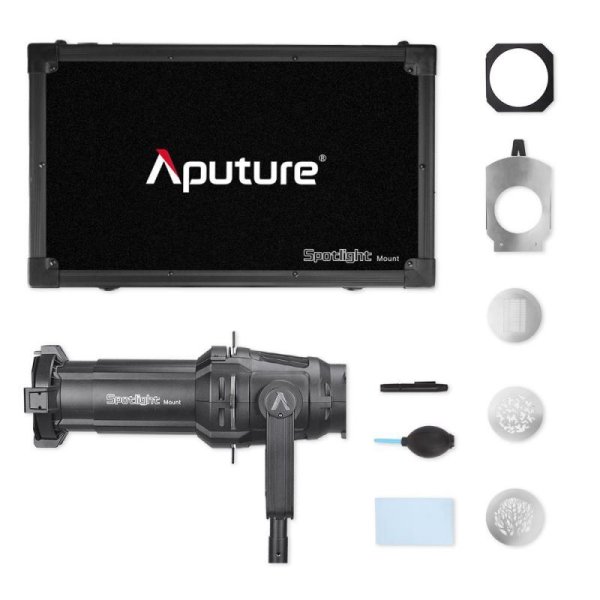

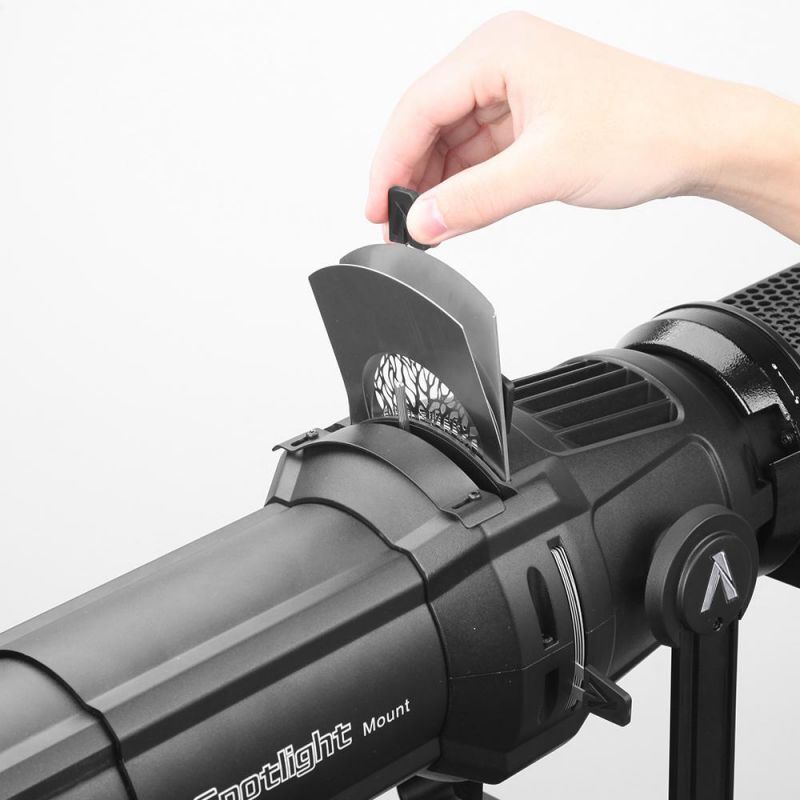

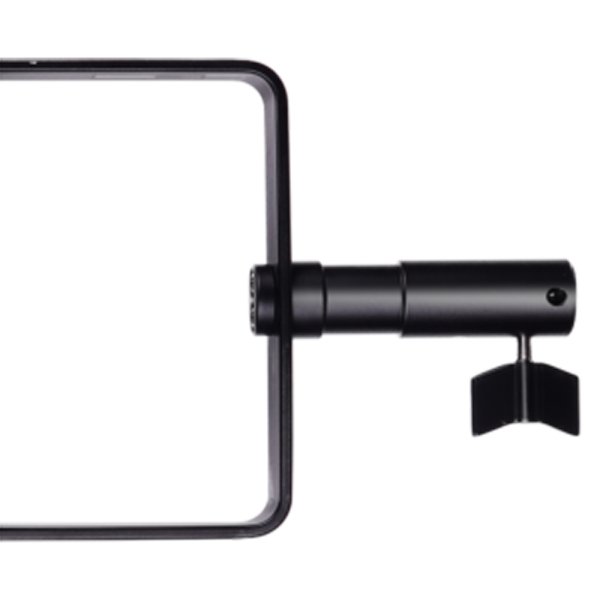

・With the included B-size Gobos, Gobo Holder, and gel frame the Spotlight Mount allows for even further light manipulation, to easily project any shape or color you can think of.

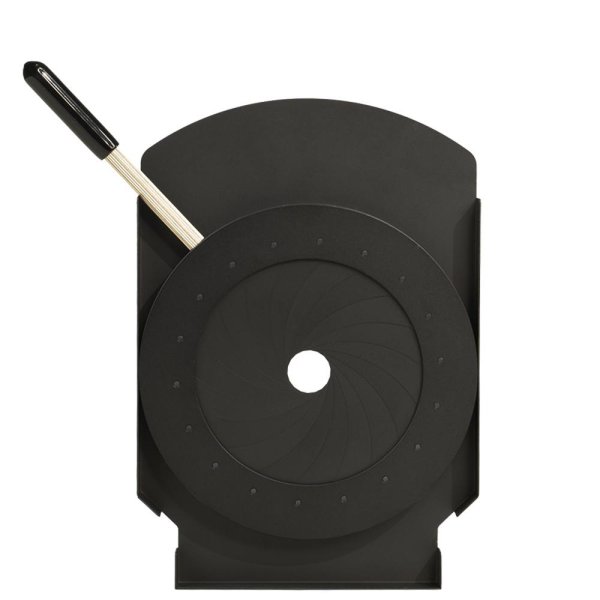

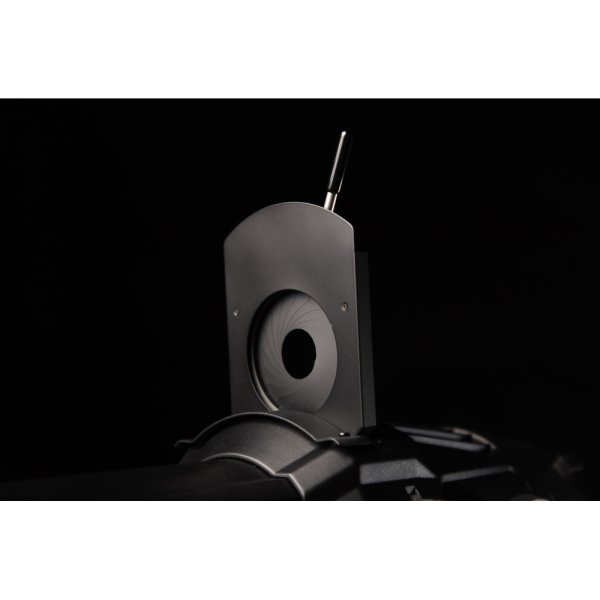

■OPTIONAL IRIS
・The optional 18-bladed iris also allows filmmakers to further hone in the shape and size of the Spotlight Mount’s light output.

■MODULAR DESIGN

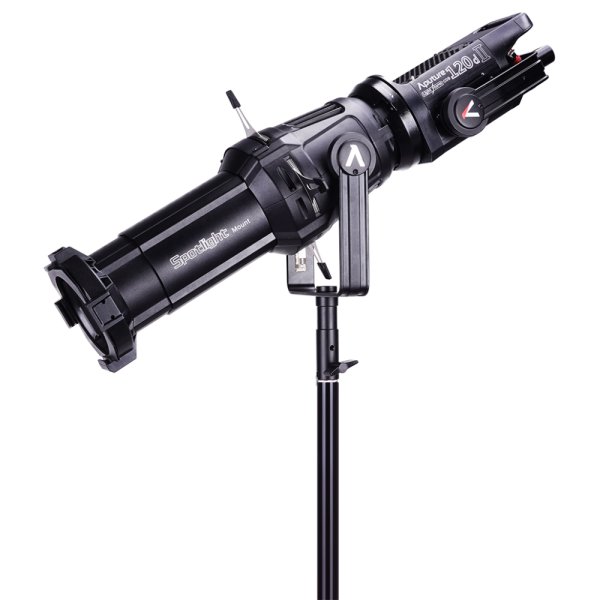

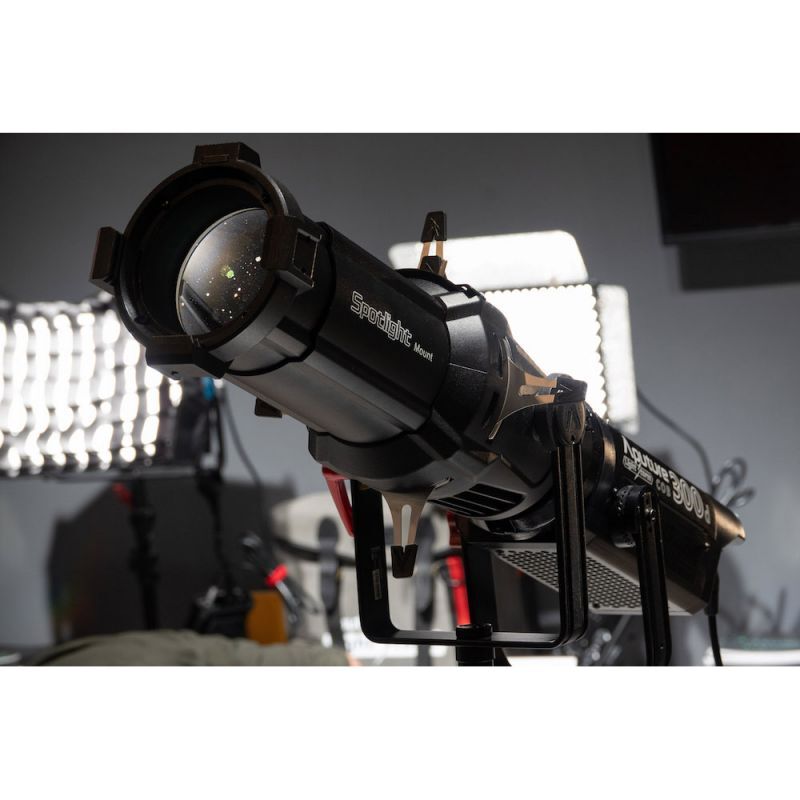

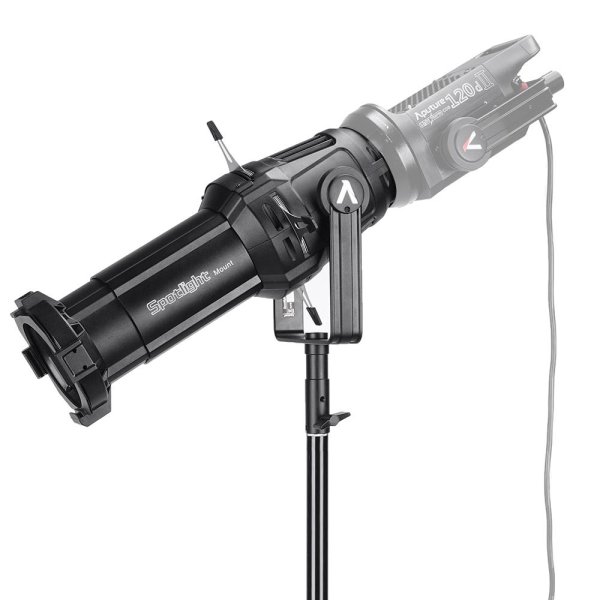

・The Spotlight Mount maintains our philosophy of versatility and modularity by utilizing the Bowens mount for use with our 120d Mark II and 300d lights.

■DUAL JUNIOR/BABY MOUNT

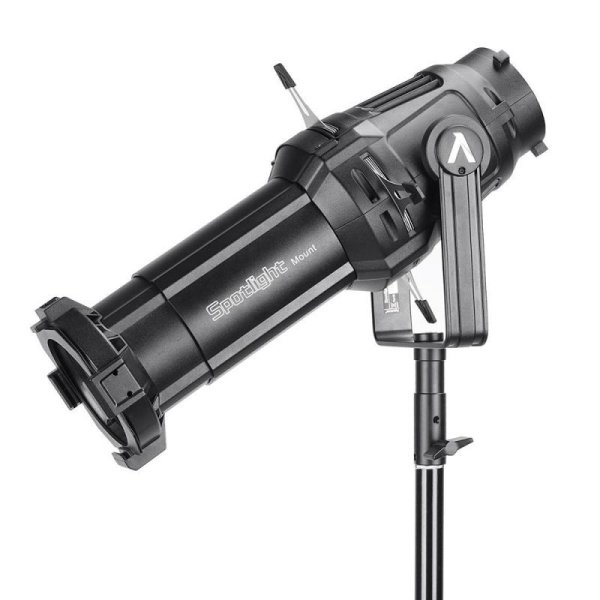

・The Spotlight Mount was designed with rigging in mind. We gave the Aputure Spotlight a dual Junior/Baby mounting pin so it can be attached to anything from a C-Stand to a Combo Stand or underslung from a lighting grid.

■DURABLE METAL BODY
・With an aluminum alloy die-cast metal body, the Spotlight Mount maintains Aputure’s standards for durability while utilizing a more lightweight design than typical tungsten ellipsoidal lights.

■概要
・Interchangeable Lens (19°, 26°, and 36°)
・Aluminum Alloy Die-Cast
・Minimal Edge Fringing (1mm @5m)
・Std. Bowens mount, Modular Design
・Hi-Res Lens (2K Resolution)
・Easy Sharp Cuts (Internal Shutter Blades)
・Even Light Spread
・Std. B-size Gobo
・Removable Gel Frame
・Dual Junior / Baby Mount
・Low CCT Deviation (+-200K)
・10X Light Output w/ 120d II
・Multi-Slots for Gobo/IRIS

■仕様
・Distance Model Lux (No modifier) 19° (Lux/Beam Diameter) 26° (Lux/Beam Diameter) 36° (Lux/Beam Diameter)
　1m
　　C120d II 6100 62200 / 25cm 37500 / 42cm 19620 / 60cm
　　C120d 3900 37300 / 25cm 24450 / 42cm 12970 / 60cm
　　C300d 9050 60000 / 25cm 46600 / 42cm 32500 / 60cm

　1.5m
　　C120d II 2464 23590 / 42cm 13900 / 66cm 8040 / 90cm
　　C120d 1742 15740 / 42cm 9910 / 66cm 5870 / 90cm
　　C300d 3770 24330 /42cm 20100 / 66cm 12350 / 90cm

　3m
　　C120d II 711 6280 / 90cm 3620 / 133cm 2175 / 180cm
　　C120d 457 3860 / 90cm 2387 / 133cm 1376 / 180cm
　　C300d 1109 5970 / 90cm 4910 / 133cm 3250 / 180cm

　5m
　　C120d II 300 2283 / 154cm 1280 / 220cm 772 / 300cm
　　C120d 187 1435 / 154cm 855 / 220cm 509 / 300cm
　　C300d 460 2300 / 154cm 1872 / 220cm 1270 / 300cm

　10m
　　C120d II 105.3 554 / 314cm 318 / 440cm 196.8 / 600cm
　　C120d 72.9 372 / 314cm 232 / 440cm 144.5 / 600cm
　　C300d 161.3 569 / 314cm 498 / 440cm 332.7 / 600cm

■SIZE
・Product Dimensions 434.5x218.7x357mm
・Box Dimensions 455X290x260mm

■WEIGHT
・19° 4.59kg
・26° 5.02kg
・36° 5.11kg

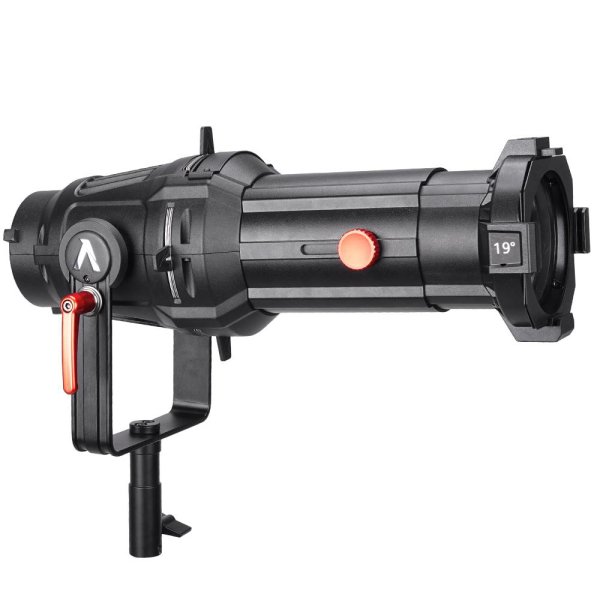

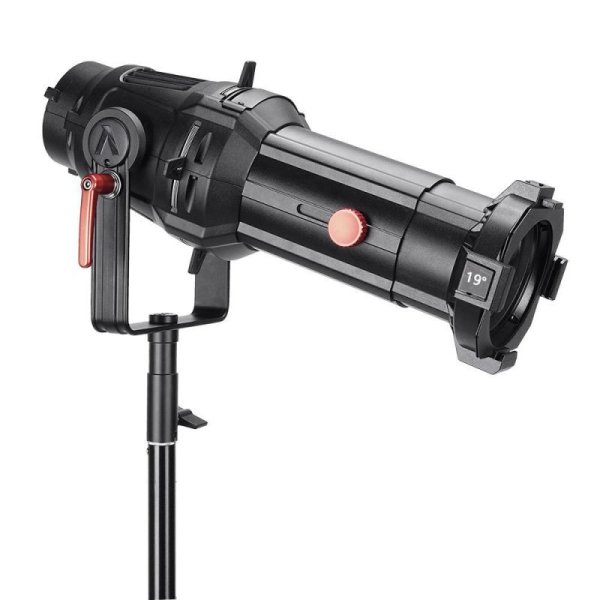

■ABOUT 19° SPOTLIGHT MOUNT
・Perfect for anyone who needs max. Light output and wants accurate control of light beam;
・Suitable for large setup when you need the Light beam to be strong;
・19° Spotlight Mount has twice the light output of 36° and 20% more than 26°;
・It’s beam diameter is approx. 1/2 of 36° Spotlight Mount.

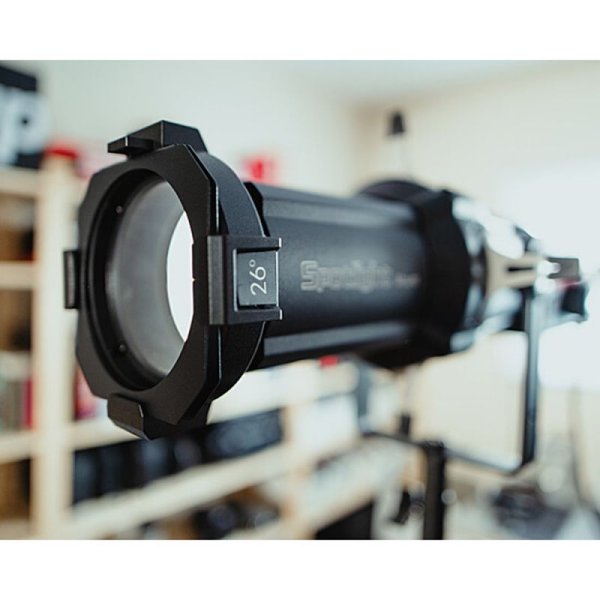

■ABOUT 26° SPOTLIGHT MOUNT
・If both light output and beam diameter is important to you, this maybe the perfect solution;
・It has approx. 20% less output than 19° Spotlight Mount;
・Beam diameter approx. 65% of 36° Spotlight Mount;
・More versatile comparing to other 2 options design suitable for more kinds of setups.

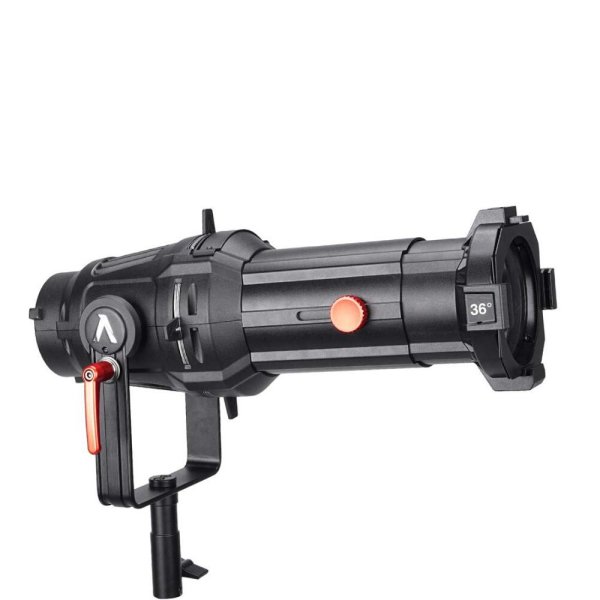

■ABOUT 36° SPOTLIGHT MOUNT
・Perfect for restricted setup where wide beam of light is required;
・@3m distance, it has a beam diameter of 180cm which is twice as wide as 19° Spotlight Mount;
・36° Spotlight Mount has the least light output among the three options.

■バリエーション
・Mount 19°
・Mount 26°
・Mount 36°
・Lens 19°
・Lens 26°
・Lens 36°
・Iris

■マニュアル（英語）
https://www.aputure.com/wp-content/uploads/2019/10/Spotlight-Mount_Product_Manual_EN.pdf

■メーカーサイト
https://www.aputure.com/products/spotlight-mount/
