LITEGEAR LiteRibbon Cinema Daylite, X1（12V/24V）5m（ライトギア ライトリボンシネマ デイライト） [新品]

■概要
・LiteRibbon Cinema Daylite X1 12V offers cinema-quality emitters with CRI and full-spectrum output. These emitters are created with the finest materials available for accurate simulation of Daylite sources.
・LiteRibbon Cinema is the signature flagship LiteRibbon series, and is the single best applied phosphor LED product available in the industry. Cinema Series is 30% brighter than the previous VHO Pro LiteRibbon. New solder pads are included, and are staggered in between the LED’s and the cut points – means bussing is 90% faster and easier.
・This all-new LiteRibbon proudly joins the LiteGear Cinema family of unified color-space products including S2 LiteMat, LiteMat Plus, and LiteTile Plus.

■共通仕様
・Product Line LiteRibbon
・Product Series Cinema Series
・Product Description HD-X1
・Product Length 5 Meter
・Color Name Daylite White
・Color Details 6200K
・Chromaticity (CIE 1931) x-0.3264 , y-0.3337
・Color Consistency + / – 100K
・Product Markings DayLite
・Color 1 (of 2) 6000
・Color 2 (of 2) 6000
・X Series X1
・Watts / LED 0.1667
・LEDs / PCB 60
・LEDs / Meter 120
・Watts / PCB 10
・Watts / Meter 20
・Watts Total 100
・LED Quantity 600
・Amps / Segment 0.08
・LED Pitch 8.33
・PCB width (mm) 10
・PCB length (mm) 500
・Max. length (mm) 5000
・PCB Mask Color White
・Rear Mounting Material 3M 300SLE
・Input Lead Length (mm) 500
・Input Connector PH3.F
・Lead Conductor Qty 3
・Number of Circuits 2
・Connection Type Solder
・Power Supply Type C.V. (Constant Voltage)
・Indoor/Outdoor Indoor
・Operating Ambient Temp. (C) -20 ~ +50
・Storage Temp (C) -30 ~ +80
・Thermal Requirements No
・CRI ra 97
・CQS-Qa 93
・TLCI 96.8
・TM-30 Rf 91
・TM-30 Rg 100
・Typical Availability
・PCB Material 2 Layer Adhesiveless Flex
・Min. Bend Radius* (mm) 20
・Emitter Type 2835
・IP Rating IP 20
・Rated Life (Hours) 50000
・Humidity% 85, non condensing
・Safety Certification cULus, CE
・RoHs Compliant Yes
・Beam Angle 120
・lm/Segment
・Lumens per meter
・Luminous Efficacy lm/W

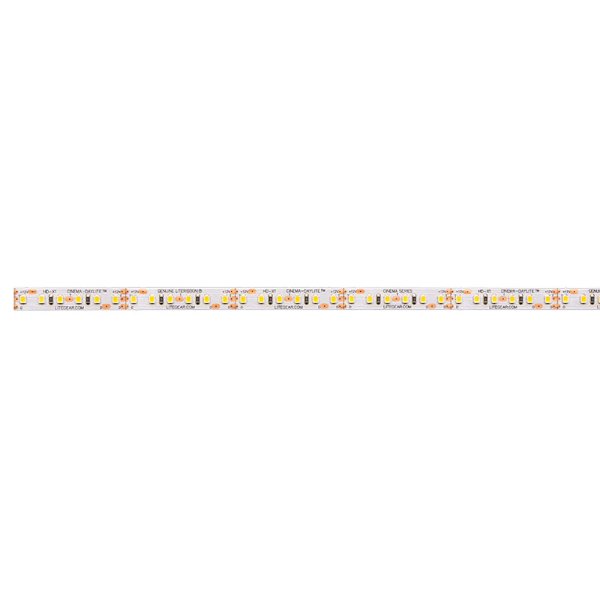

■仕様（12V）
・Rated DC Voltage 12
・Input Voltage (Range, DC) 8 ~ 13.5
・Nominal Input Voltage (DC) 12
・Input Voltage (Max., DC) 14
・Ma / LED 0.139
・LEDs / Segment 6
・Watts / Segment 1
・Amps / PCB 0.83
・Amps / Meter 1.67
・Amps / Total 8.33
・Segment Length (mm) 50
・Segments / PCB 10
・Max. Operating Temp (C) 70ºC
・Part No. LR-CS-12-DAY-HD-X1

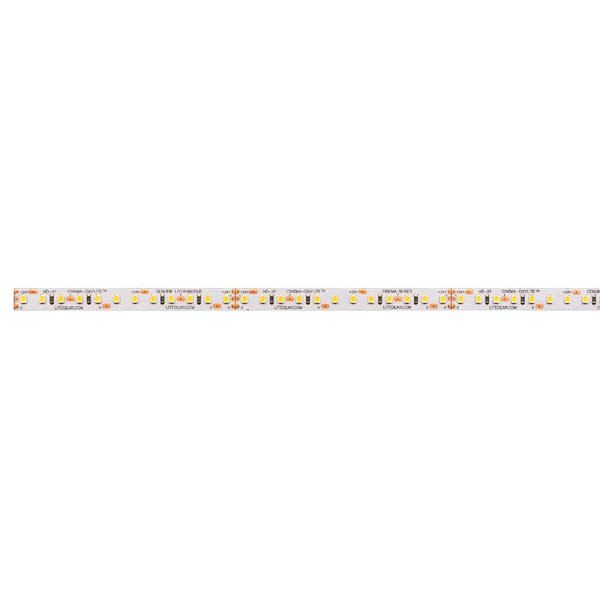

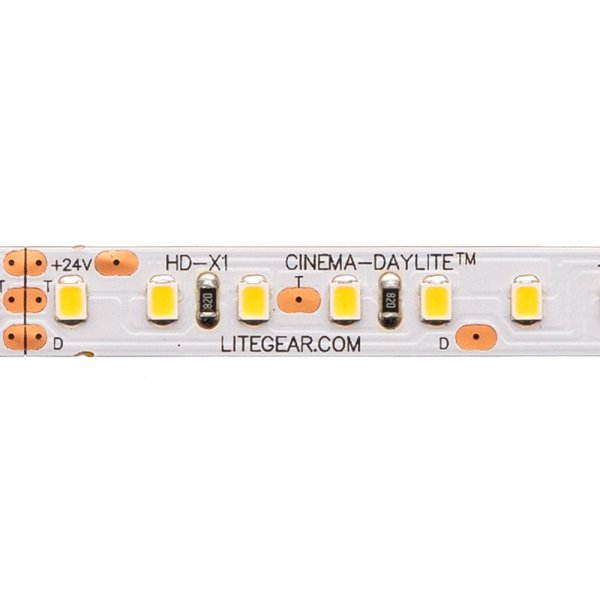

■仕様（24V）
・Rated DC Voltage 24
・Input Voltage (Range, DC) 16 ~ 26
・Nominal Input Voltage (DC) 24
・Input Voltage (Max., DC) 26
・Ma / LED 0.069
・LEDs / Segment 12
・Watts / Segment 2
・Amps / PCB 0.42
・Amps / Meter 0.83
・Amps / Total 4.17
・Segment Length (mm) 100
・Segments / PCB 5
・Max. Operating Temp (C) 58ºF (70ºC)
・Part No. LR-CS-24-DAY-HD-X1

■モデル番号
・SKU: LR-CS-12-DAY-HD-X1（12V）
・SKU: LR-CS-24-DAY-HD-X1（24V）

■データシート
https://www.litegear.com/wp-content/uploads/2020/10/LiteRibbon-Cinema-Daylite-X1-Data-Sheet.pdf

■メーカーサイト（12V）
https://www.litegear.com/product/lr-cs-hd-x1-day-12/

■メーカーサイト（24V）
https://www.litegear.com/product/lr-cs-hd-x1-day-24/
