LITEGEAR LiteRibbon Chroma, Cine-Five, RGB+HY（12V/24V）5m（ライトギア ライトリボンクロマ） [新品]

LiteCard Cine-Five RGB+HY features cinema-quality 95+ CRI hybrid with the ability to add in crisp RGB color accents.

■概要
・Introducing the finest and most adjustable hybrid LED LiteRibbon available. The new revolutionary Cine-Five features cinema quality 95+ CRI hybrid with the ability to add in crisp RGB color accents. This is achieved by using the single best-applied phosphor LEDs available in the industry.
・While Cine-Five is technically part of the Chroma family, at its core, it’s essentially LiteGear’s truly most adjustable Hybrid LiteRibbon. Add in teal or magenta, or any color you desire to your high CRI whites. You’ll never have to worry about adding active gel colors to your LiteRibbon again. You will always feel prepared for anything a set demands from you because Cine-Five is never the wrong answer; it can be absolutely anything.
・Cine-Five LiteRibbon X1 is available in 12V and 24V versions. It makes the perfect companion to LiteGear’s Studio 5X8 Dimmer, which has a built-in Cine-Five mode that will make the user experience incredibly streamlined and simple.

■共通仕様
・Optical System:Flexible LED tape
・Color Name:Cine-Five
・Power:120W (total potential power per 5 meter roll)
・CCT:Hybrid 2600K (+/-300K), 6000K (+/-300K)
・CRI:95+ (Daylite), 95+ (Tungsten)
・TLCI:98 (Daylite), 96.2 (Tungsten)
・Beam Angle:120°
・Connector:Bare Wire
・Color Space Compliant:Yes (with appropriate controller)
・Green/Magenta:Yes (with appropriate controller)
・Cut Segments per Meter:10
・Total LED Quantity:300
・LEDs per Meter:60
・LED Spacing:16.5 mm Center to Center
・Dimming Range:0-100%
・Mounting:Adhesive backing
・Operating Temperature:-10°C to +50°C
・LED Lifetime:50,000 Hrs
・IP Rating:20
・Certifications:UL Listed (Canada/US), CE Compliant (Europe)

■サイズ
・Weight:131.5g per 5 meter roll, including wire lead
・PCB Width:12 mm
・Ribbon Overall Thickness:2.2 mm
・Max Length:5 m

■バリエーション
・SKU: LRC-12-RGBHY-60-X1：12V, 5 m
・SKU: LRC-24-RGBHY-60-X1：24V, 5 m

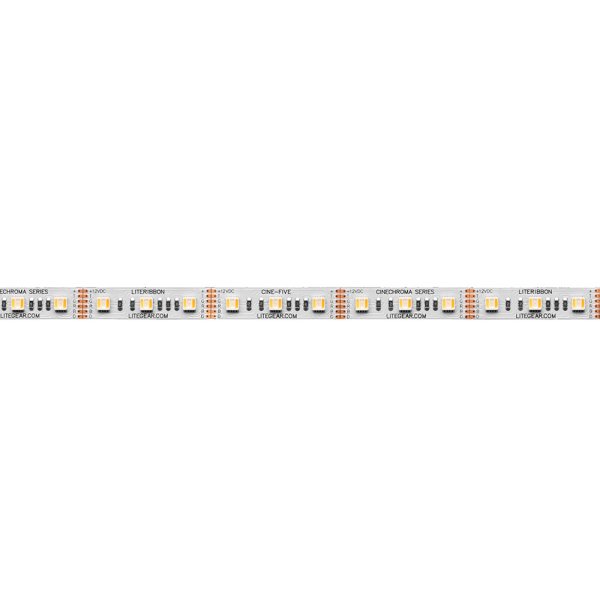

■仕様（12V）
・Voltage Input:12 VDC nominal (8-13.5 VDC constant voltage)
・Current:10A (total potential current per 5 meter roll)
・Lumens (lm) Whites:320.6 (Tungsten), 360.7 (Daylite)
・Lumens (lm) Colors:141.0 (Red), 299.4 (Green), 65.1 (Blue)
・Cut Segment Length:50 mm
・LEDs per Cut Segment:3

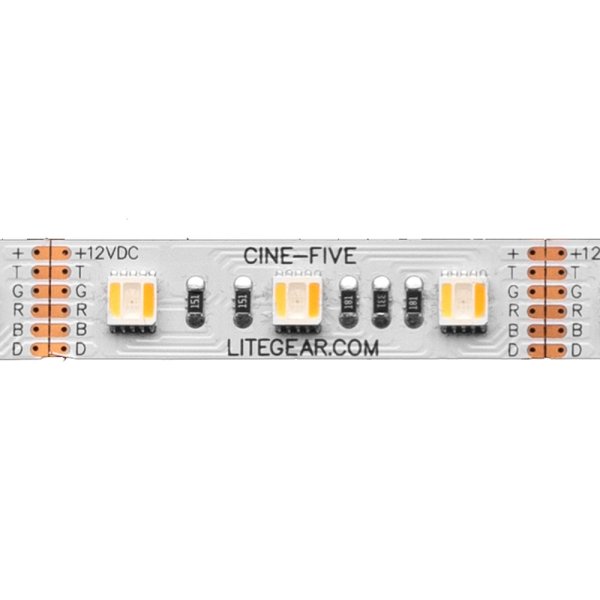

■仕様（24V）
・Voltage Input:24 VDC nominal (20-25.5 VDC constant voltage)
・Current:5A (total potential current per 5 meter roll)
・Lumens (lm) Whites:321.1 (Tungsten), 360.9 (Daylite)
・Lumens (lm) Colors:142.6 (Red), 302.2 (Green), 142.6 (Blue)
・Cut Segment Length:100 mm (3.94 in.)
・LEDs per Cut Segment:60

■データシート（英語）
https://www.litegear.com/wp-content/uploads/2019/11/LiteRibbon-Chroma-Cine-Five-Data-Sheet.pdf

■メーカーサイト（12V）
https://www.litegear.com/product/cine5-x1-12/

■メーカーサイト（24V）
https://www.litegear.com/product/cine5-x1-24/
