LITEGEAR LiteCard, Cinema Series, Standard Density, Hybrid(12V/24V)(ライトギア ライトカード) [新品]

LITEGEAR LiteCard, Cinema Series, Standard Density, Hybrid(12V/24V)(ライトギア ライトカード) [新品]

販売価格はお問い合わせください。

商品詳細

■概要
・LiteCard Cinema Series Standard Density Hybrid features a flexible array of emitters can be cut to your desired size and powered using any Hybrid LiteDimmer.
・The LiteCard Standard Density will continue to operate even when segments are removed. Solder the segments together and create an endless number of light-emitting shapes.
・Individual pieces can be cut out and will continue to still operate. Solder the pieces back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile). Tile together to create large arrays of LiteRibbon quickly. 50W (25W Tungsten and 25W Daylite).

■共通仕様
・Optical System: Flexible LED tape
・Color Name: Cinema Hybrid
・Power: 50W
・CCT: Hybrid 2600K (+/–100K), 6000K (+/–100K)
・Beam Angle: 120°
・Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite)
・Segments per Card: 24
・Total LED Quantity: 288
・LEDs per Cut Segment: 12
・LED Spacing: 20 mm
・Dimming Range: 0-100%
・Operating Temperature: -20°C to +50°C
・Connector: Bare Wire
・Mounting: Adhesive backing
・LED Lifetime: 50,000 Hrs
・IP Rating: 20
・Certifications: UL Listed (Canada/US), CE Compliant (Europe)

■サイズ
・Weight:0.14 kg
・PCB Dimensions: 240 mm x 480 mm
・Card Overall Thickness: 2.2 mm
・Segment Dimensions: 60 mm x 80 mm

■バリエーション
・SKU: LC-SD-2448-12:12V

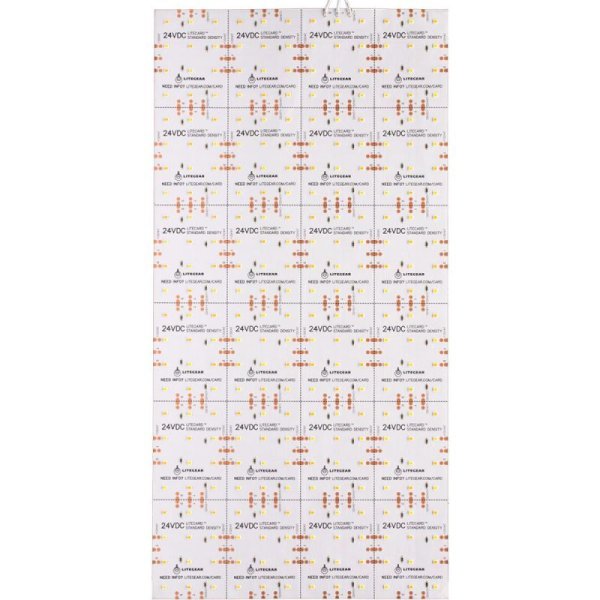

・SKU: LC-SD-2448-24:24V

■仕様(12V)
・Voltage Input:12V DC nominal (8-13.5V DC constant voltage)
・Current: 4.17A
・CRI: 95+ (Tungsten), 95+ (Daylite)
・TLCI: 97 (Tungsten), 96 (Daylite)

■仕様(24V)
・Voltage Input:24V ver. : 24V DC nominal (20-25.5V DC constant voltage)
・Current: 2.08A
・CRI: 95+ (Daylite), 95+ (Tungsten)
・TLCI: 97 (Daylite), 96 (Tungsten)

■データシート(英語)
https://www.litegear.com/wp-content/uploads/2019/06/LiteCard-Cinema-Data-Sheet-Standard.pdf

■メーカーサイト(12V)
https://www.litegear.com/product/led-litecard-cinema-series-hybrid/

■メーカーサイト(24V)
https://www.litegear.com/product/litecard-cinema-series-standard-density-hybrid-24v/
