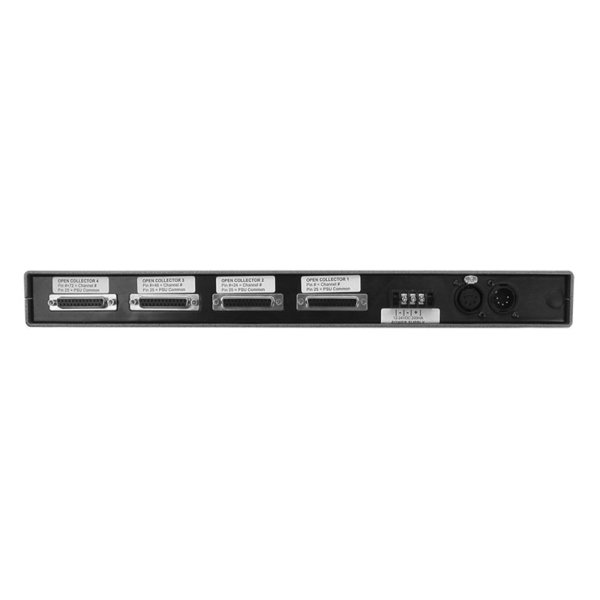

DFD DMXリレースイッチ x96 オープンコレクタ(ダグフリーナ） [新品 / DMX96OC]
商品詳細
Doug Fleenor Design 96 channel, open collector outputs, 0.1A per channel #DMX96OC /#DMX96OC-INTPS（ダグフリーナ）
DMX96OC（96 channel, open collector outputs, 0.1A per channel, low voltage power supply (by customer)）
The DMX96OC is designed to drive solenoids and relays for fountains or special effects, and is ideal for many other on/off loads. The product decodes 96 consecutive DMX512 channels to drive open-collector NPN outputs. Each of the outputs is capable of sinking up to 100mA (or more based on duty cycle). The DMX512 input is optically isolated from the outputs and is protected against miswiring up to 120 volts. We also make a single channel DIN rail mounted version model DININTR.
Available connector types: 5 pin XLR, 3 pin XLR, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosure.
■データシート
http://www.dfd.com/pdf/96oc-data.pdf
■メーカーサイト
http://www.dfd.com/96oc.html
DMX96OC（96 channel, open collector outputs, 0.1A per channel, low voltage power supply (by customer)）
The DMX96OC is designed to drive solenoids and relays for fountains or special effects, and is ideal for many other on/off loads. The product decodes 96 consecutive DMX512 channels to drive open-collector NPN outputs. Each of the outputs is capable of sinking up to 100mA (or more based on duty cycle). The DMX512 input is optically isolated from the outputs and is protected against miswiring up to 120 volts. We also make a single channel DIN rail mounted version model DININTR.
Available connector types: 5 pin XLR, 3 pin XLR, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosure.
■データシート
http://www.dfd.com/pdf/96oc-data.pdf
■メーカーサイト
http://www.dfd.com/96oc.html
