DFD DMXリレースイッチ 低電圧(ダグフリーナ） [新品]
商品詳細
Doug Fleenor Design Two relays, low voltage contact closure outputs, 5A switching capacity per closure #DMX2REL5A（ダグフリーナ）
Doug Fleenor Design Six relays, low voltage contact colsure outputs, 1A switching capacity per closure #DMX6REL1A（ダグフリーナ）
■バリエーション
・5Ax2リレー DMX2REL5A
・1Ax6リレー DMX6REL1A

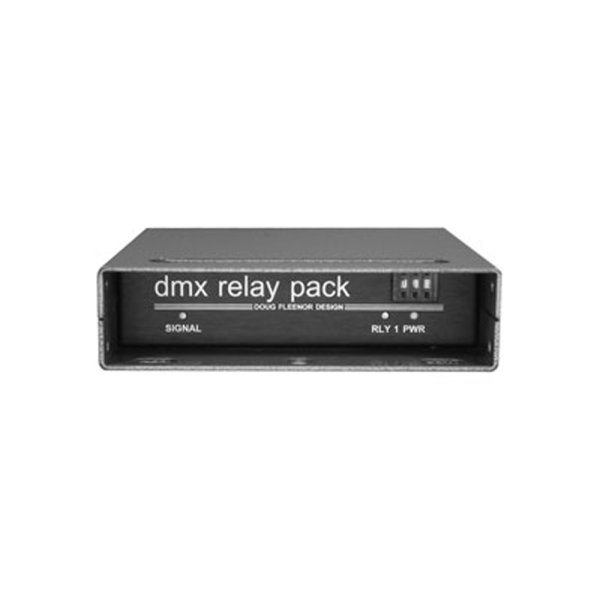

■5Ax2リレー
DMX512 control of low voltage switch closure devices (such as slide projectors and fog machines) is made possible with these low voltage DMX Relay Packs.
Doug Fleenor Design DMX Relay Packs use dry contact air-gap relays. These relays have advantages and disadvantages over the solid state relays found in dimmer packs. Solid state relays can be switched on and off rapidly with no wear, but tend to leak current even when in the off position. Air-gap relays do not leak current, but due to their mechanical design have a finite life span. Doug Fleenor Design relay packs should be used where a true-off condition is required (no voltage, no current). They should not be used in applications where they will be turned on and off rapidly (for example in chase lights).
A single channel OEM board is available model GPI and custom units are also possible.
Available connector types: 5 pin XLR, 3 pin XLR, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosure.
■仕様
・Input signal: 250 Kilobaud, 0.2 volts minimum, 12 volts maximum.
・Input circuit: EIA-485 receiver with two 100 ohm PTC self resetting fuses, four low capacitance transient suppression diodes.

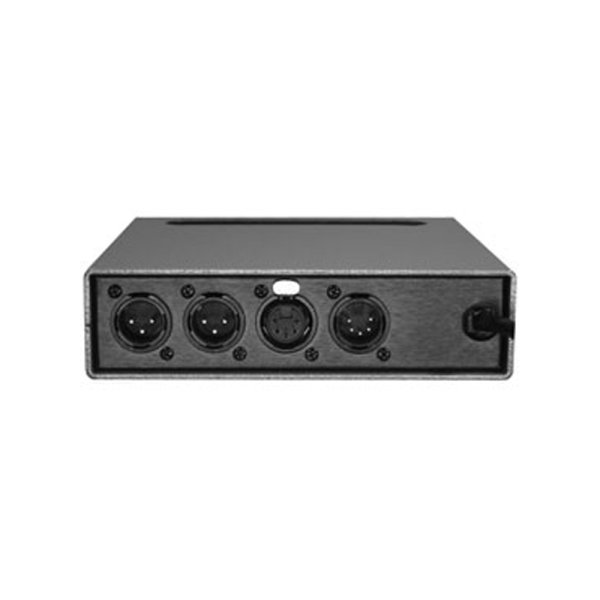

・Input connector: Gold plated 5 pin male XLR (Neutrik D-1 series) 3 pin optional.
・Input pass through: Gold plated 5 pin female (Neutrik D-1 series). All pins are wired through.
・Power Input: 120 volts, 50/60 hertz, 2 watts. (240 Volt Optional)
・Output Connection: (2) Gold Plated 3 pin male XLR (Neutrik D-1 series).
pin 1 common
pin 2 normally open
pin 3 normally closed
・Output Rating: 5A 30VDC
・Color: Top, bottom and sides: Silver hammer tone. Front and back: Black.
・Size and weight: 1.7”H × 6.5"D × 6.5"W, 2.7 pounds
(19" rack adapter available).
■データシート
http://www.dfd.com/pdf/2r5a-data.pdf
■マニュアル
http://www.dfd.com/pdf/2r5a-man.pdf
■メーカーサイト
http://www.dfd.com/2r5a.html
■1Ax6リレー
DMX512 control of low voltage switch closure devices (such as slide projectors and fog machines) is made possible with these low voltage DMX Relay Packs.
Doug Fleenor Design relay packs use dry contact air-gap relays. These relays have advantages and disadvantages over the solid state relays found in dimmer packs. Solid state relays can be switched on and off rapidly with no wear, but tend to leak current even when in the off position. Air-gap relays do not leak current, but due to their mechanical design have a finite life span. Doug Fleenor Design Relay Packs should be used where a true off condition is required (no voltage, no current). They should not be used in applications where they will be turned on and off rapidly (for example in chase lights).
Available connector types: 5 pin XLR, 3 pin XLR, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosure.
■仕様
・Input signal: 250 Kilobaud, 0.2 volts minimum, 12 volts maximum.
・Input circuit: EIA-485 receiver with two 100 ohm PTC self resetting fuses, four low capacitance transient suppression diodes.
・Input connector: Gold plated 5 pin male XLR (Neutrik D-1 series) 3 pin optional.
・Input pass through: Gold plated 5 pin female XLR (Neutrik D-1 series). All five pins are passed through.
・Power Input: 120 volts, 50/60 hertz, 12 watts. (240 Volt Optional)
・Output Connection: (2) Gold Plated 6 pin male XLR (Neutrik D-1 series). Outside Connector Inside Connector
・Pins 1/2 Relay 1 normally open Relay 4 normally open
・Pins 3/4 Relay 2 normally open Relay 5 normally open
・Pins 5/6 Relay 3 normally open Relay 6 normally open
・Output Rating: 1A 30VDC
・Color: Black front, back, top, and sides. Clear iridite aluminum bottom chassis.
・Size and weight: 9.0" deep, 1.6" high, 5.6" wide, 2.7 pounds
(19" rack adapter available)
■データシート
http://www.dfd.com/pdf/6r1a-data.pdf
■マニュアル
http://www.dfd.com/pdf/6r1a-man.pdf
■メーカーサイト
http://www.dfd.com/6r1a.html
