Artistic Licence sunDial quad(アーティスティックライセンス サンダイアル クワッド) [新品]
商品詳細

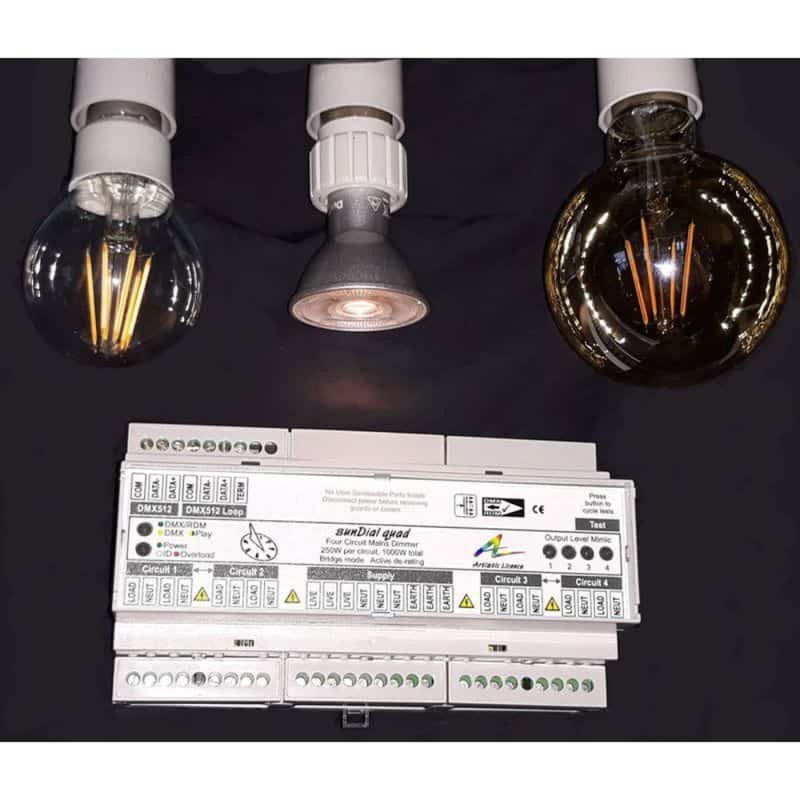

DMX512/RDM controlled 4-channel, mains powered trailing edge dimmer. 1kW total at 230 VAC. Suitable for dimmable LED replacement bulbs, CFL and incandescent sources. Xicato GalaXi wireless control additionally supported in premium model.
sunDial quad dmx 1k is a DMX/RDM controlled mains dimmer. Using trailing edge technology, the product provides smooth results with dimmable replacement LED, CFL or incandescent sources, with exceptional performance even at very low intensities. The product is rated at 250W per channel or 500W per pair of channels.
■特徴
・Trailing edge mains dimmer
・DMX512/RDM controlled
・Scene playback
・Programmable data loss mode
・Xicato GalaXi wireless control optional
・Compatible with dimmable LED replacement bulbs ? perfect for ‘dim-to-warm’ fixtures
・Also suitable for dimmable CFL and incandescent sources
・4 outputs, 250W per circuit
・Bridge mode provides 500W per pair of outputs
・Choice of 4 editable dimming curves, uploadable on a per output basis via DMX-Workshop
・LED indication for DMX/RDM/playback, power, identify, outputs and fault conditions
・Convection cooled with active derating
・RDM sensors for temperature, frequency and power
・Automatic heat and current management
・CAT III rated for installation directly into distribution boards
・Generator tolerant design ? stable operation in marine applications
・DIN Rail or surface mount
■仕様
・Operating Voltage: 230 VAC +/- 10%
・Outputs: 1kW total, 250W per channel or 500W per two-channel bridge
・Complies with BS EN 62368-1:2014+A11:2017
・Input Protocols: DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2010 ESTA Standard)
・Xicato GalaXi wireless control (optional product variant)
・IP Rating: Indoor use
・Dimensions: 90mm (h) x 159mm (w) x 73.5mm (d)
・Net Mass: 0.30 kg
・Manufacturer: Artistic Licence
・Country of Manufacture: UK
■sunDial quad wins 2019 GOLD PLASA Innovation Award動画
https://artisticlicence.com/WebSiteMaster/Video/6%20ARTISTIC%20LICENCE-WINNER%20sunDial.mp4?_=1
■Video: JTSE 2019動画
https://www.artisticlicence.com/WebSiteMaster/Video/sunDial-JTSE-2019.m4v?_=2
■ユーザーガイド
https://artisticlicence.com/WebSiteMaster/User%20Guides/sunDial%20quad%20user%20guide.pdf
■データシート
https://artisticlicence.com/WebSiteMaster/Datasheets/sunDial%20quad%20dmx%20&%20xgc%201k%20datasheet.pdf
■メーカーサイト
https://artisticlicence.com/product/sundial-quad/
