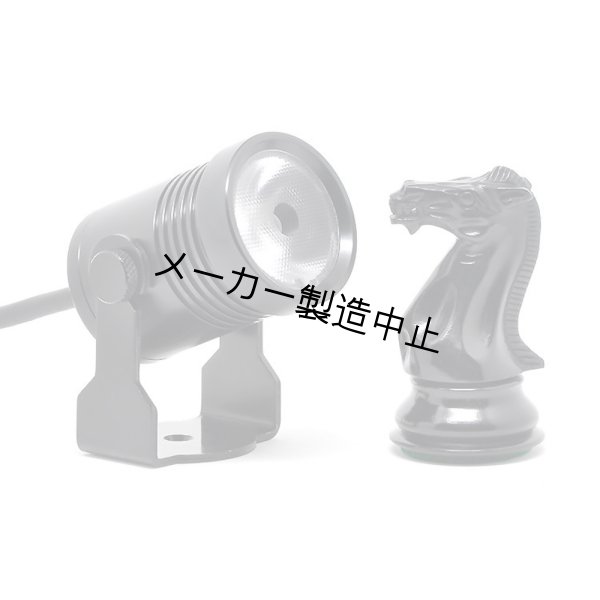

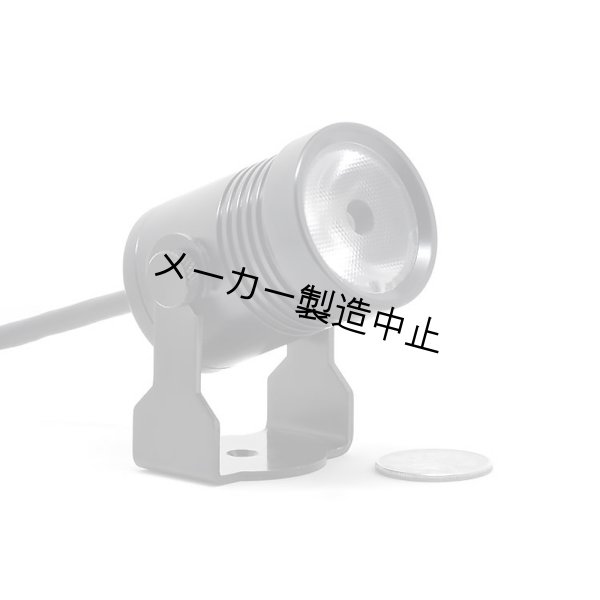

GANTOM Gantom DMX Spot(ガンタム) [新品]

商品詳細

The Gantom DMX Spot is a 4W color controllable LED spotlight for professional applications. Featuring a non-linear dimming curve, the Gantom DMX Spot can be dimmed with high precision even at the lowest intensity levels. Homogeneous optics smoothly blend the colors of the internal quad chip LED producing a clean projected field without the “halos” seen in many other color mixing fixtures. High frequency hybrid modulation allows the Gantom DMX Spot to be used in video
applications with minimal on-camera flickering. The Gantom DMX Spot can even be battery powered for portable applications, perfect for event lighting where access to power and signal is inconvenient. The Gantom DMX Spot is configured using our DMX Programmer app, available free for Apple and Android devices.

■特徴
・Homogeneous narrow beam optics
・Available in dynamic white and RGBW configurations
・Also available in wide beam angle configuration (see Gantom DMX Flood)
・Non-linear dimming curve for smooth fading without visible “steps” in output intensity
・14 bit dimming compressed into single 8 bit channel gives precision control without using extra channels
・Minimized on-camera flicker
・DMX address and colors configured via DMX Programmer app
・Less than 5W at full output
・Integrated DMX receiver
・Integrated quad channel constant current driver for consistent output
・Storm Series version for permanent outdoor installations also available

■アプリケーション
・Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
・Theater and stage accent lighting
・Mobile displays
・Floral centerpieces
・Retail spaces
・Architectural accent lighting
・General purpose accent lighting
・Props and animatronics
・Special effects lighting
・Temporary event lighting

■■PRODUCT DETAILS
■GANTOM DMX SPOT DYNAMIC WHITE
・SKU GT11
・Color Temperature 3000K-6500K
・DMX Channels 2
・Cable Options
 Power Connector: 2.1mm DC jack with screw terminal adapter standard
 Signal Connector: 3.5mmTRS jack with screw terminal adapter standard

■GANTOM DMX SPOT - DYNAMIC WHITE - PRO CABLE CONNECTOR
・SKU GP211
・Color Temperature 3000K-6500K
・DMX Channels 2
・Cable Options
 Power and Data integrated into a single sealed locking connector

■GANTOM DMX SPOT RGBW
・SKU GT12
・Color Temperature 6500K
・DMX Channels 4
・Cable Options
 Power Connector: 2.1mm DC jack with screw terminal adapter standard
 Signal Connector: 3.5mm TRS jack with screw terminal adapter standard

■GANTOM DMX SPOT - RGBW - PRO CABLE CONNECTOR
・SKU GP212
・Color Temperature 6500K
・DMX Channels 4
・Cable Options Power and Data integrated into a single sealed locking connector

■仕様
・Max Wattage 4.8W
・LED Wattage 4 x 1W
・Input Voltage 9-15VDC (12VDC nominal)
・Current Draw < 400mA @ 12VDC
・Power Supply For use with class 2 regulated switching power supply
・Beam Angle 19 degrees
・Field Angle 38 degrees
・Ingress Protection IP65
・LED Cree XLamp MC-E
・Certifications UL and CE
・Connector Options
 Standard Connectors
 2.1mm DC jack with screw terminal adapter for Power
 3.5mm (1/8") TRS jack with screw terminal adapter
・Gantom Pro Cable Connector waterproof locking connector which combines both power and DMX signal in a single cable

■DYNAMIC WHITE OUTPUT: COOL WHITE?
・Distance Center Beam Beam Width
 1.0m 1800lx (167.2fc) 0.3m
 2.0m 420lx (39.0fc) 0.7m
 3.0m 182lx (16.9fc) 1.0m

■DYNAMIC WHITE OUTPUT: WARM WHITE
・Distance Center Beam Beam Width
 1.0m 1400lx (130.1fc) 0.3m
 2.0m 330lx (30.7fc) 0.7m
 3.0m 144lx (13.4fc) 1.0m

■RGBW OUTPUT: ALL LEDS ON
・Distance Center Beam lux (fc) Beam Width
 1.0m 930lx (47.4fc) 0.3m
 2.0m 245lx (22.8fc) 0.7m
 3.0m 105lx (9.8fc) 1.0m

■RGBW DMX CHANNEL DESCRIPTIONS
・Channel Description
 Ch 1 Red Controls red channel
 Ch 2 Green Controls green channel
 Ch 3 Blue Controls blue channel
 Ch 4 White Controls white channel

■DYNAMIC WHITE DMX CHANNEL DESCRIPTIONS
・Channel Description
 Ch 1 Cool White Controls cool white channel
 Ch 2 Warm White Controls warm white channel

■データシート
http://www.gantom.com/wp-content/uploads/2018/05/Gantom_DMX_2018.pdf

■ユーザーガイド
http://www.gantom.com/wp-content/uploads/2018/07/Gantom-DMX-User-Guide-1.3.pdf

■メーカーサイト
https://www.gantom.com/lighting-fixtures/gantom-dmx-spot/
