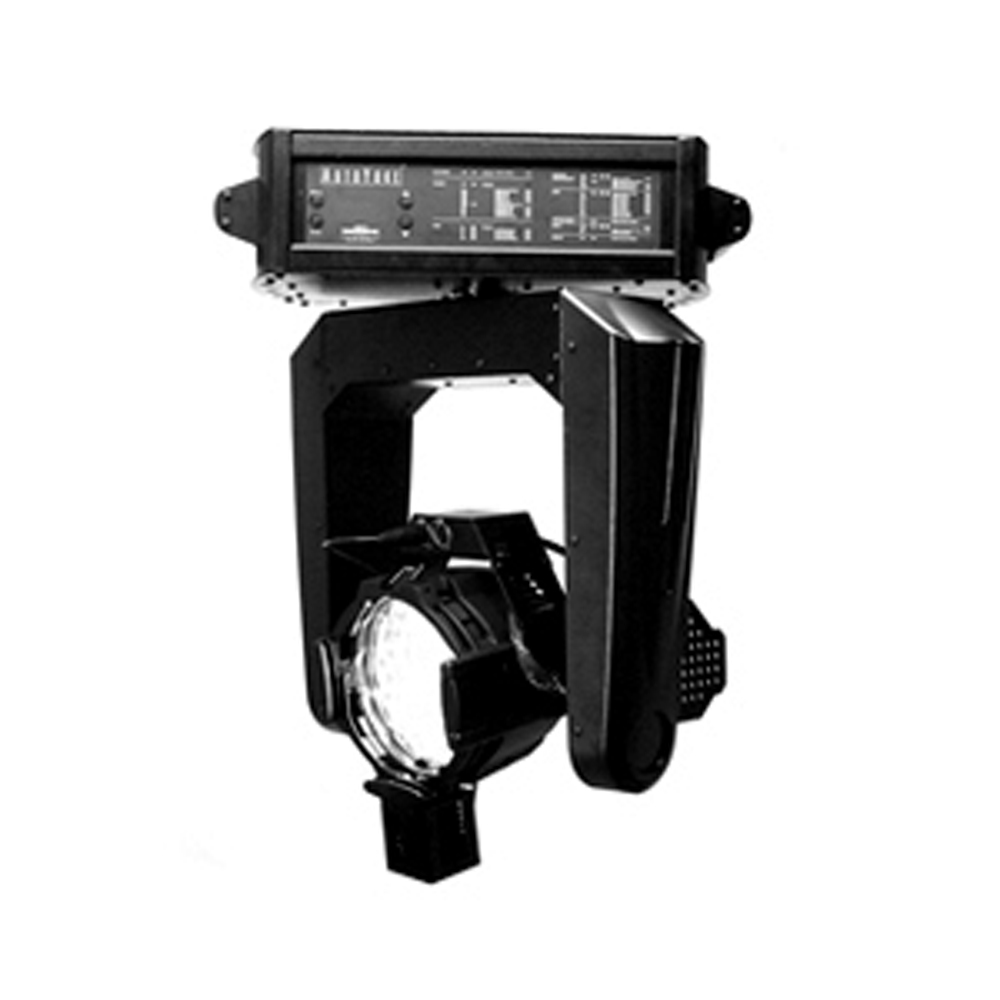

City Theatrical AutoYoke [新品]

商品詳細

The First Automated Lighting Solution Designed for Theatrical Use

The AutoYoke is the first affordable solution for converting theatrical lighting fixtures into full-featured moving lights. Smooth, accurate and quiet, the AutoYoke's DMX control allows you to pan and tilt the unit, as well as drive color scrollers. With the AutoYoke for Ellipsoidal, the optional DMX controlled AutoIris and AutoFocus also allow you to manipulate the size and sharpness of the beam of light. With the AutoYoke for Source Four PARNel, the motorized variable beamspread allows you to control the width of the beam of light.

The First Automated Lighting Solution Designed for ETC's Source Four LED

The AutoYoke Source Four LED combines the quiet operation, accuracy, reliability, and professional quality of the AutoYoke, with the brightness, built in color changing, energy efficiency, and long life of the Source Four LED, and is the solution for converting ETC’s state of the art Source Four LED into a full featured moving light. Smooth, precise, and quiet, the AutoYoke Source Four LED’s DMX control allows you to pan and tilt the unit, as well as adjust the iris, and change the focus (sharpness of the beam). Since Source Four LED lighting fixtures have color changing capabilities, there is no need for color scrollers, and no dimmer is required.

■概要
・Supports state of the art ETC Source Four LED fixtures
・Creates a low-cost moving LED lighting fixture
・Designed for theatrical and studio applications
・Fully functional onboard user interface
・8 or 16 bit DMX control
・Accuracy of movement less than 0.1°
・Lightweight
・Quiet operation
・Weight 11.7kg

■■詳細
■AutoYoke Source Four LED
・Supports state of the art ETC Source Four LED fixtures
・Creates a low-cost moving LED lighting fixture
・Designed for theatrical and studio applications
・Fully functional onboard user interface
・8 or 16 bit DMX control
・Accuracy of movement less than 0.1°
・Lightweight
・Quiet operation

■AutoYoke
・Creates a low-cost incandescent moving light
・Designed for theatrical applications
・Fully functional onboard user interface
・8 or 16 bit DMX control
・Accuracy of movement less than 0.1°
・Lightweight
・No cooling fans
・User selectable travel limits and invert feature on all AutoYoke attributes
・Supports Wybron Forerunner, Coloram II, CXI; ChromaQ Broadway, and Rainbow Pro Series Color Scrollers via AutoYoke power supply

■■仕様
■AutoYoke Source Four LED
・RANGE
 Pan Range: 360 degrees
 tilt Range: 270 degrees
・SPEED
 Pan Speed (360°): 7.5 seconds
 Tilt Speed (270°): 4.0 seconds
・ELECTRICAL
 Voltage: 100-240 VAC (autosensing)
 Current: 1.3A @50/60Hz
 Wattage: 40W
・Protocol
 USITT DMX 512 Required channels: 7 channels (16 Bit)、5 Channels (8 Bit)

■AutoYoke for Ellipsoidal
・RANGE
 Pan Range: 360 degrees
 tilt Range: 270 degrees
・SPEED
 Pan Speed (360°): 7.5 seconds
 Tilt Speed (270°): 4.0 seconds
・ELECTRICAL
 Voltage: 100-240 VAC (autosensing)
 Current: 1.3A @50/60Hz
 Wattage: 40W
・Protocol
 USITT DMX 512 Required channels: 7 channels (16 Bit)、5 Channels (8 Bit)

■Ellipsoidal AutoYoke for PARnel
・RANGE
 Pan Range: 360 degrees
 tilt Range: 270 degrees
・SPEED
 Pan Speed (360°): 4.0 seconds
 Tilt Speed (270°): 3.0 seconds
・ELECTRICAL
 Voltage: 100-240 VAC (autosensing)
 Current: 1.3A @50/60Hz
 Wattage: 40W
・Protocol
 USITT DMX 512 Required channels: 7 channels (16 Bit)、5 Channels (8 Bit)

■スペックシート
・AutoYoke Source Four LED
 http://www.citytheatrical.com/docs/default-source/pdf-catalog/autoyoke-s4-led-specifications-sheet.pdf
・AutoYoke for S4 Ellipsoidalスペックシート
 http://www.citytheatrical.com/docs/default-source/pdfs/autoyoke-for-source-four-specifications.pdf
・AutoYoke for Strand SL Ellipsoidalスペックシート
 http://www.citytheatrical.com/docs/default-source/pdfs/autoyoke-for-strand-sl-specifications.pdf

■マニュアル
・AutoYoke Source 4 LED
 http://www.citytheatrical.com/docs/default-source/pdf-catalog/autoyoke-source-four-led-manual-r1.pdf
・AutoYoke for ETC S4 Ellipsoidal マニュアル
 http://www.citytheatrical.com/pdfs/AutoYoke_Manual1-6.pdf
・AutoYoke for ETC S4 PARNel マニュアル
 http://www.citytheatrical.com/pdfs/PARNelManual.pdf
