The Light Source Mega-Drop Down 36"（ライトソースメガドロップダウン） [新品]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

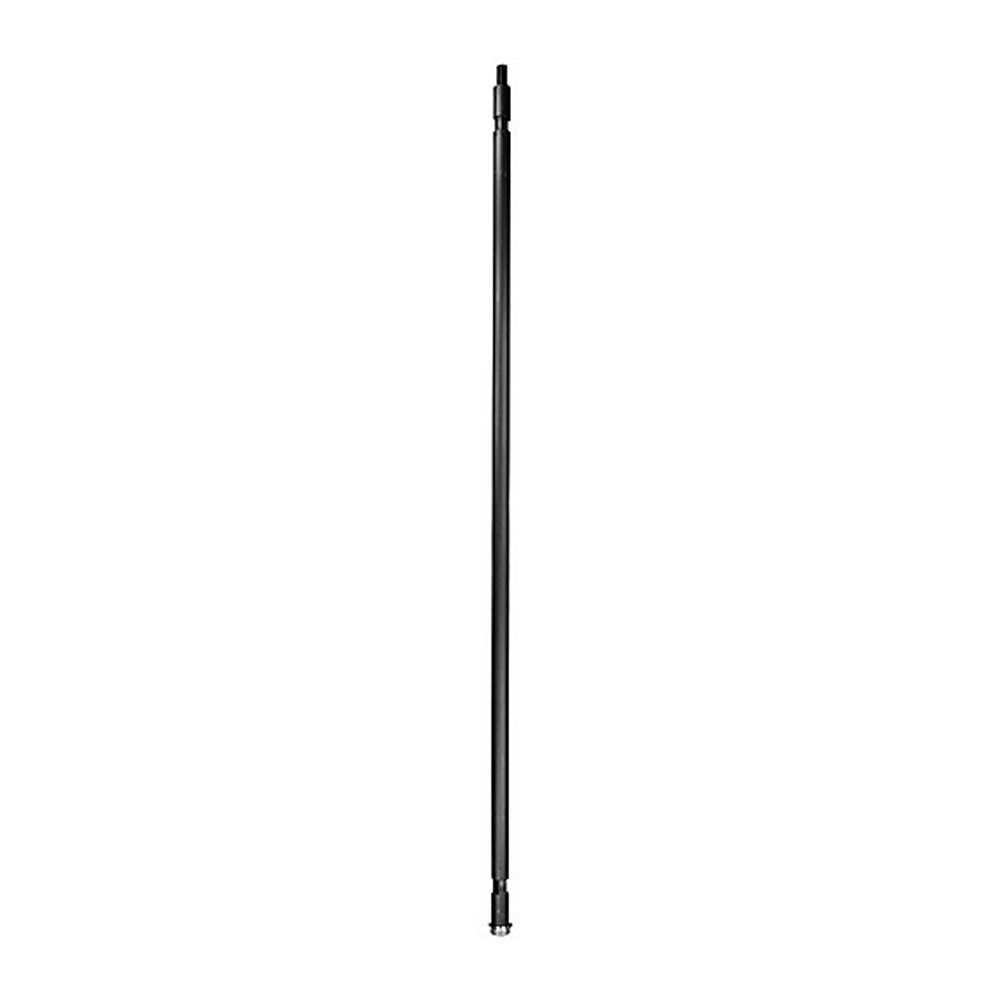

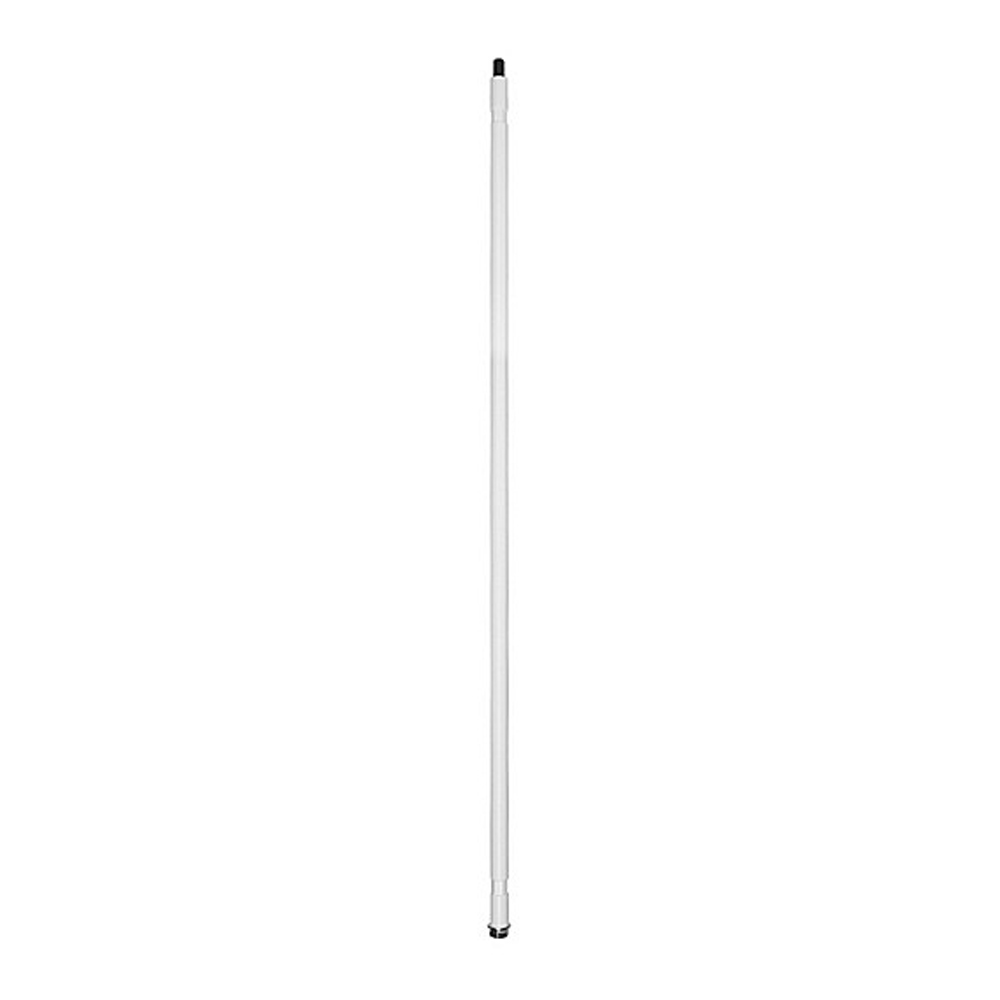

The Mega-Drop Down is a quick and inexpensive way to place a light fixture below the pipe or grid. It now has new wrench flats for easy adjustments.

The Mega-Drop Down is made from solid 3/4" diameter 6061 T-6 aircraft grade aluminum and is made in 6", 9", 12", 18" 24", and 36" lengths. The Mega-Drop Down has a 1/2-13 tpi x 2" steel stud to fasten into a Mega-Clamp, or similar clamp that has 1/2"-13 female threads. The lower end of the Mega-Drop Down has 1/2-13 female threads to bolt the light fixture’s yoke to the drop down with a 1/2-13 × 1″ grade 5 zinc plated bolt and Belleville washer. When assembling the Drop down to the Mega-Clamp, use Loctite Red or other permanent thread-locking compound to make the connection secure.

■メーカーサイト
https://www.thelightsource.com/products/mega-drop-down-45

■データシート
https://www.thelightsource.com/products/spec_sheet_pdf/mega-drop-down-45.pdf
